For California

TROUBLE DIAGNOSIS


CONSULT-III Function (ENGINE)

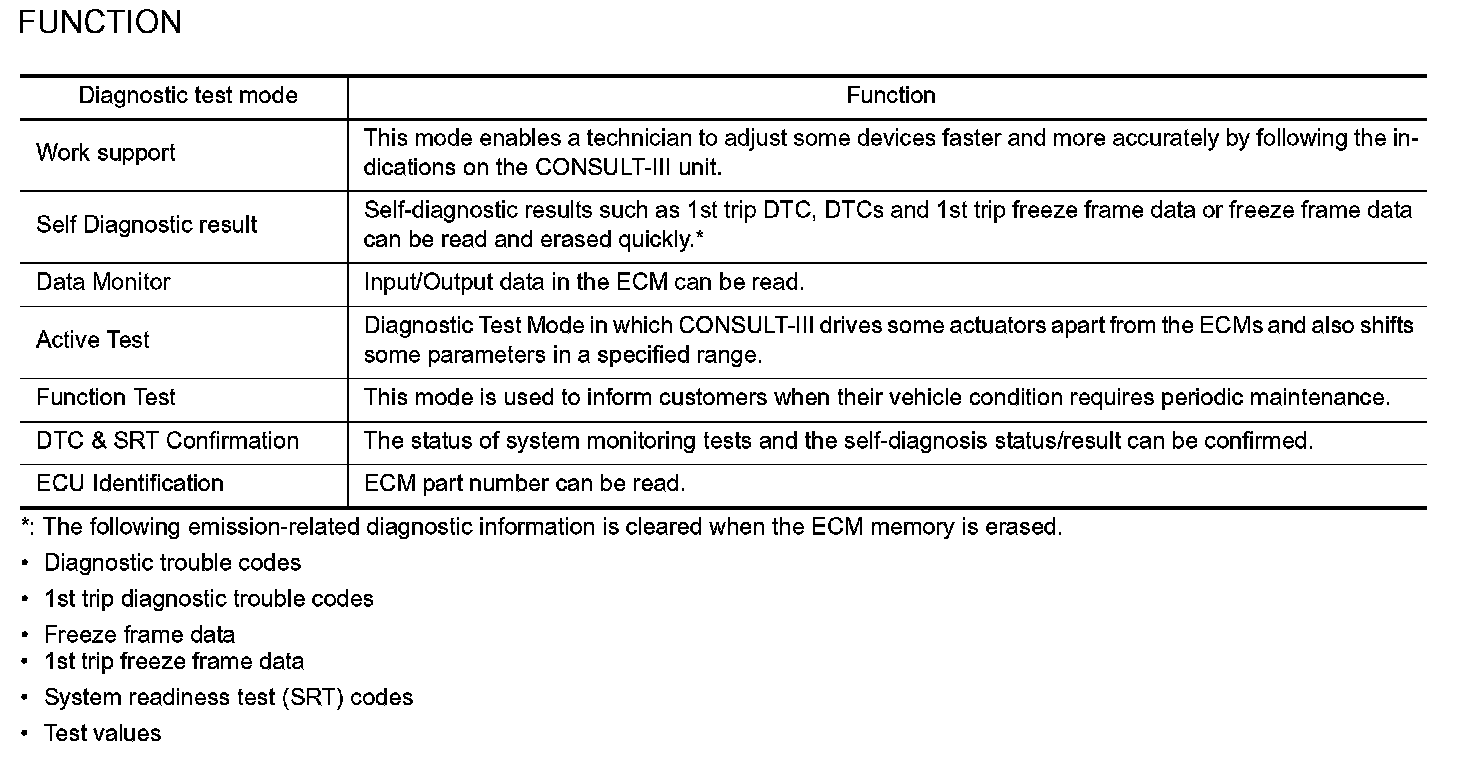

FUNCTION

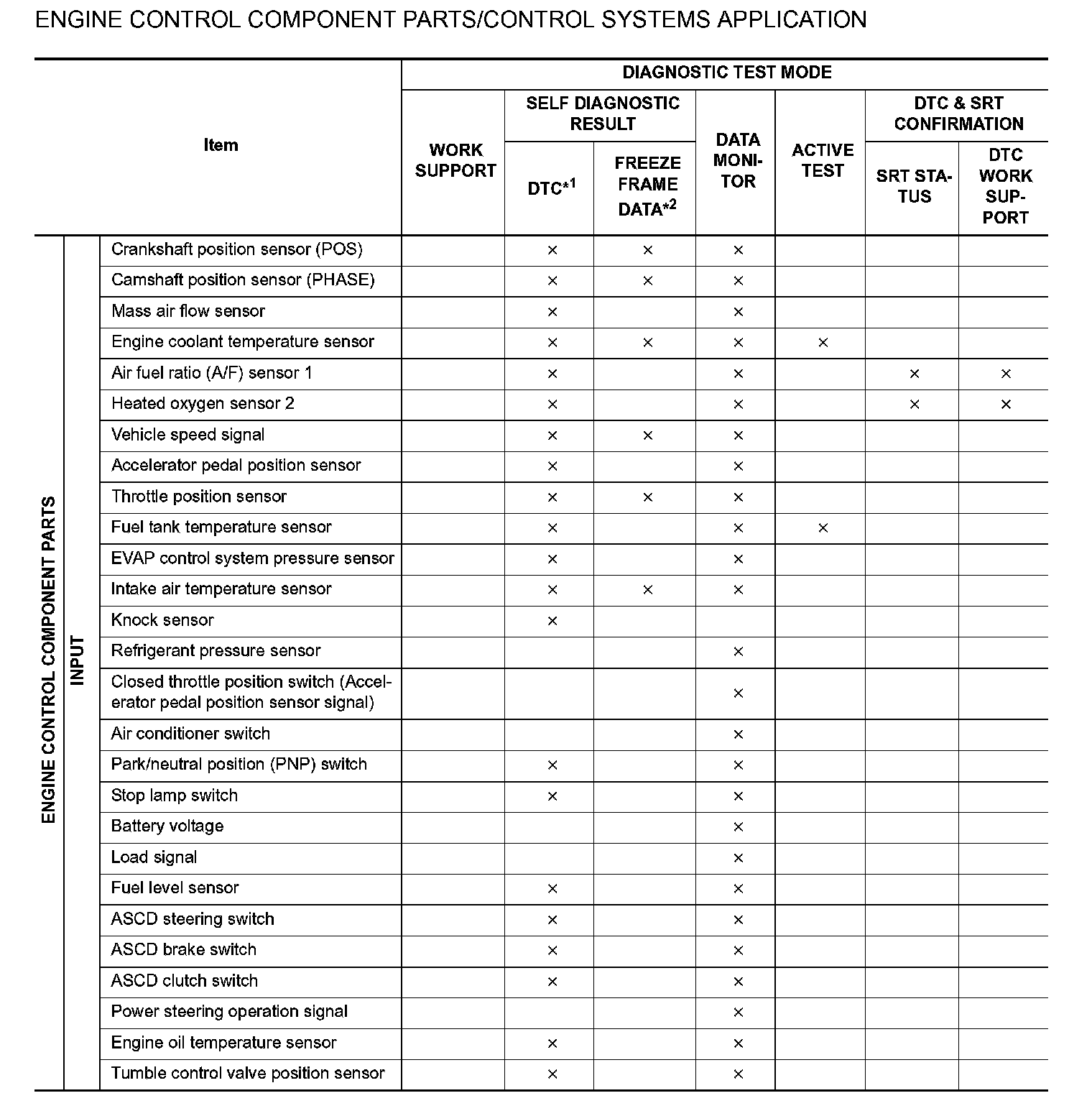

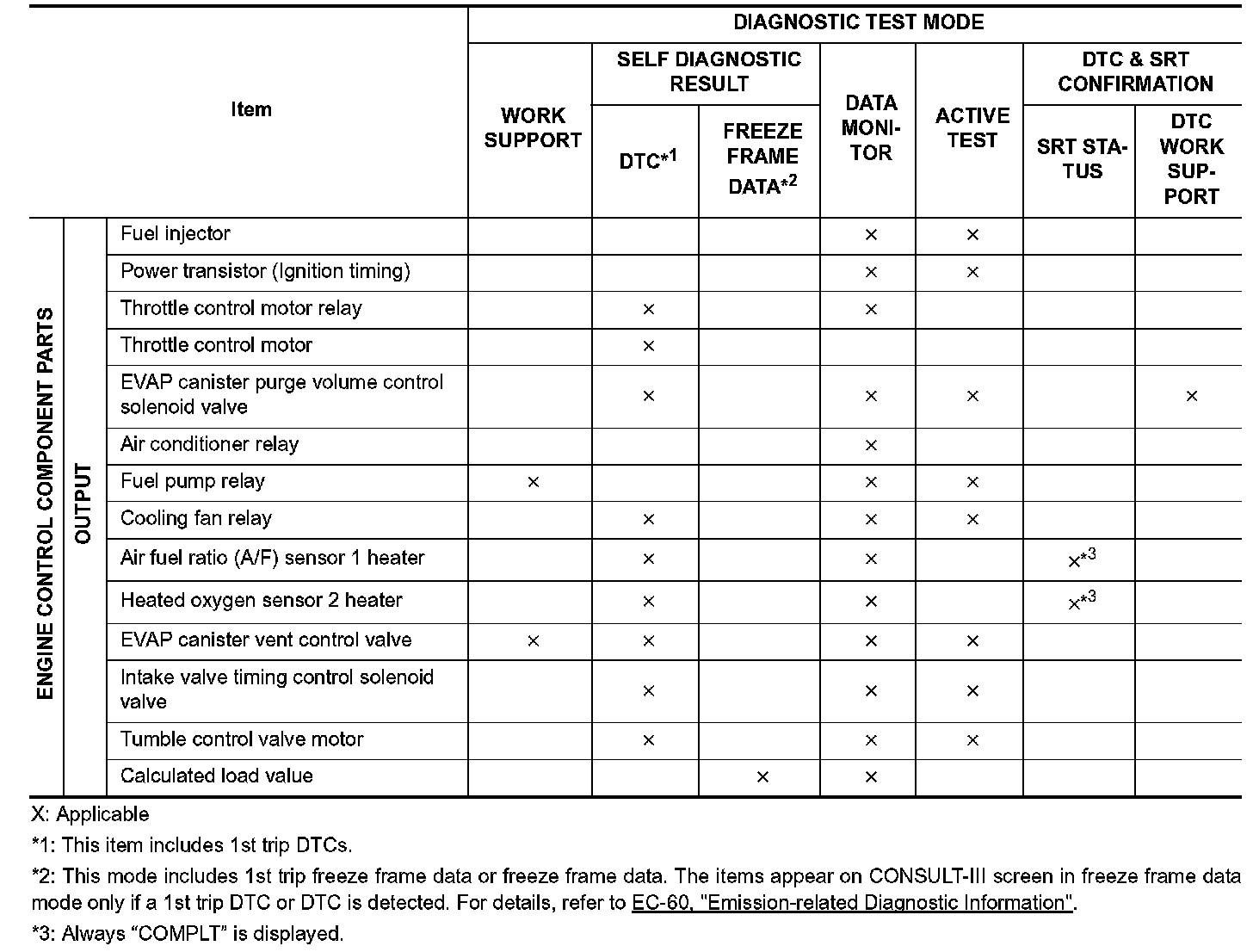

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION











INSPECTION PROCEDURE
Refer to "CONSULT-III Software Operation Manual" for more information.

WORK SUPPORT MODE

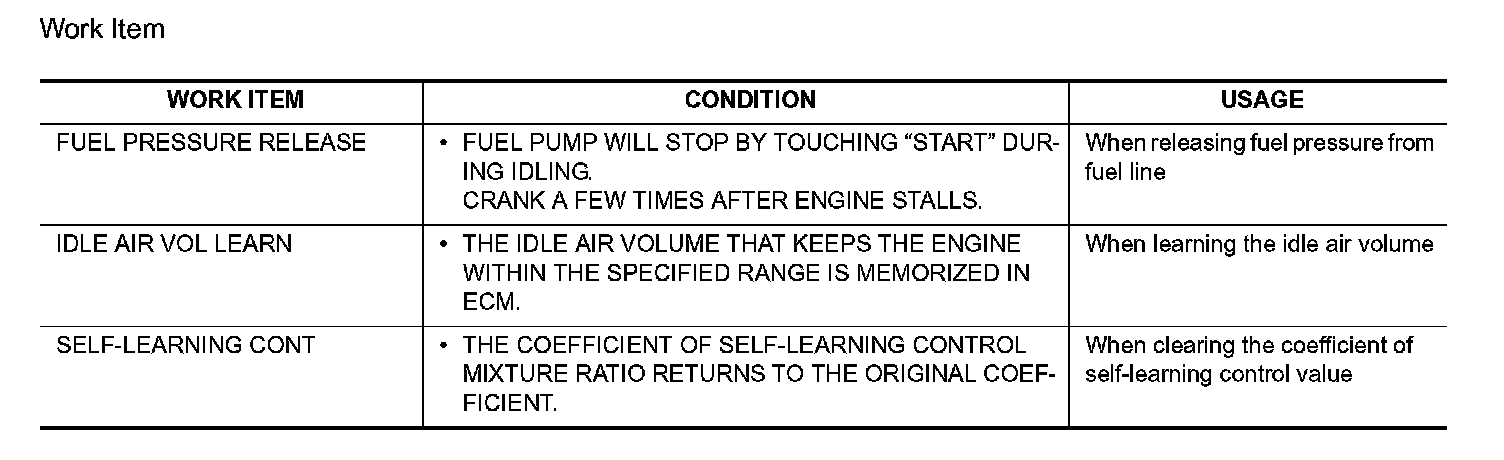

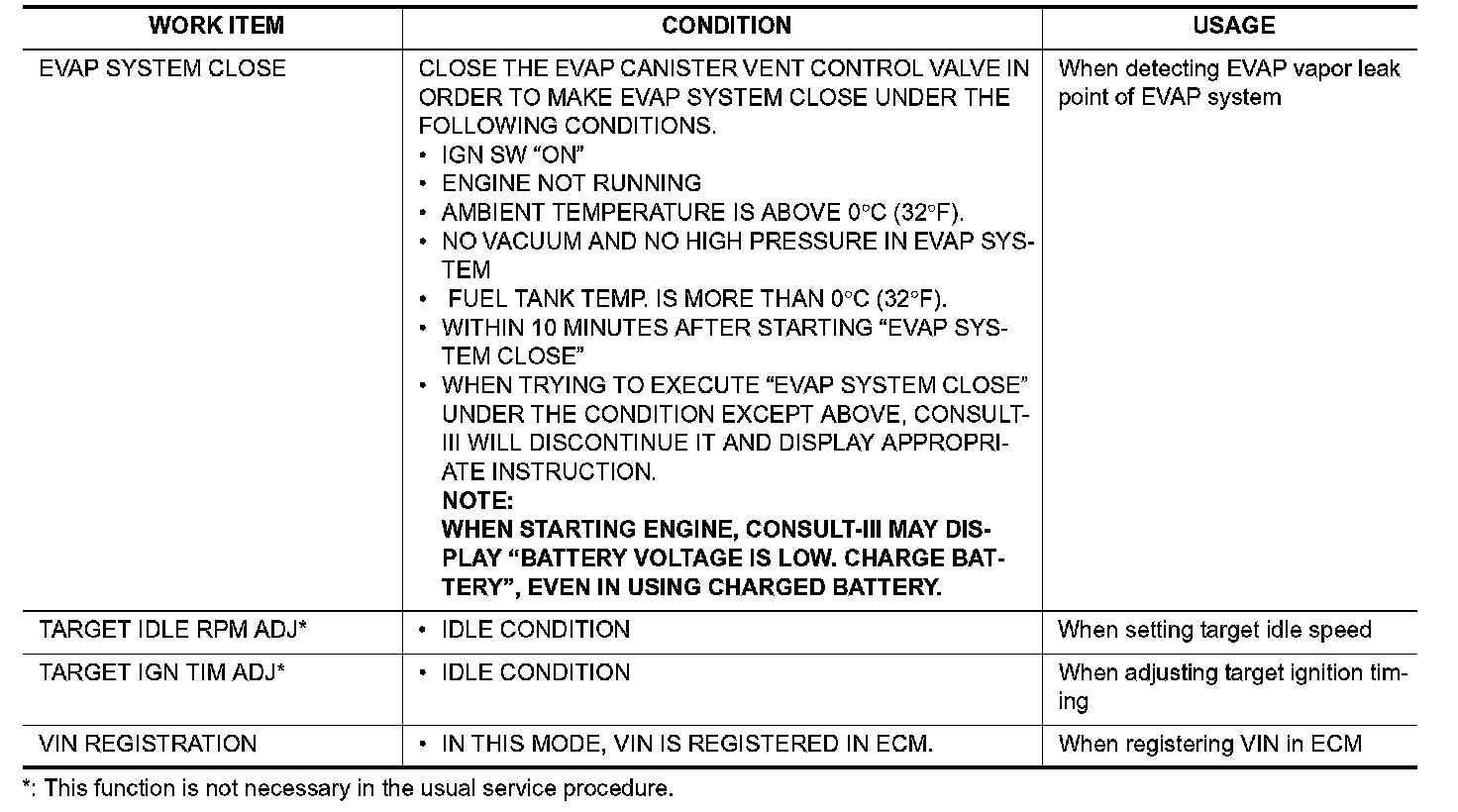

Work Item











SELF-DIAG RESULTS MODE

Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to For California.

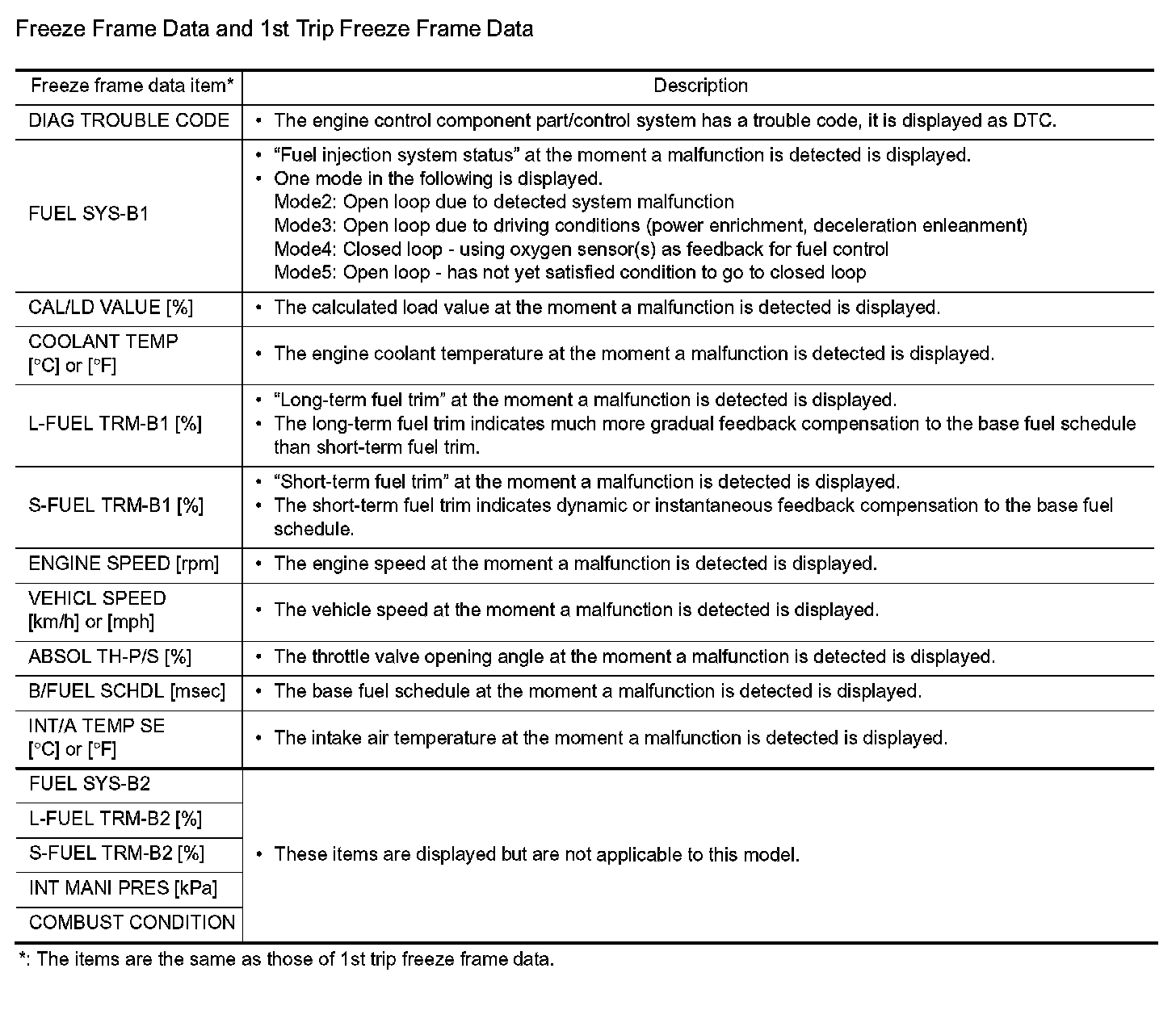

Freeze Frame Data and 1st Trip Freeze Frame Data






DATA MONITOR MODE

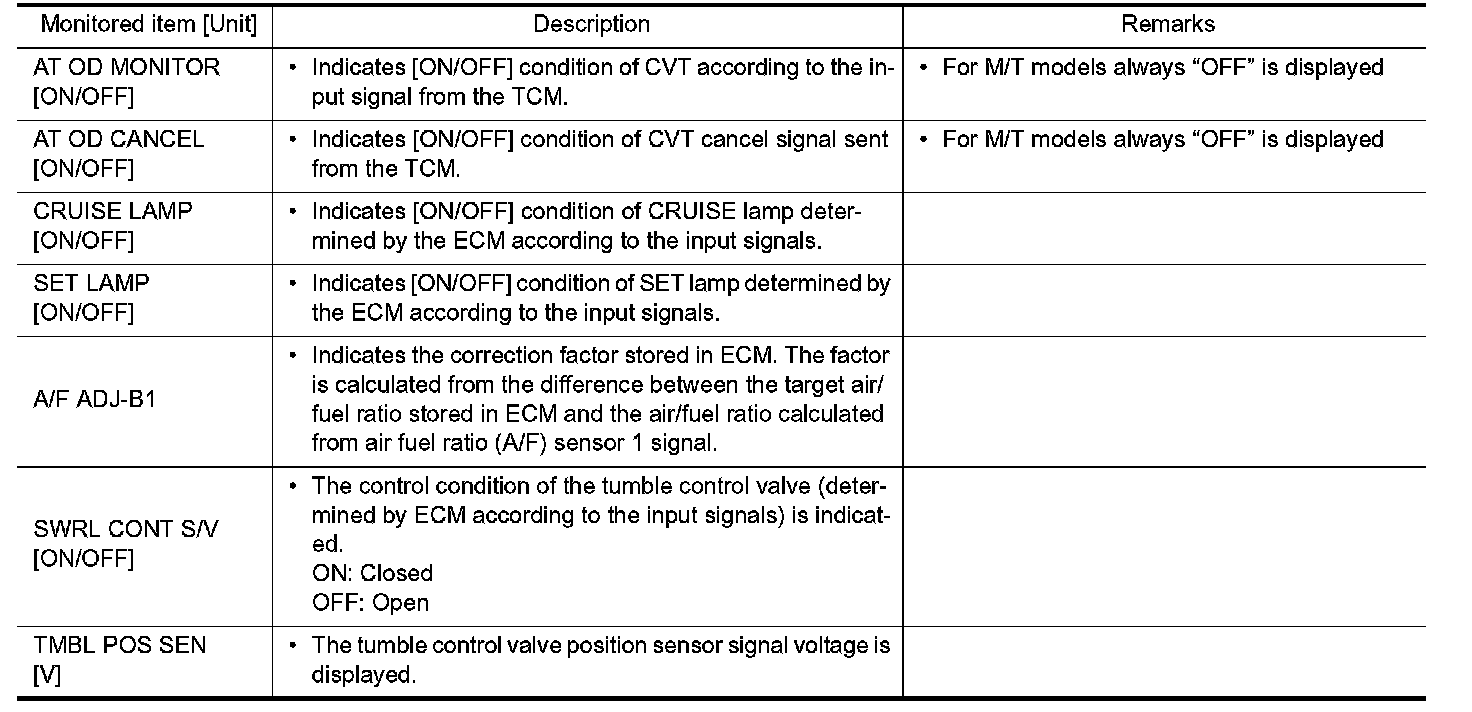

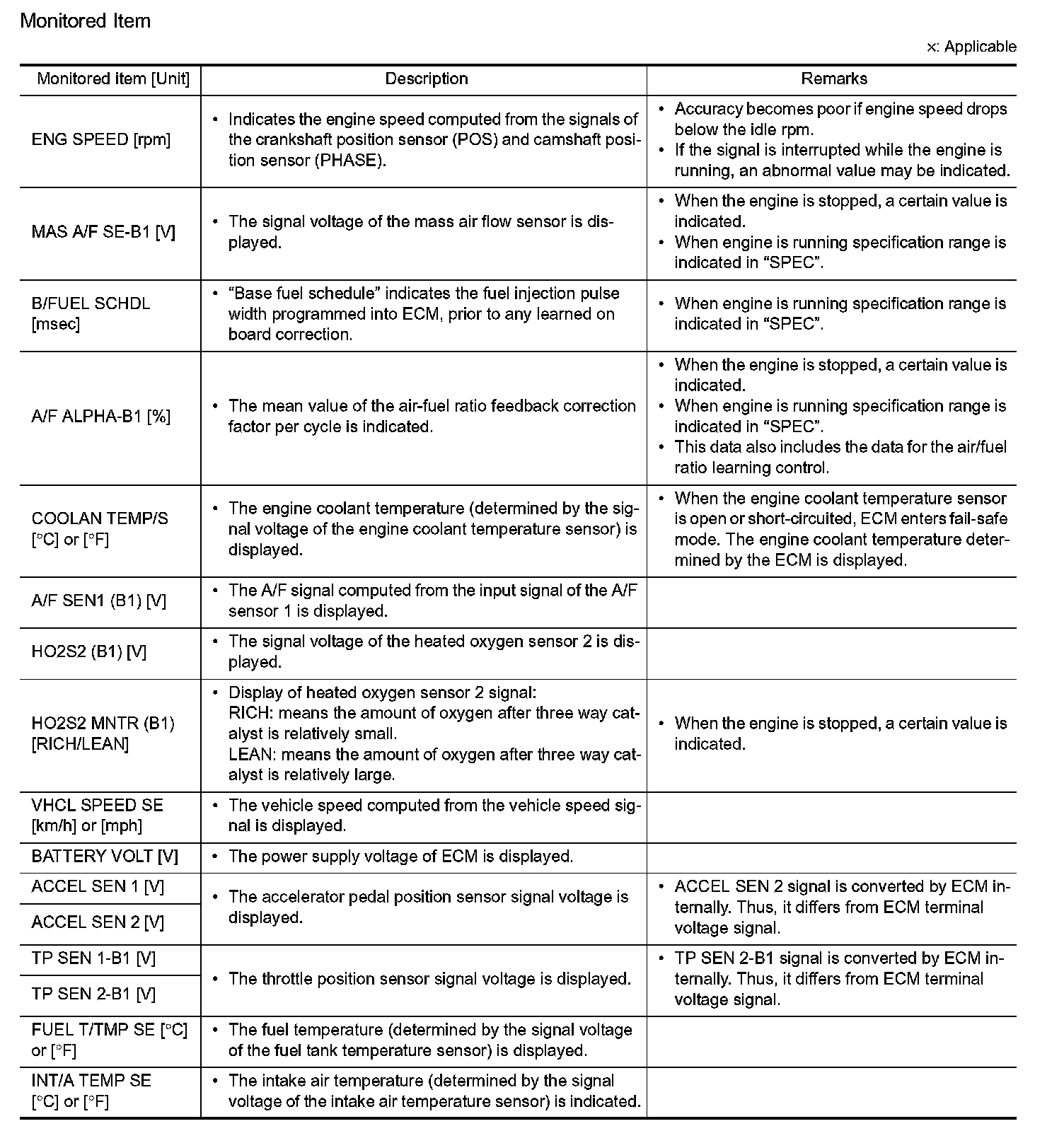

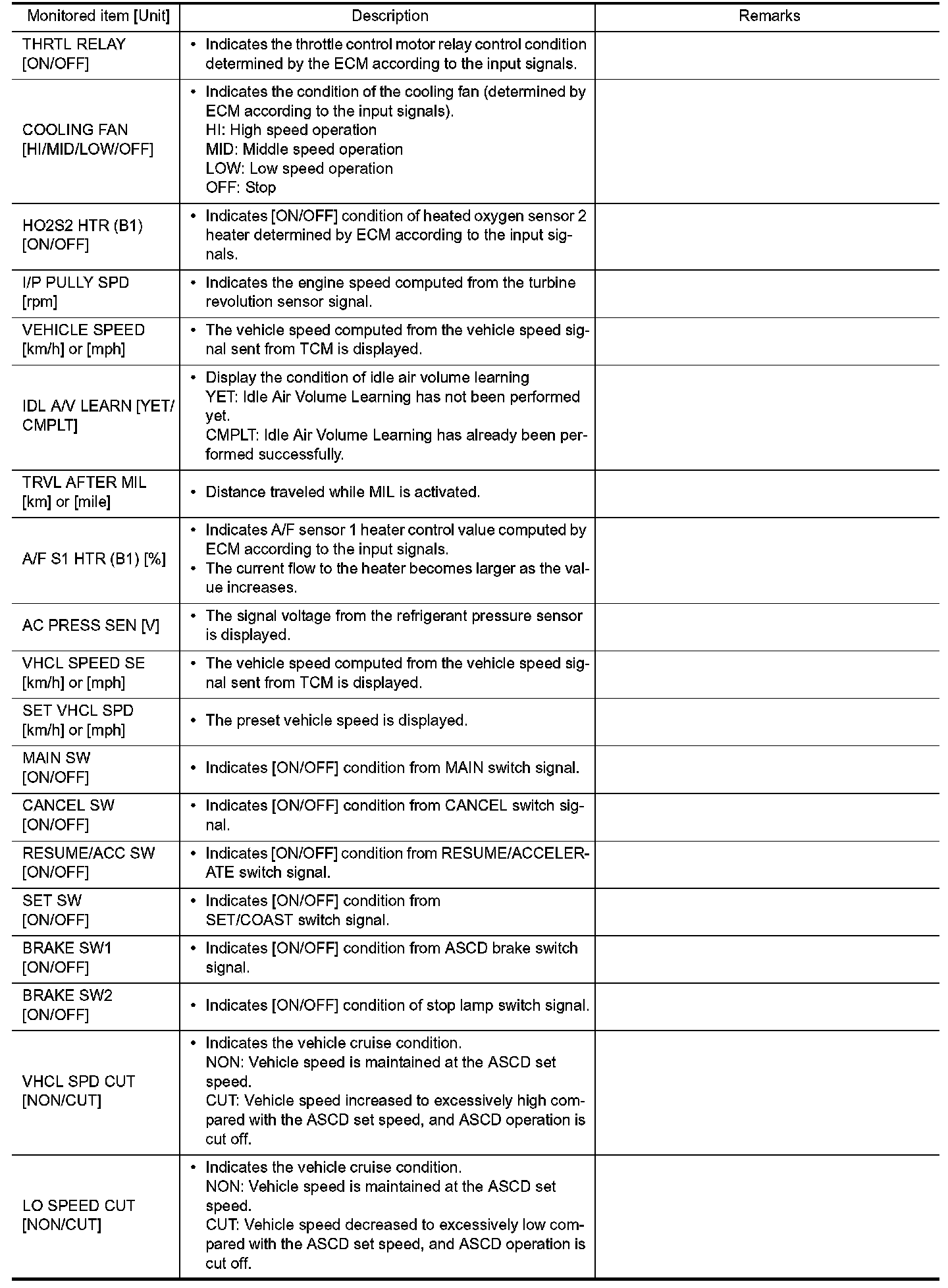

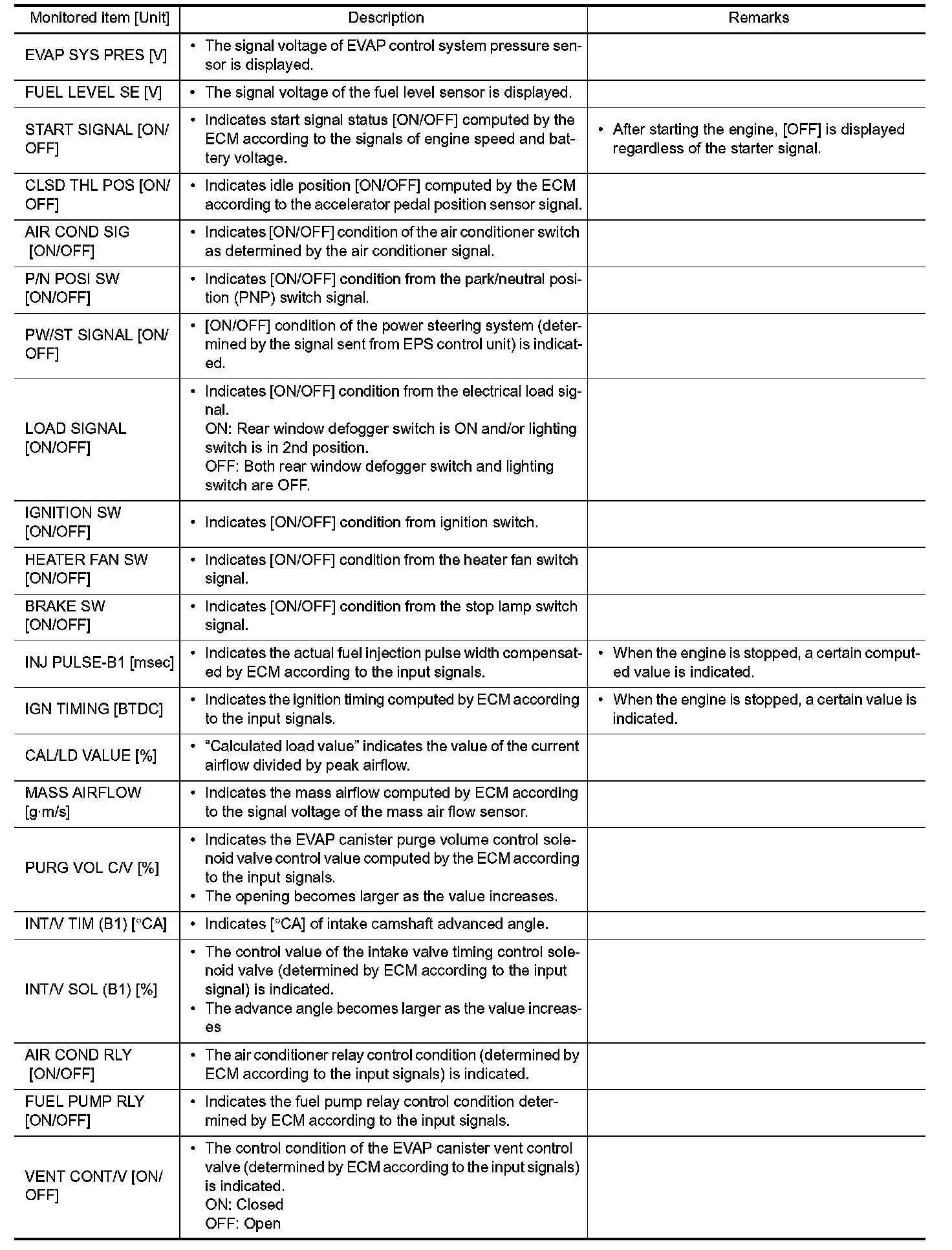

Monitored Item





















NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.


ACTIVE TEST MODE

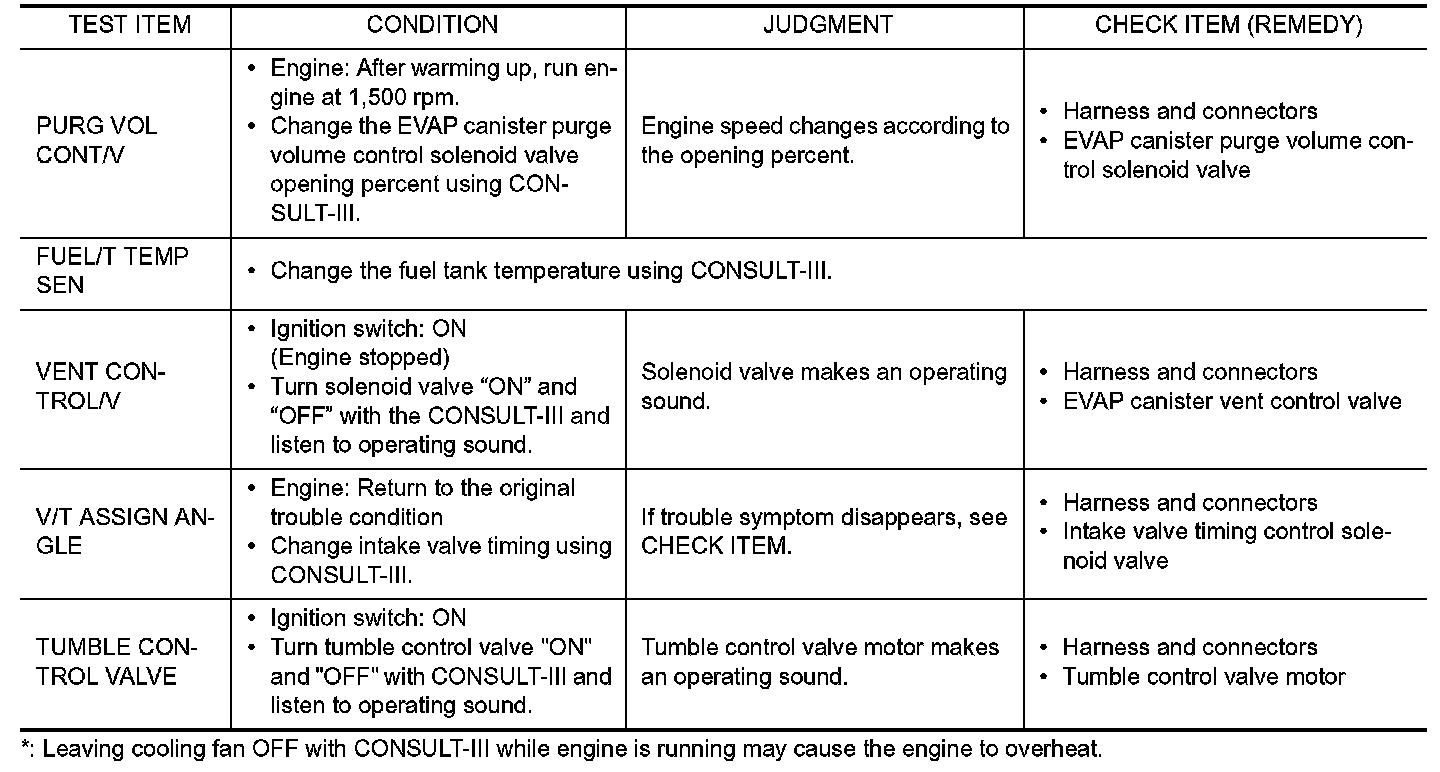

Test Item











DTC and SRT CONFIRMATION MODE

SRT STATUS Mode
For details, refer to For California.

SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.

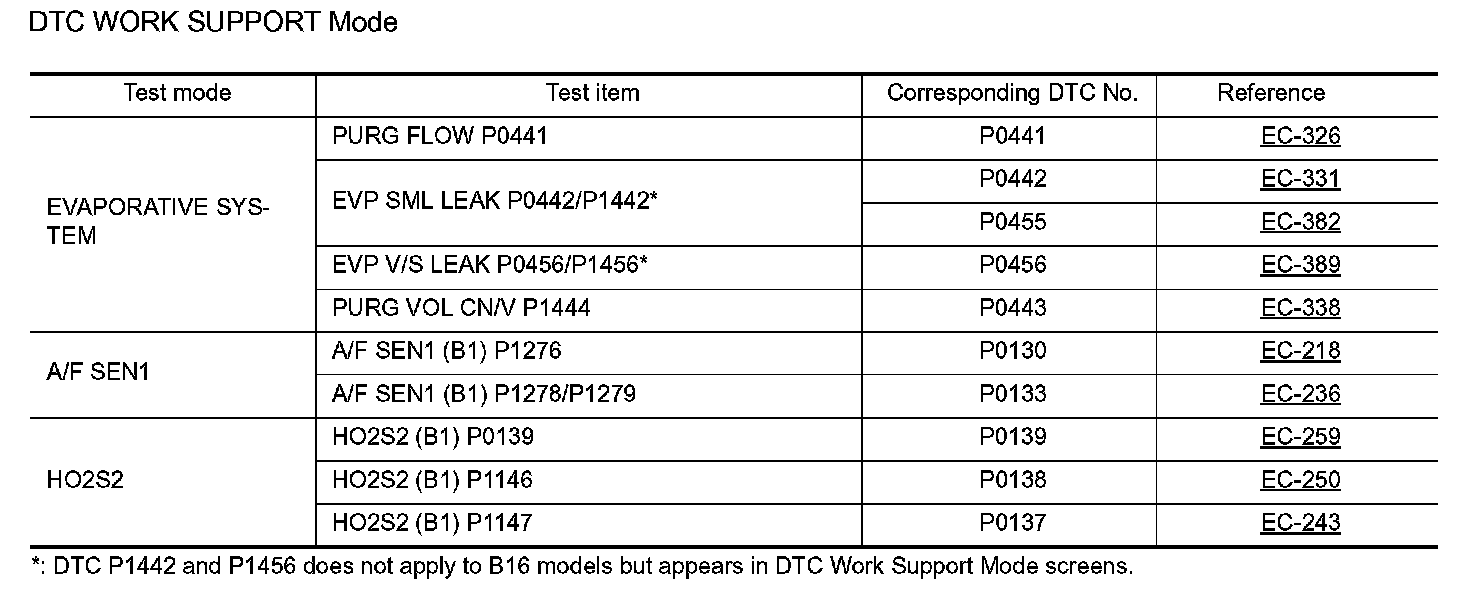

DTC WORK SUPPORT Mode
