Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> B, C, P, U Trouble Code Descriptions >> Transmission Control System >> DTC No. Index

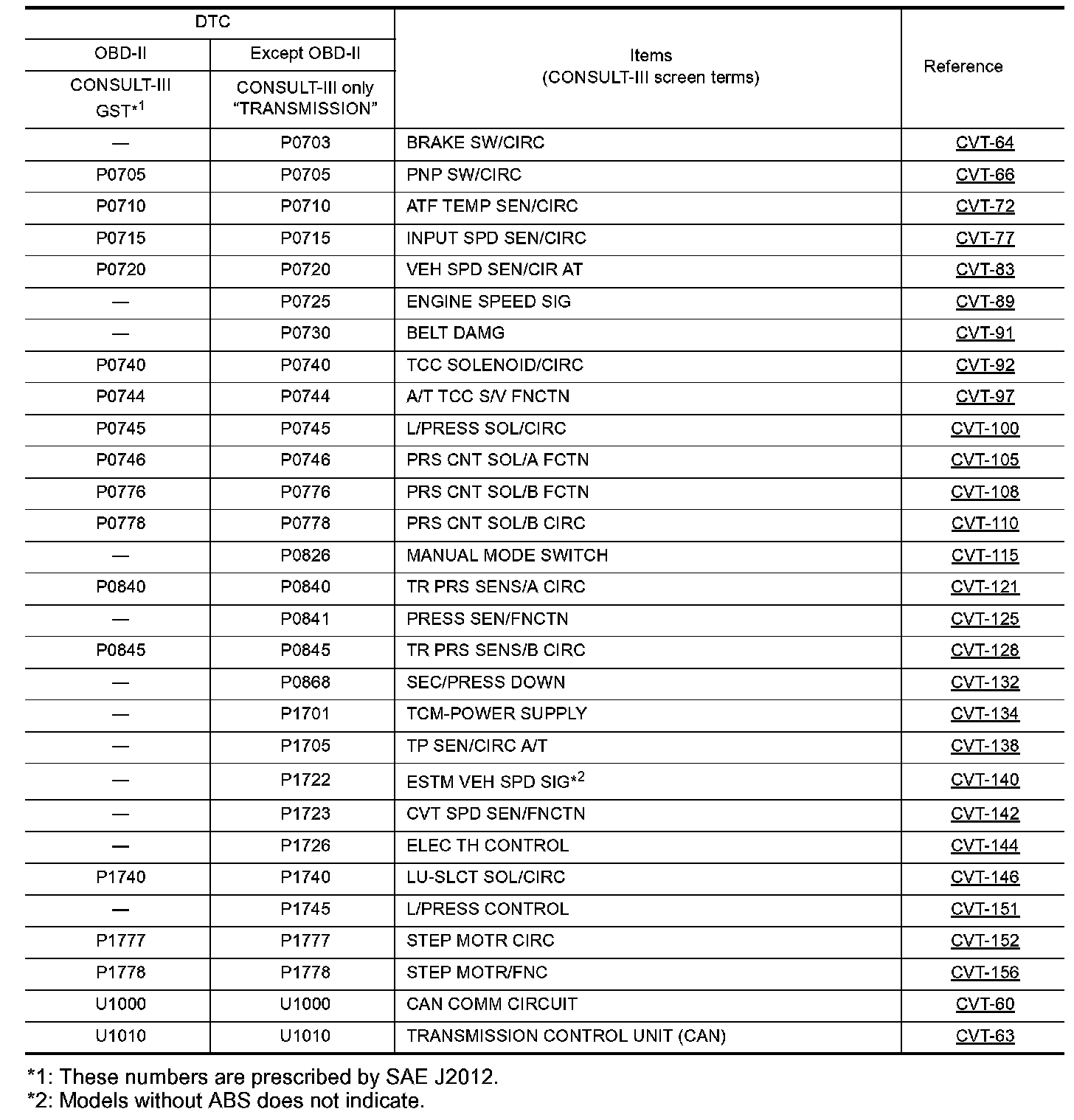

DTC No. Index

DTC No. Index

NOTE: If DTC U1000 CAN COMM CIRCUIT is displayed with other DTCs, first perform the trouble diagnosis for DTC U1000 CAN COMMUNICATION LINE. Refer to CVT-60. Transmission Control System

P0703-P1778 & U1000-U1010:
