Symptom Chart

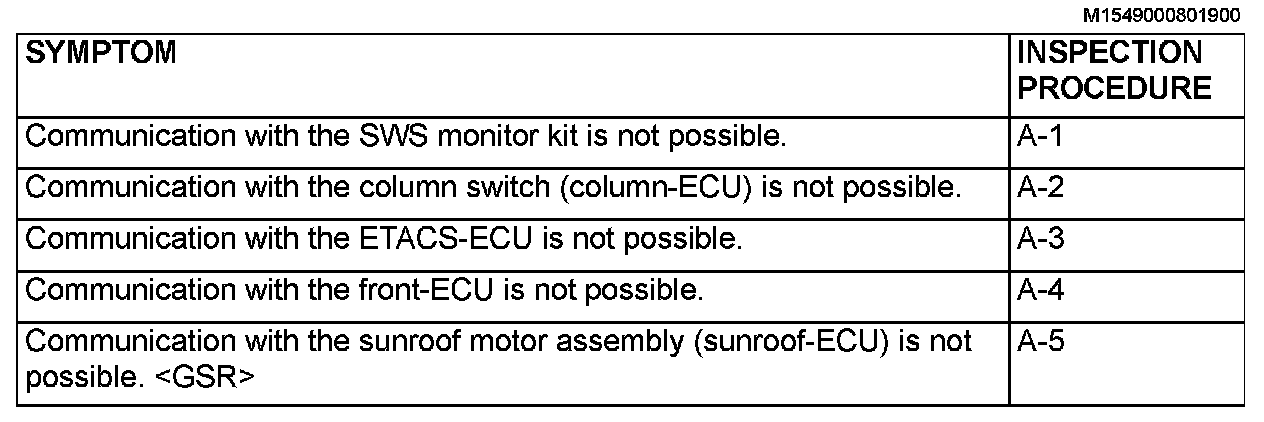

ECU Communication System:

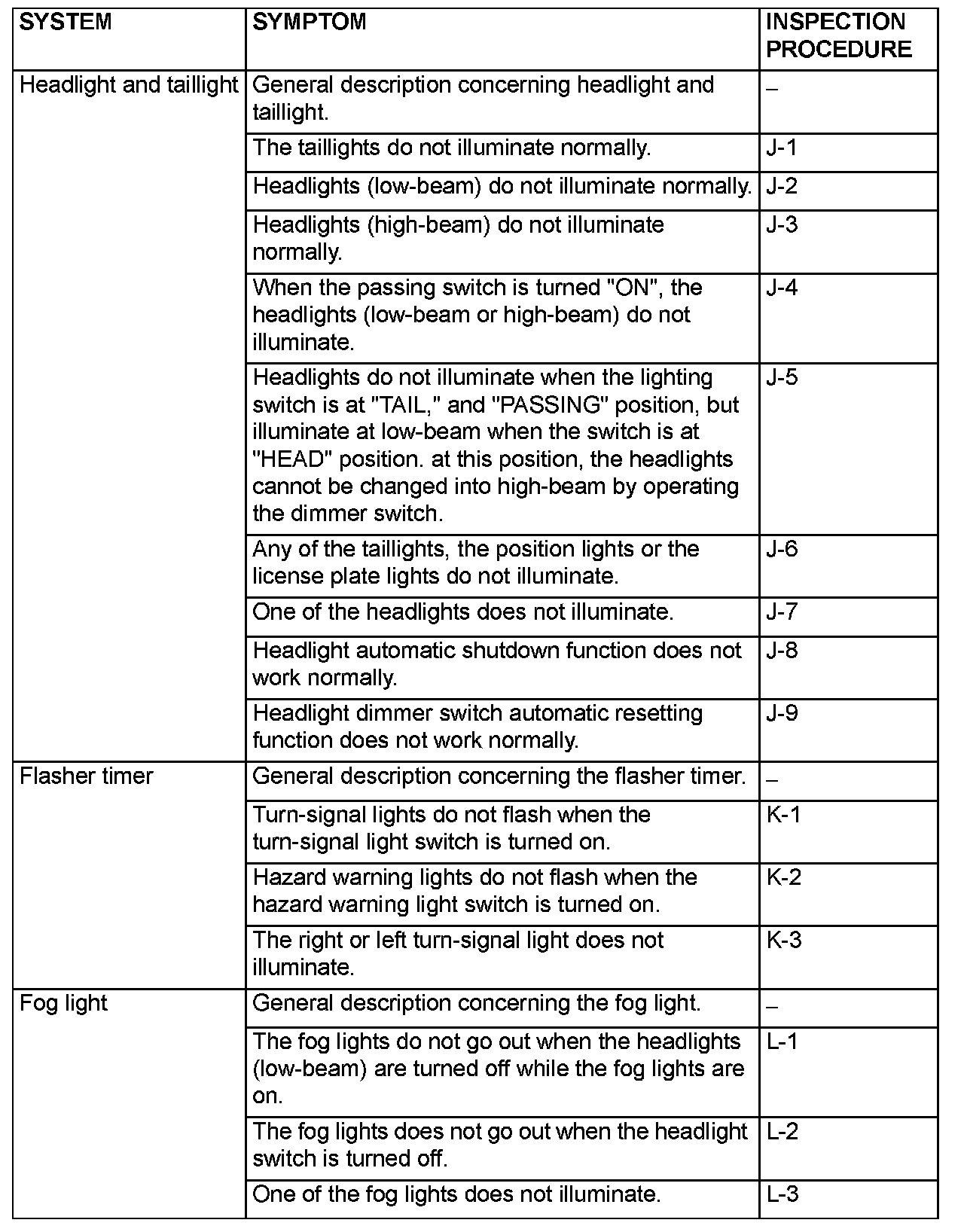

Function System Part 1:

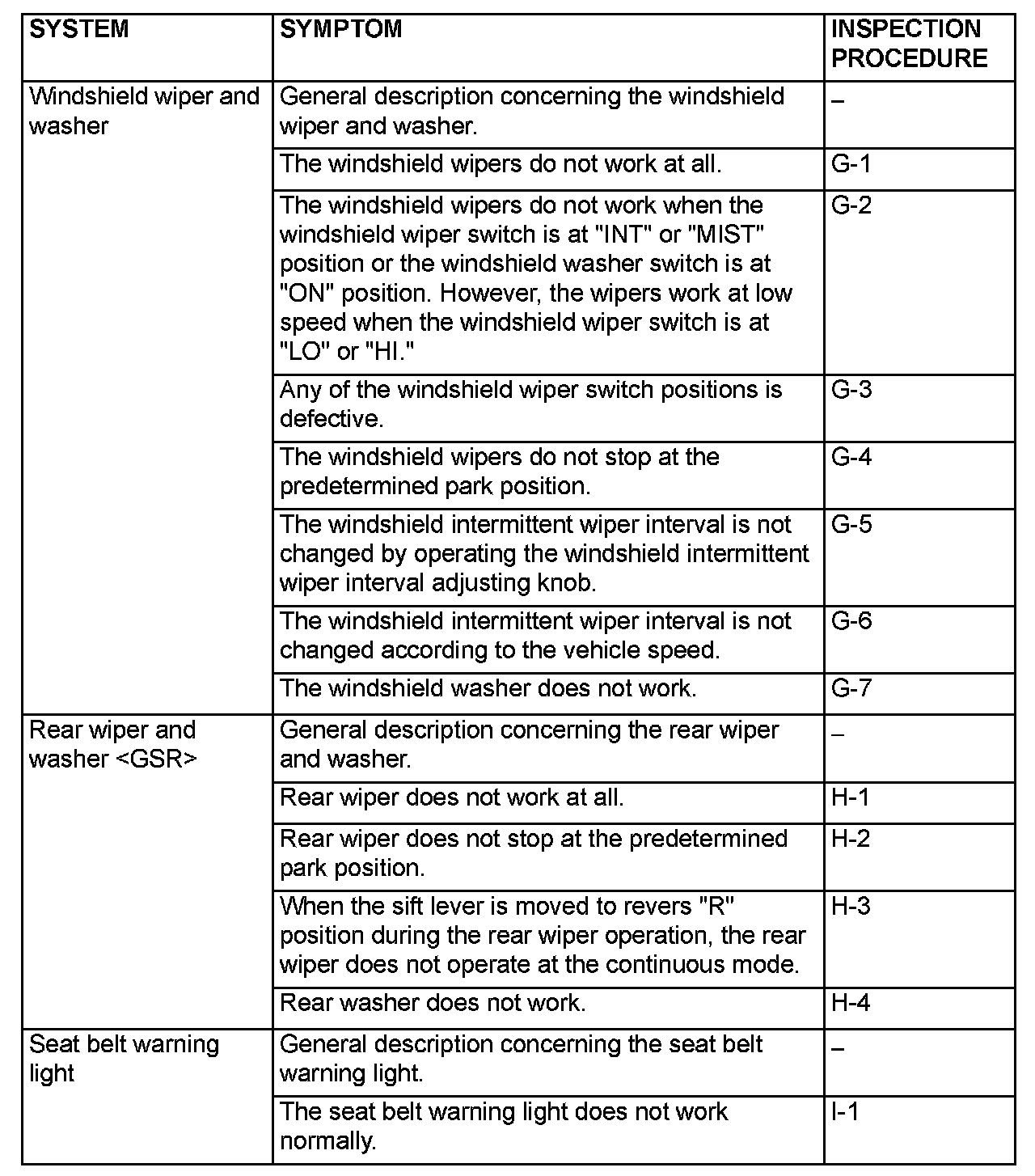

Function System Part 2:

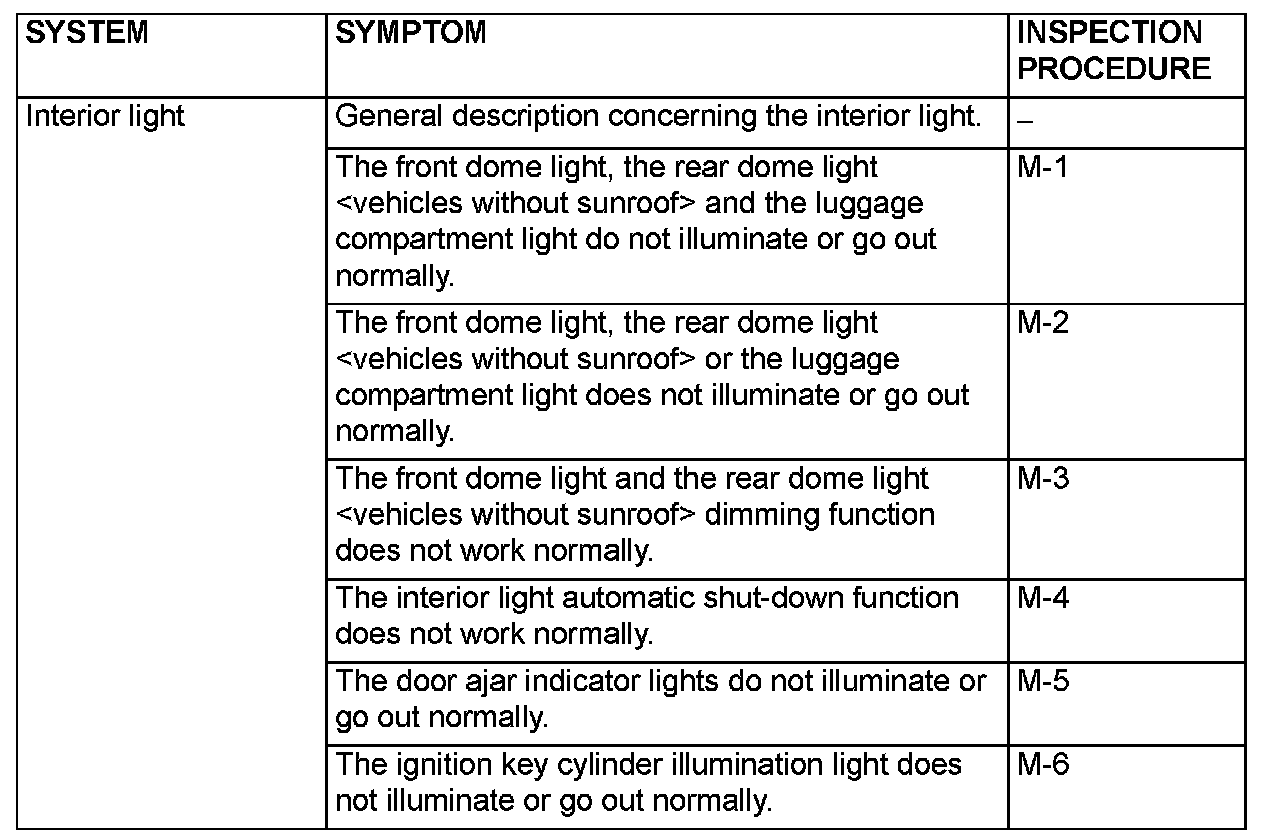

Function System Part 3:

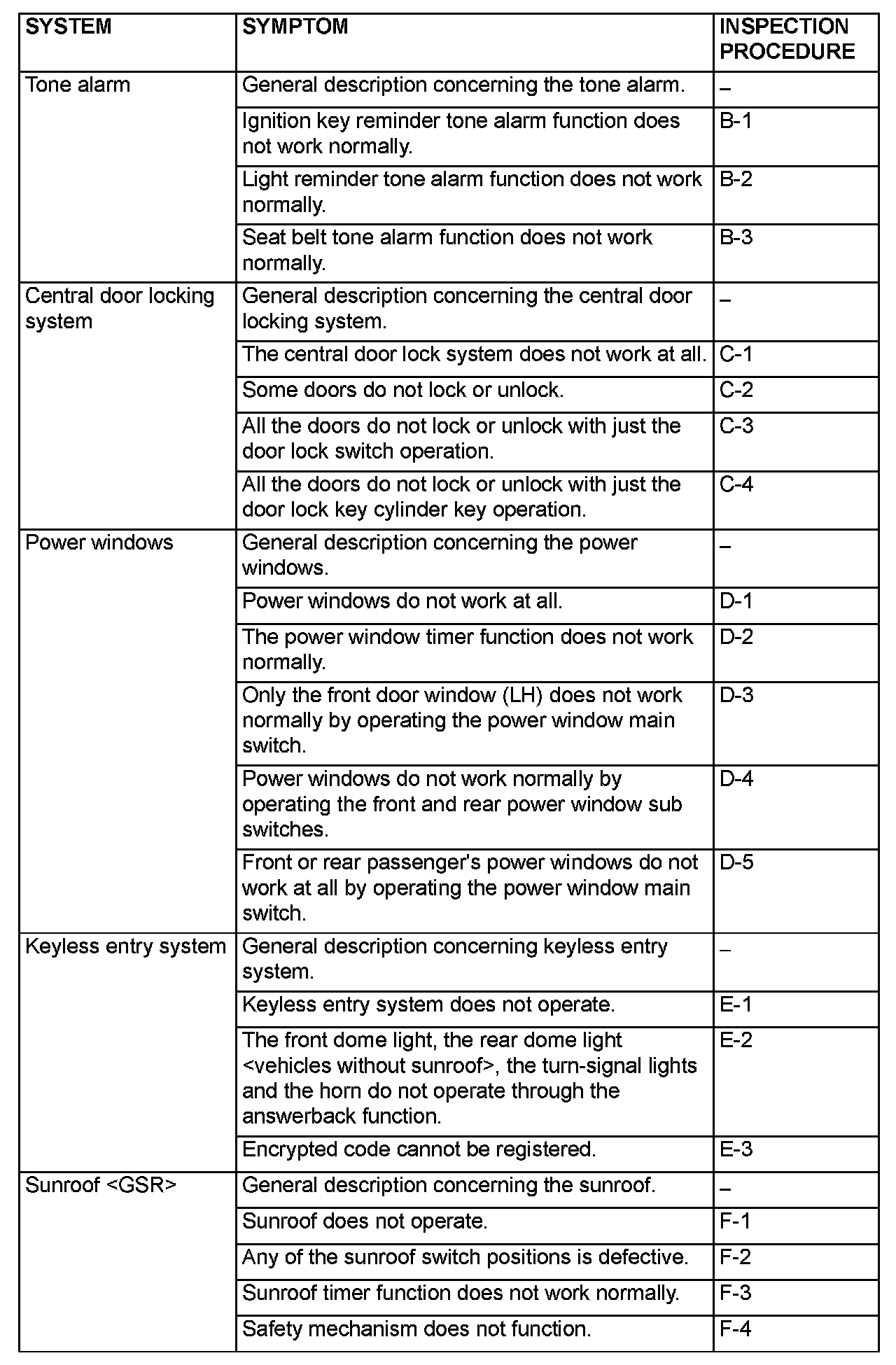

Function System Part 4:
