A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Supplemental Restraint System (SRS)
Supplemental Restraint System (SRS)

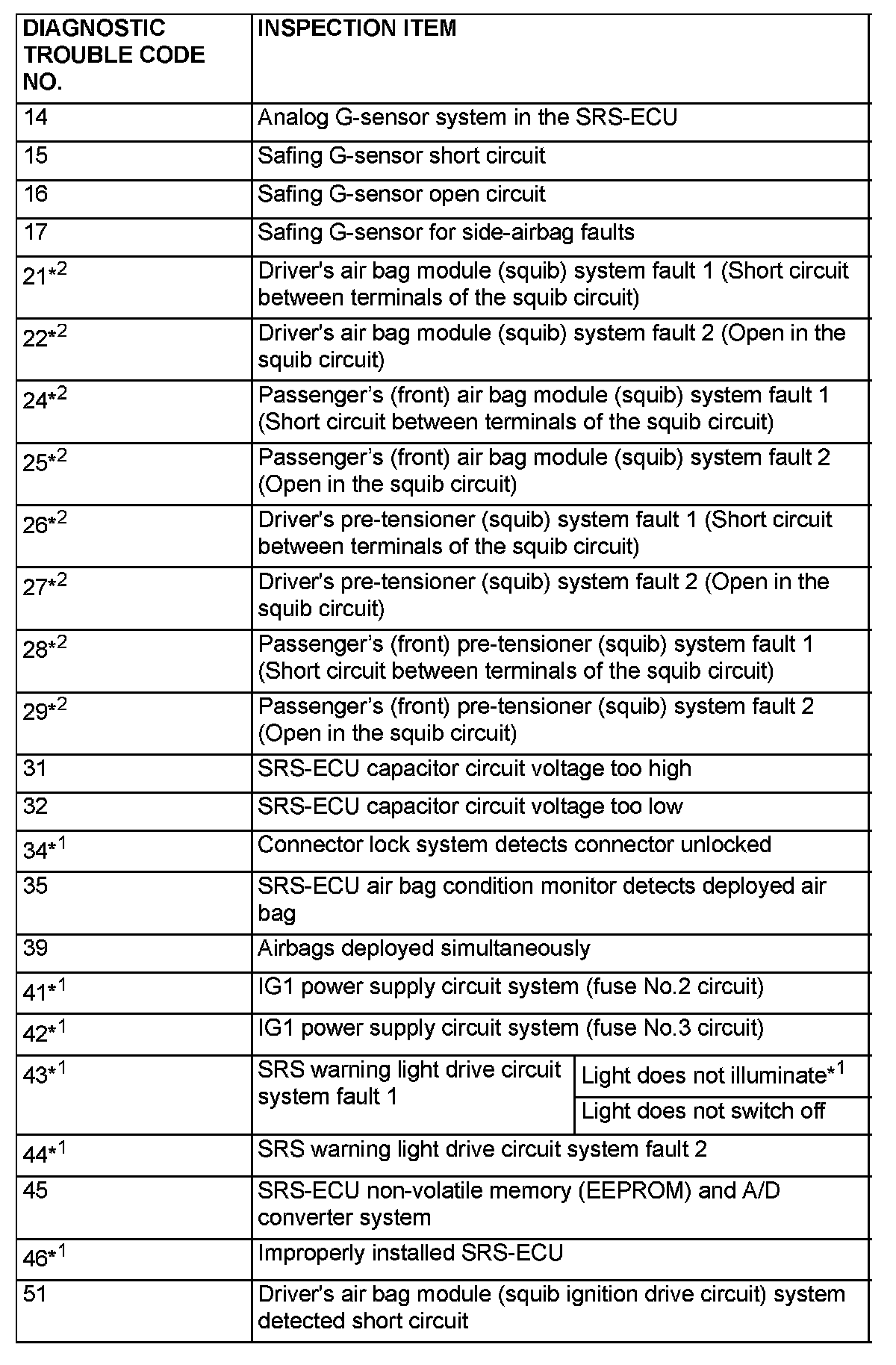

DTC 14 - DTC 51:

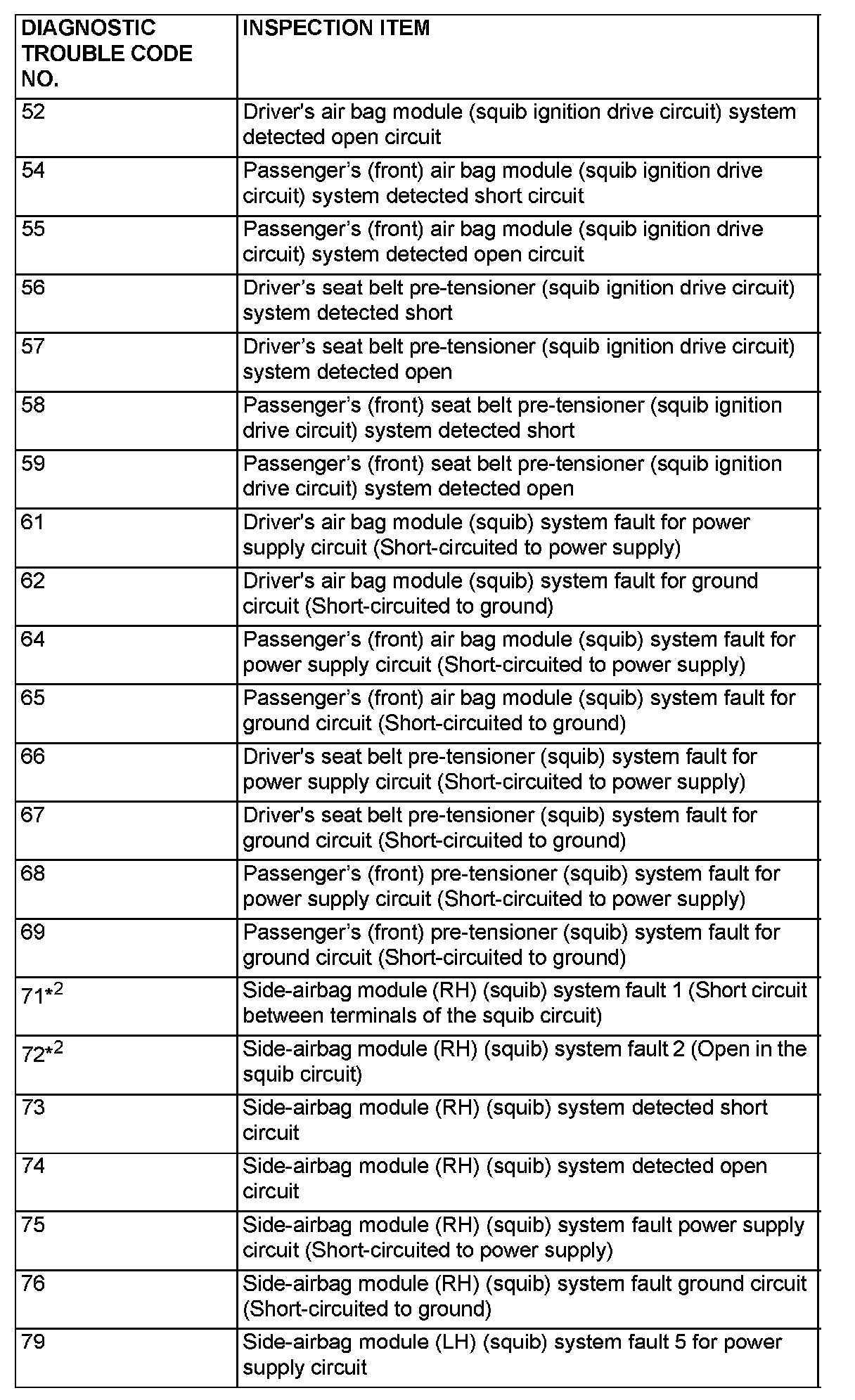

DTC 52 - DTC 79:

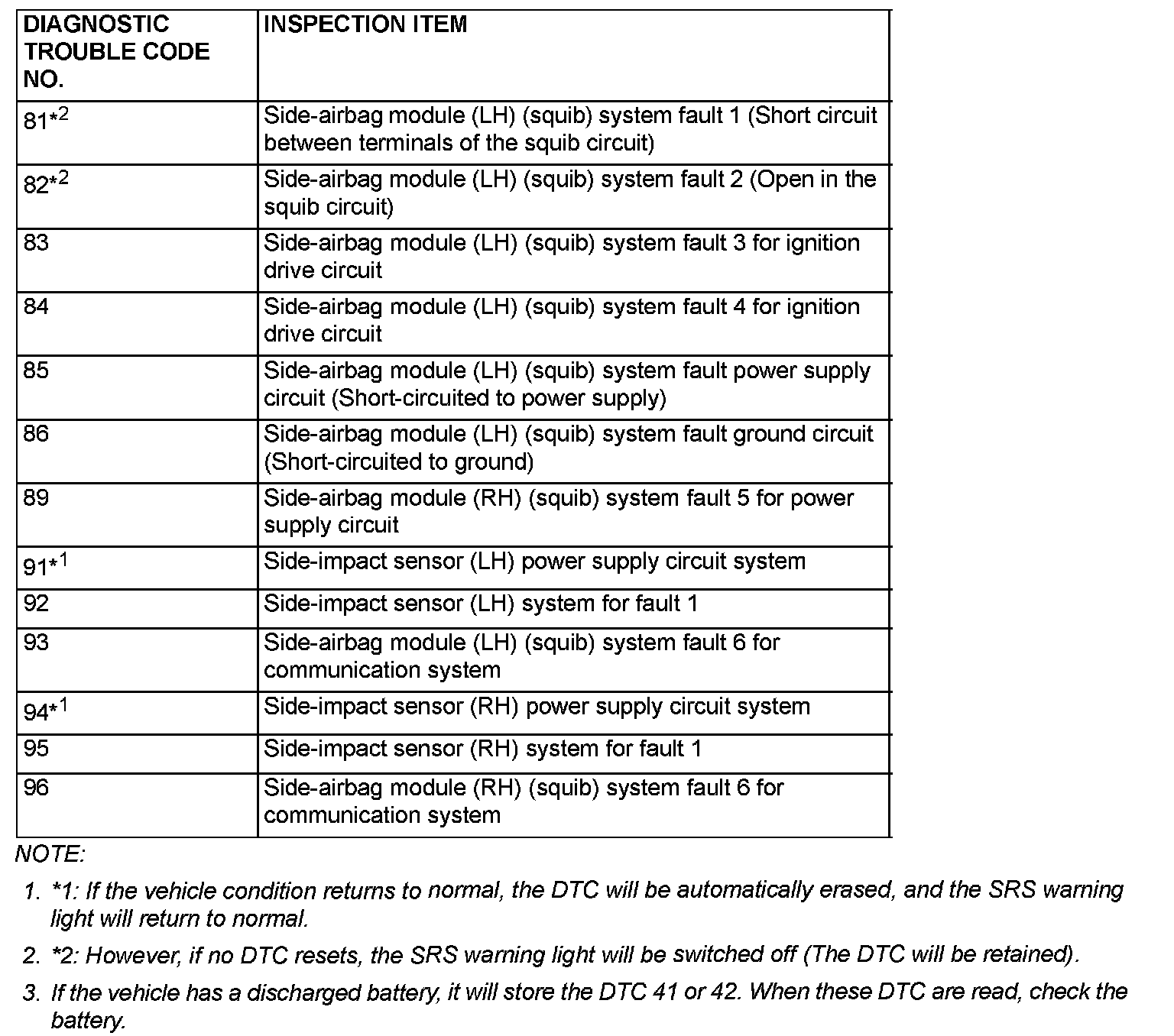

DTC 81 - DTC 96:
DIAGNOSTIC TROUBLE CODE CHART
Inspect according to the inspection chart that is appropriate for the DTC.
