Mercury
>>
2009
>>
Sable FWD V6-3.5L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Instrumentation, Message Center and Warning Chimes
>>
Instrument Cluster
Instrument Cluster
Instrumentation, Message Center and Warning Chimes
DTC Charts

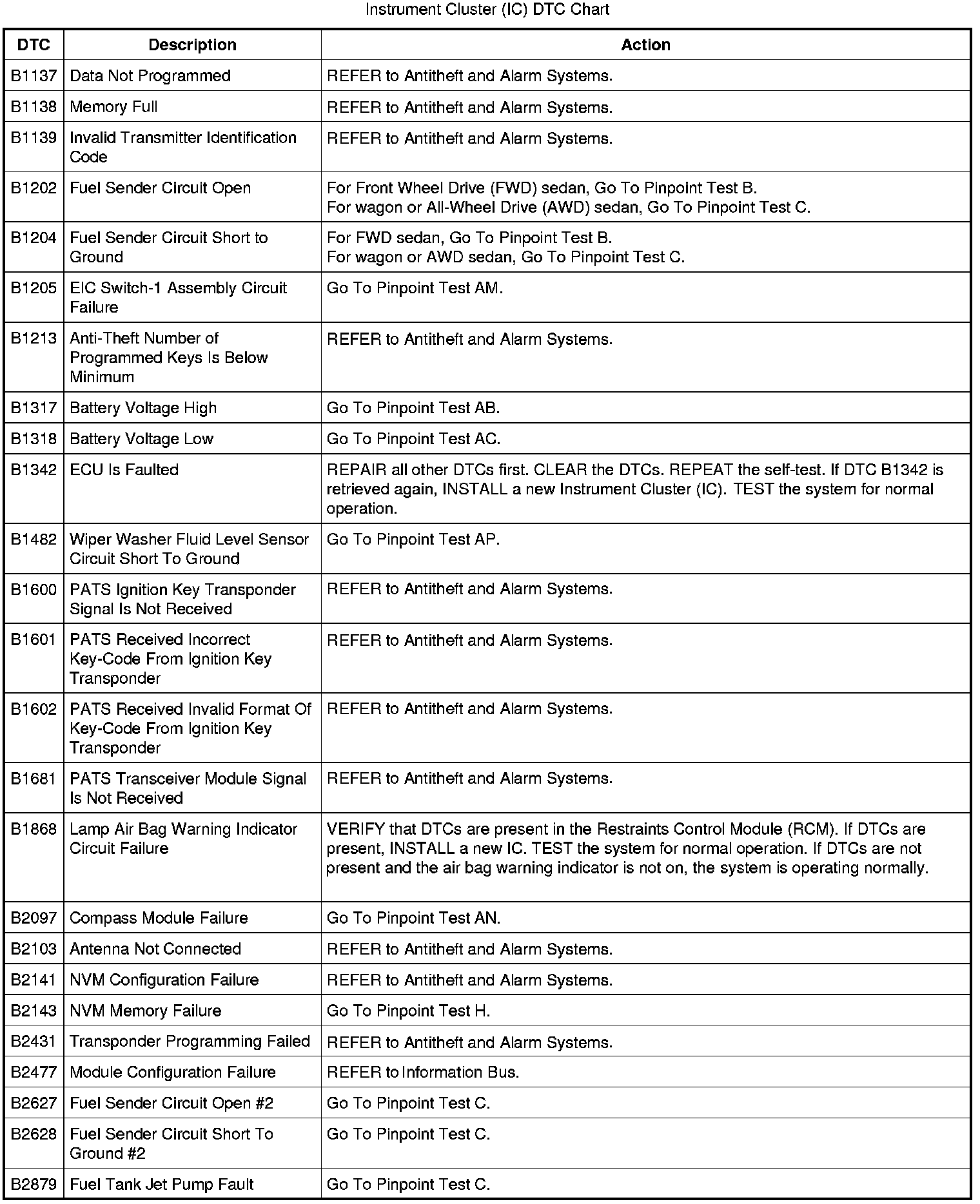

B1137-B2879:

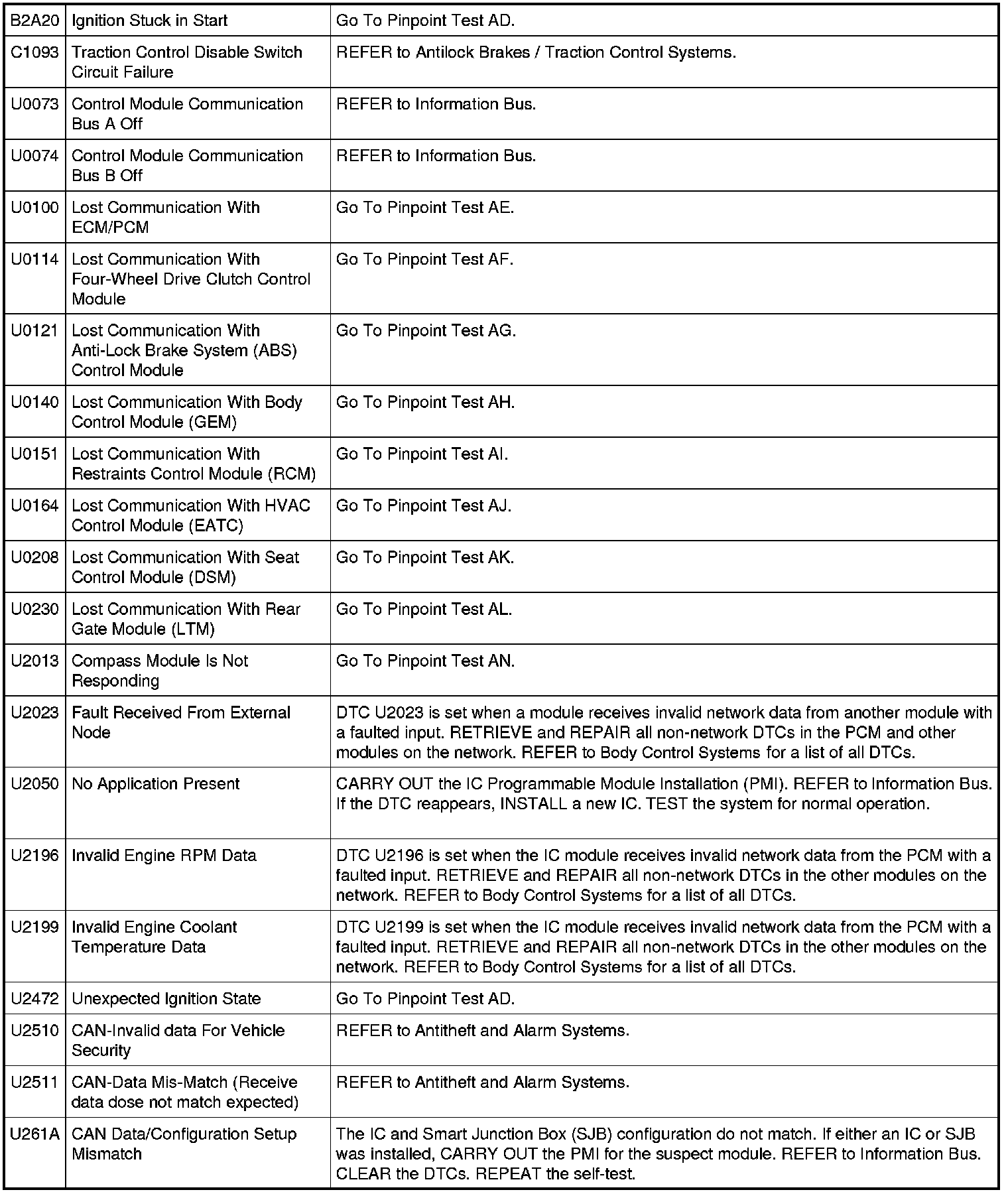

B2A20 / C1093 / U0073-U2511:
