Diagnostic Trouble Code Tests and Associated Procedures

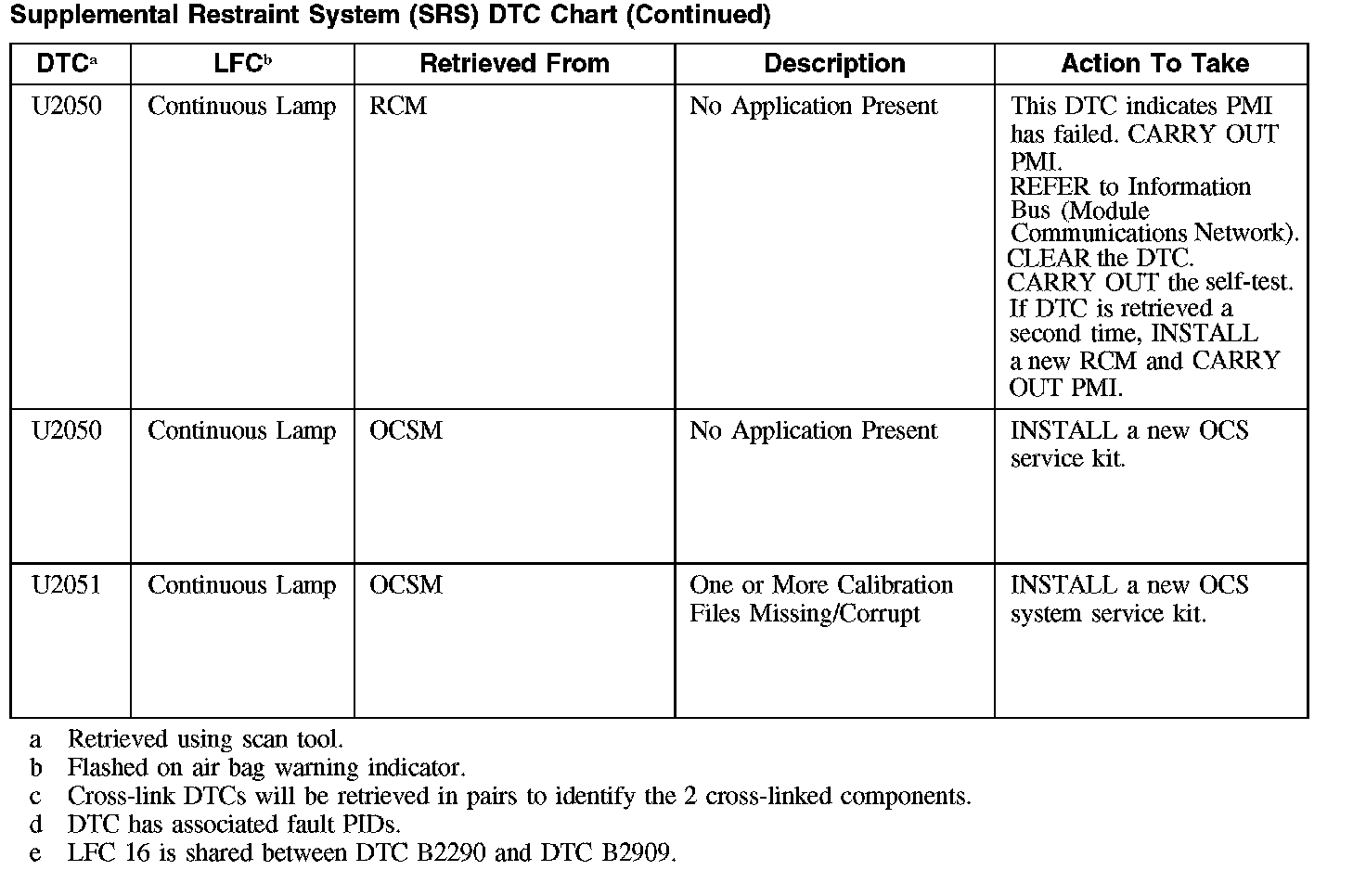

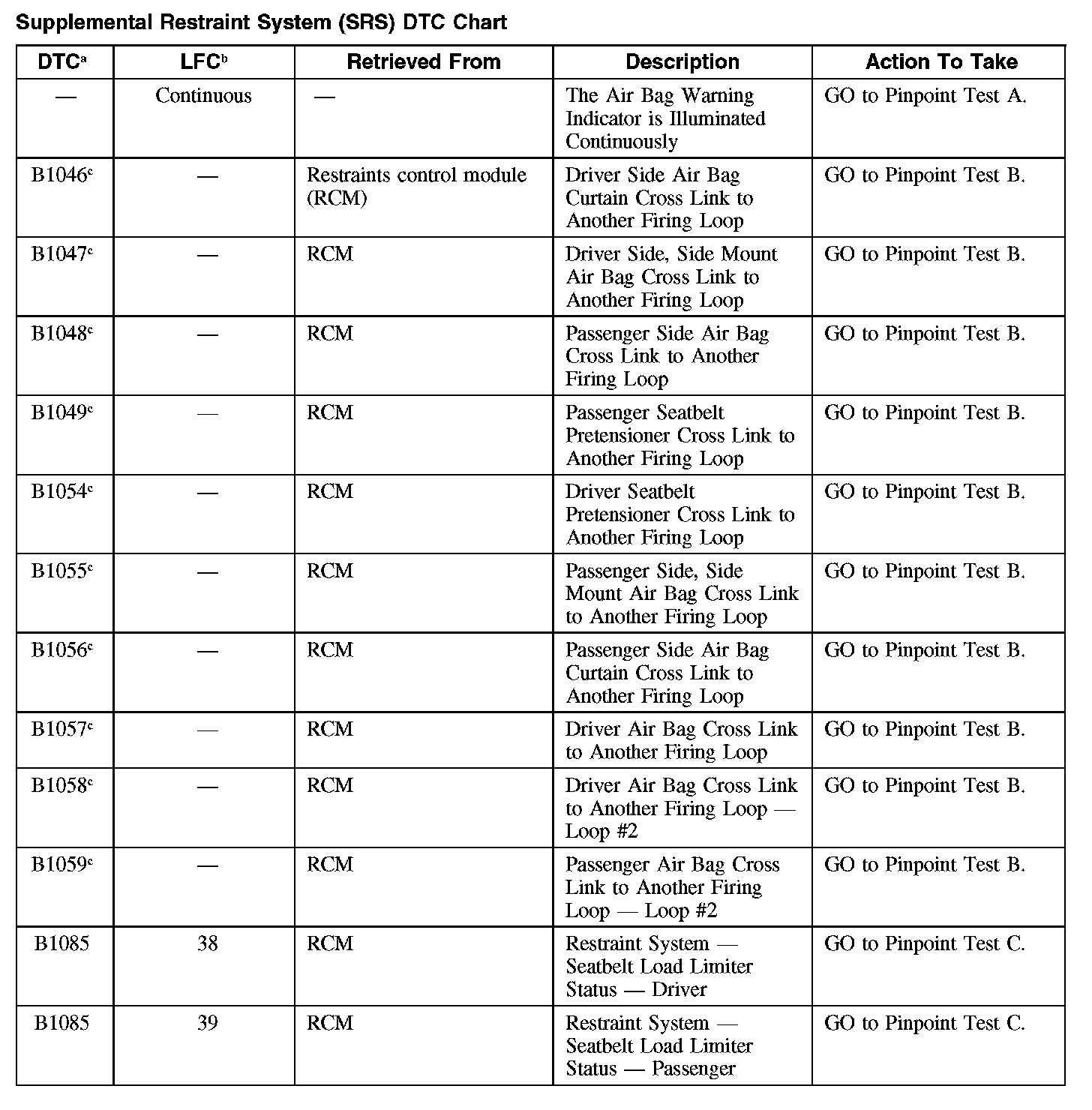

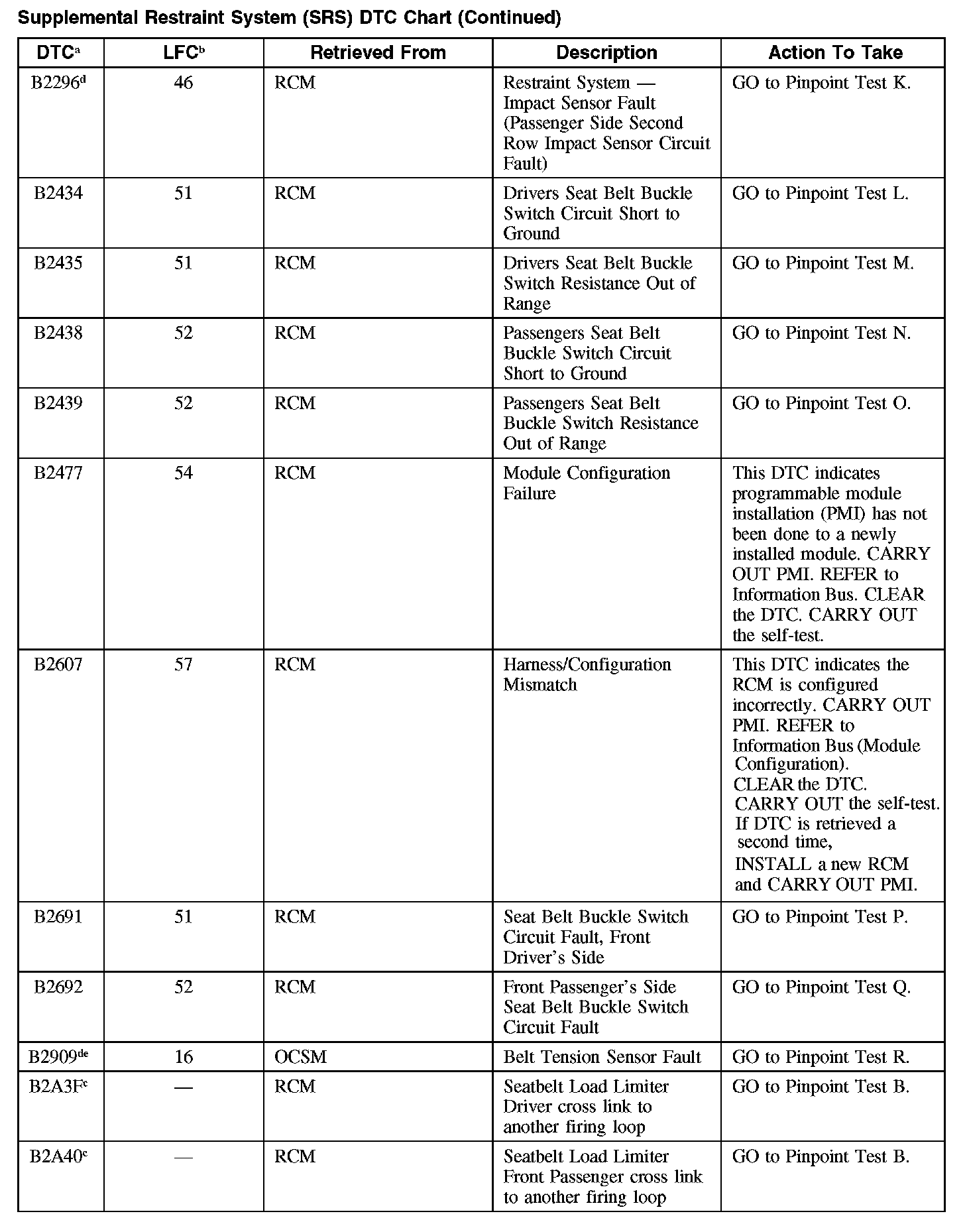

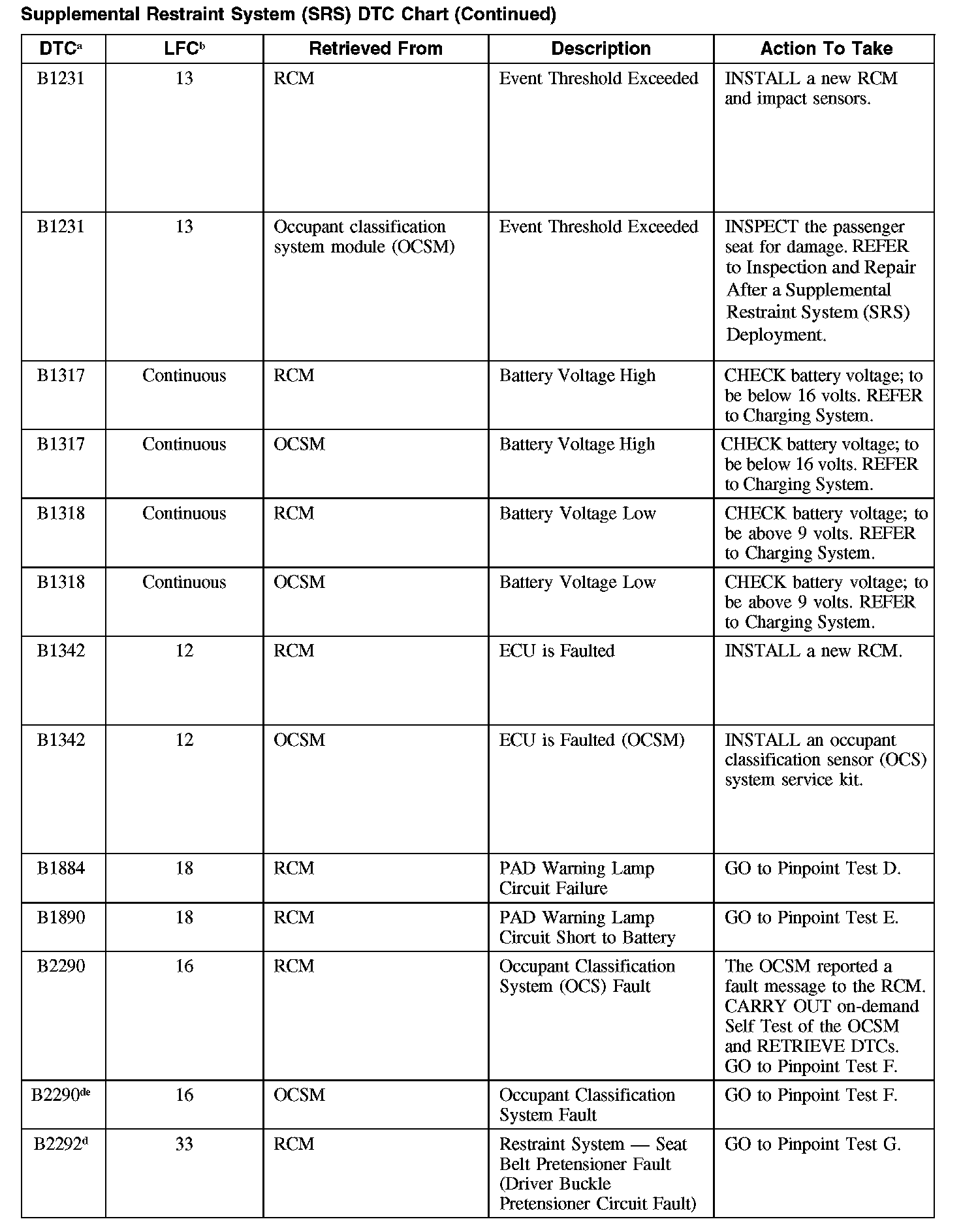

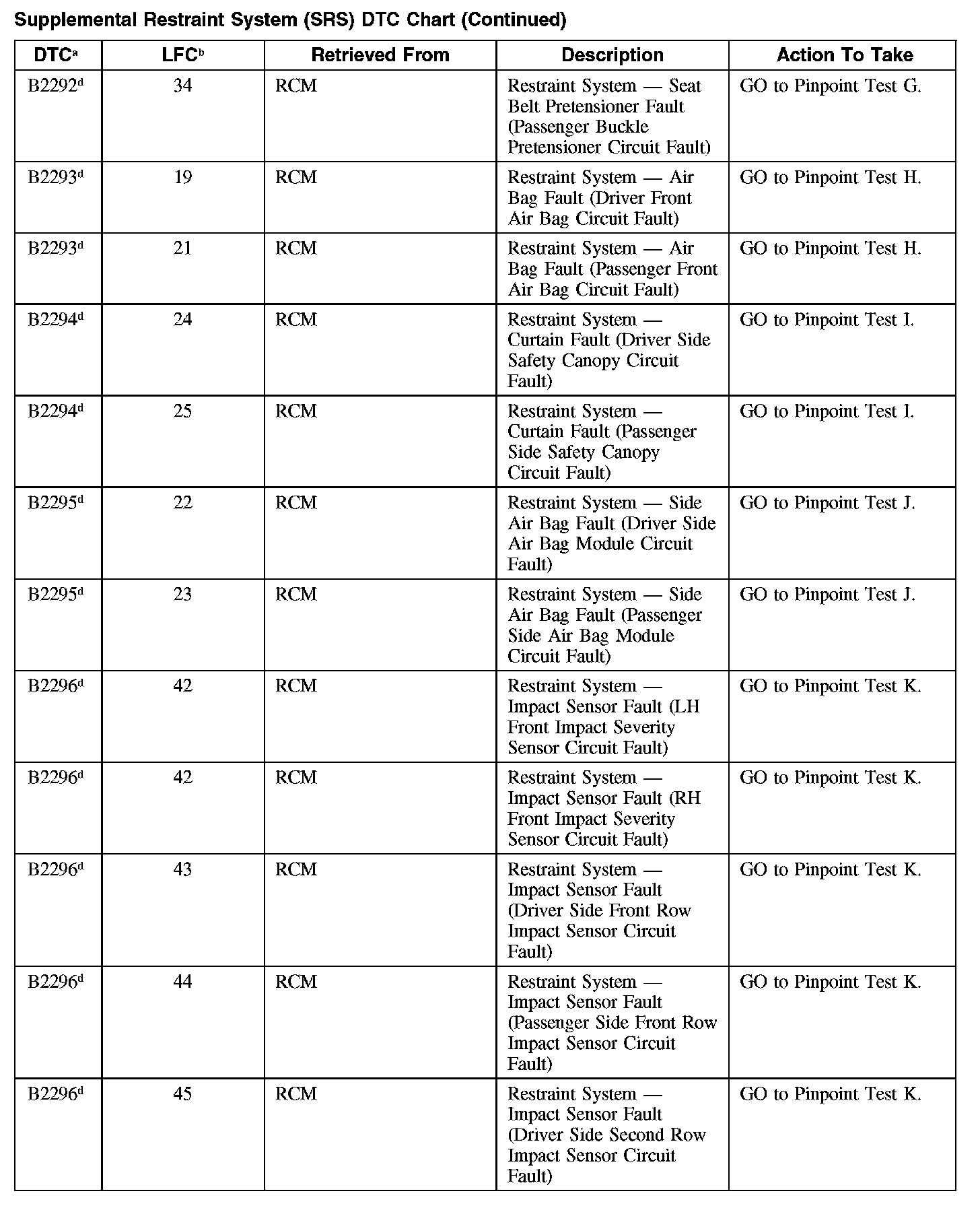

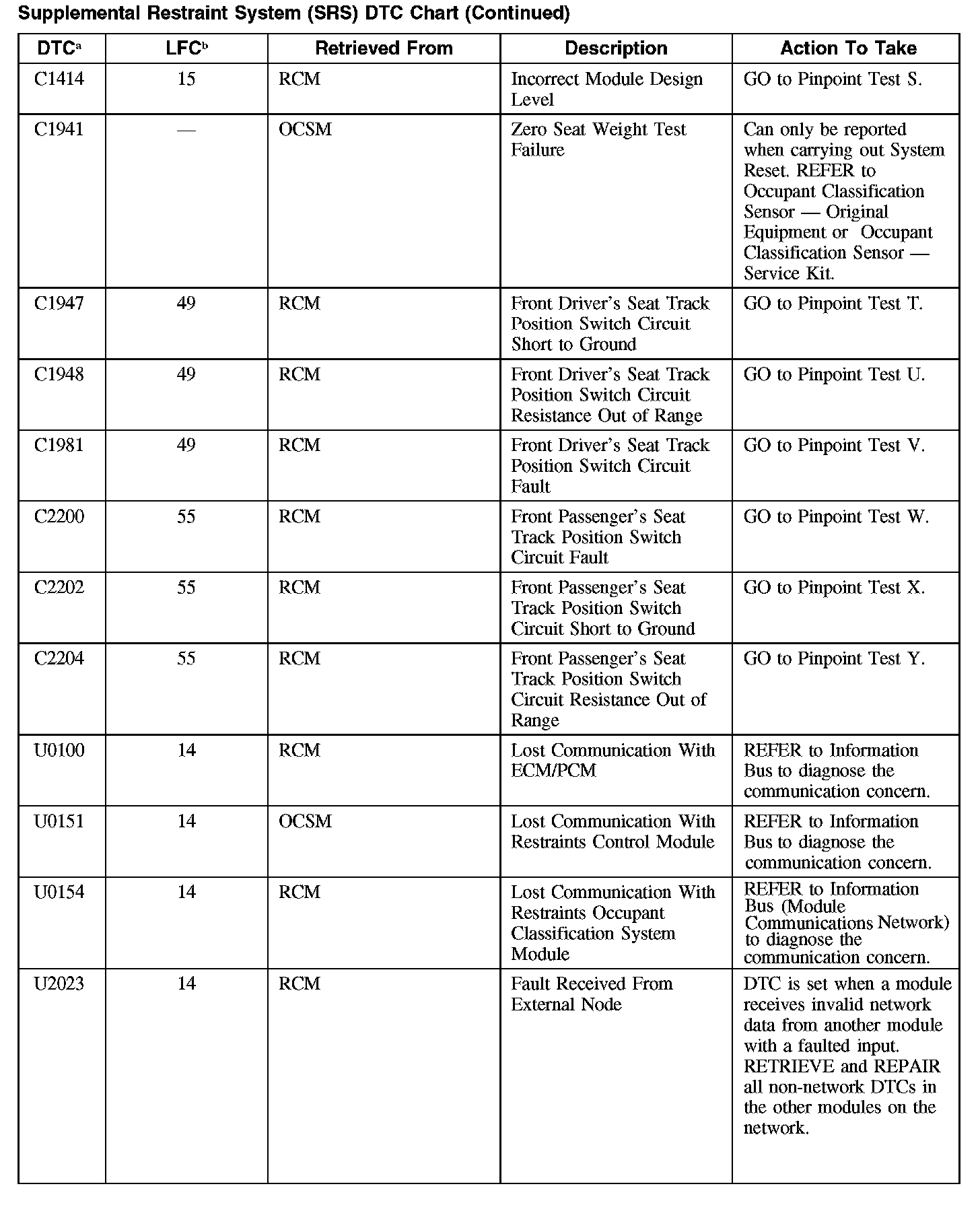

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DTC CHART

While the LFCs are an indication of a general concern in the passive restraints system, the DTCs are more specific. The DTCs can be retrieved from the RCM and OCSM with a scan tool via the DLC.
