Supplemental Restraint System (SRS) DTC Chart

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DTC CHART

The DTCs can be retrieved from the RCM with a scan tool via the DLC.

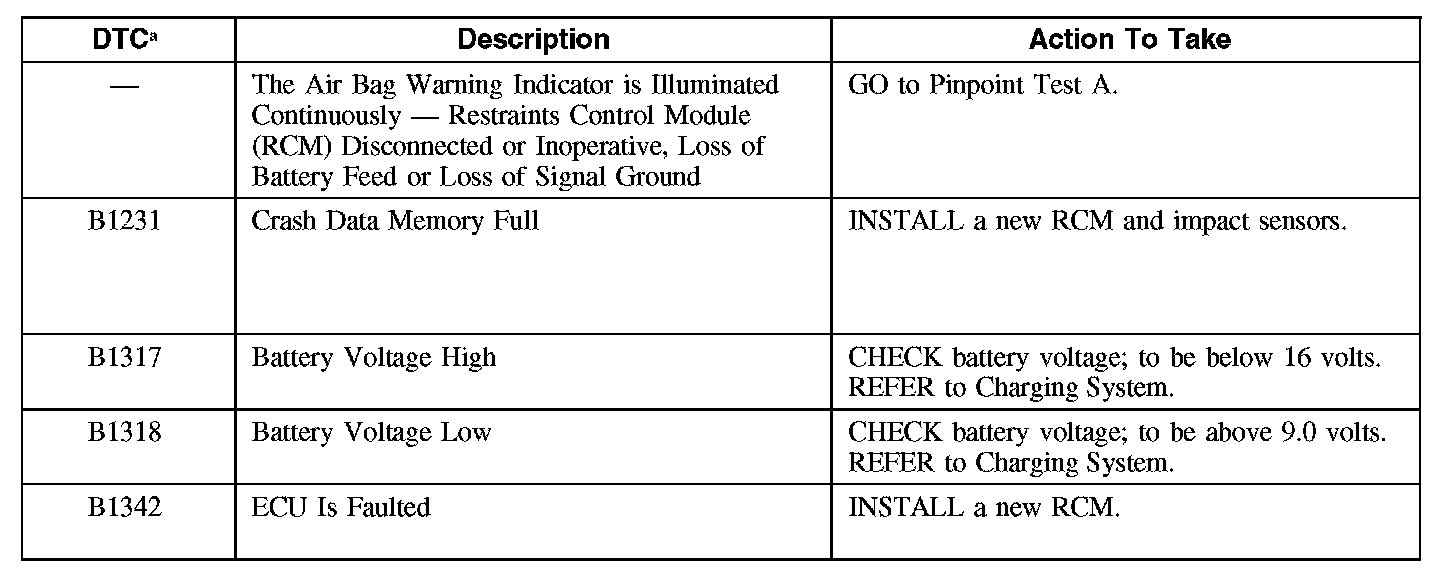

B1231-B1342:

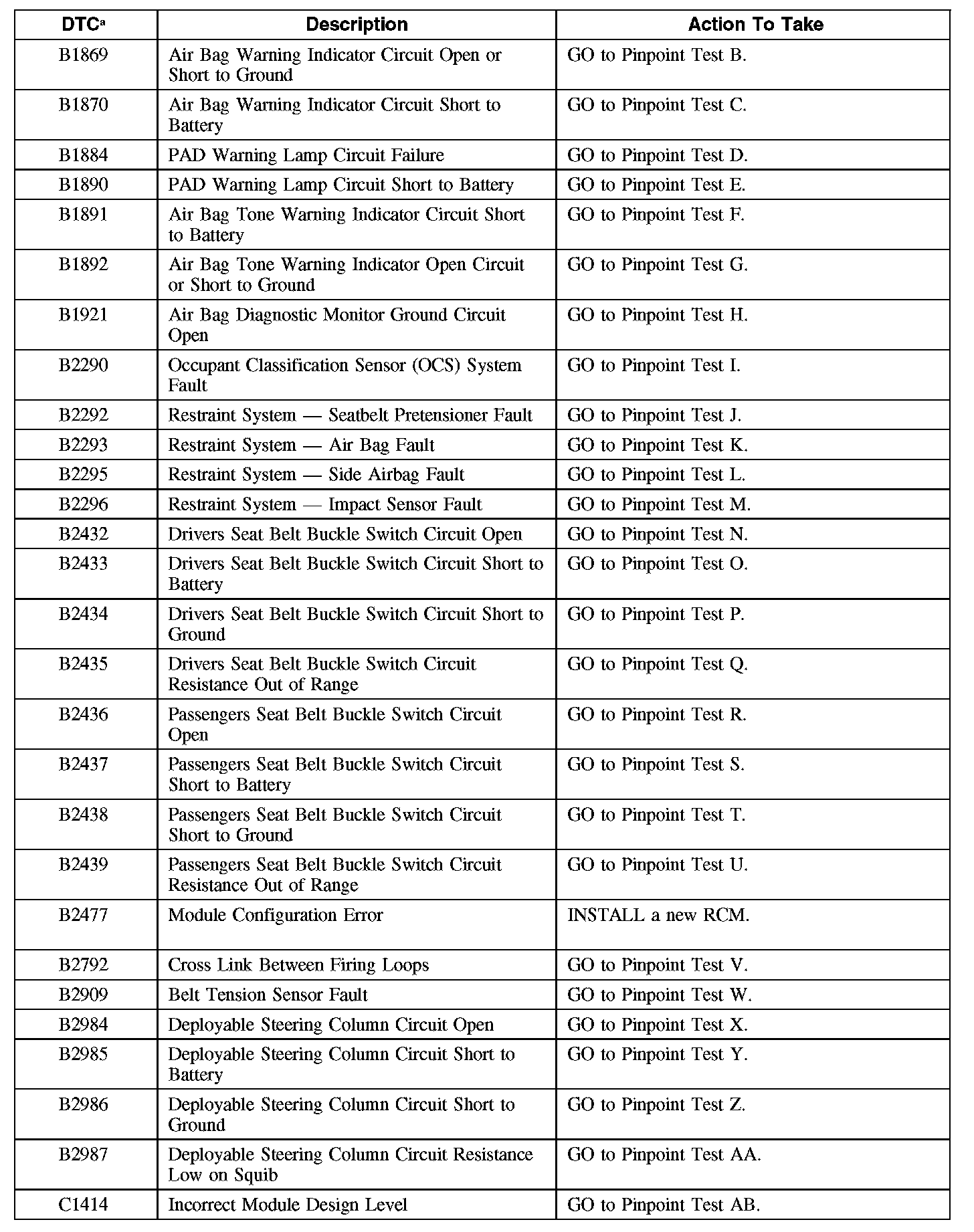

B1869-B2987 / C1414:

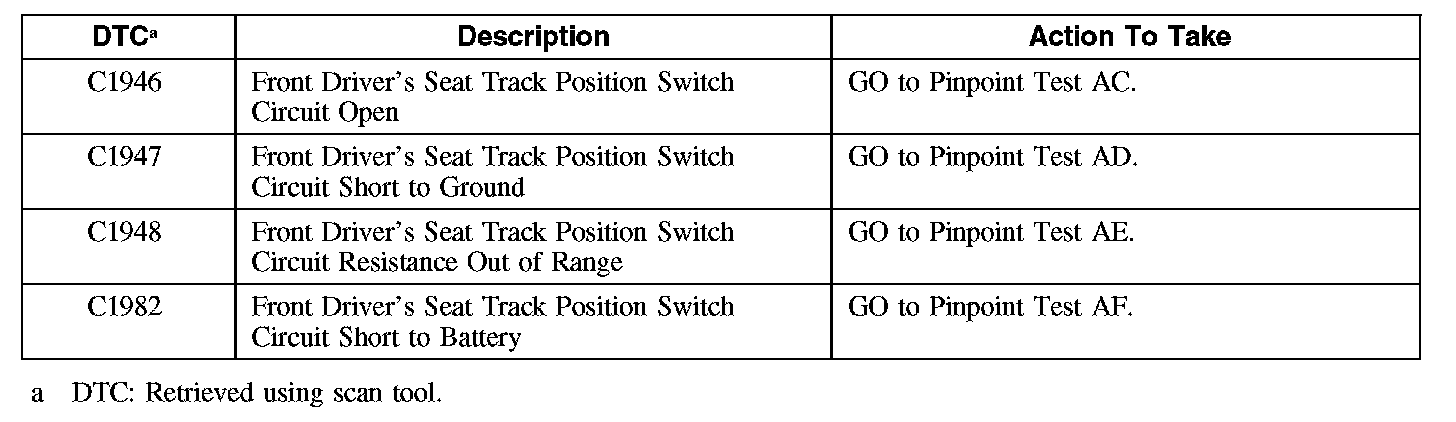

C1946-C1982:
