Variable Assist Power Steering (VAPS)
>>
Trouble Code Descriptions
>>
Generic Electronic Module Wiggle Test DTC's

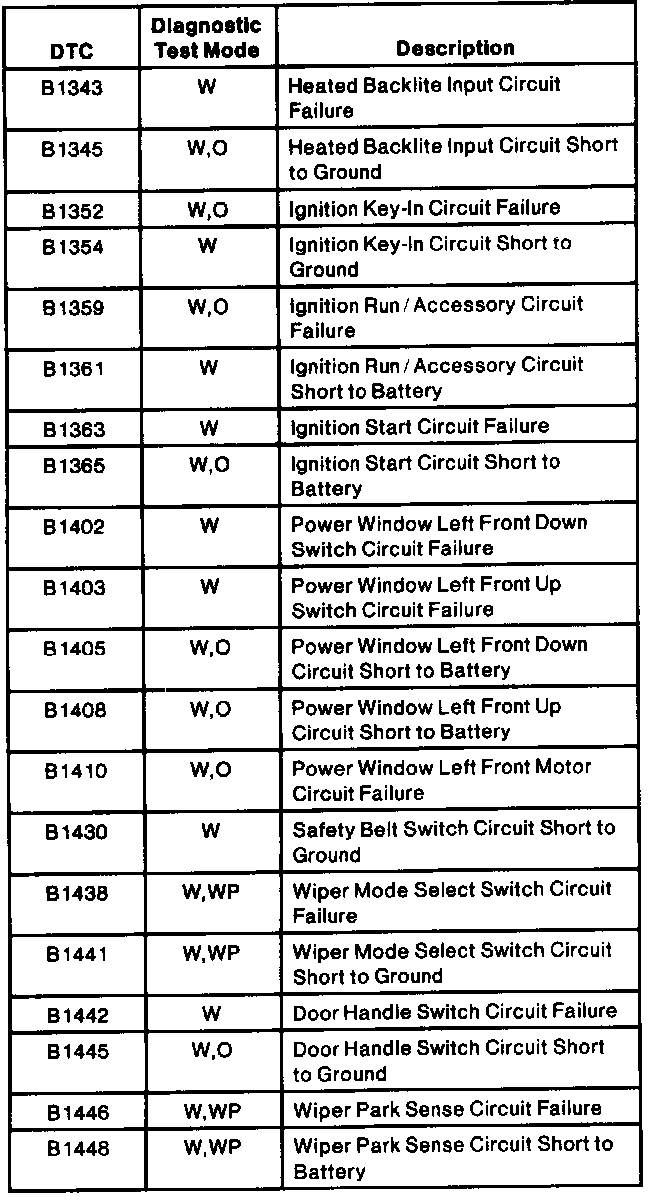

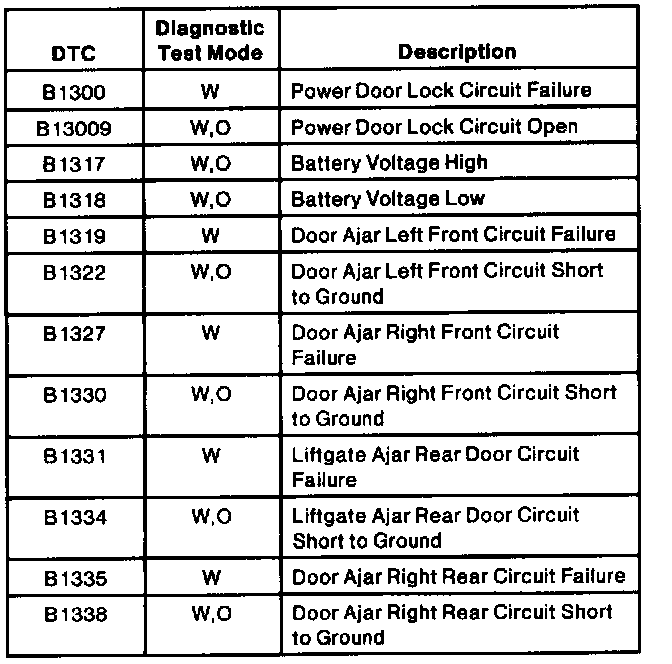

Generic Electronic Module Wiggle Test DTC's
1 Of 3:
2 Of 3:
3 Of 3:
W
= Wiggle Test
O
= On-Demand Diagnostics
WP
= Wiper On-Demand Diagnostics
