Installation

WIPER AND WASHER: HEADLIGHT CLEANER ACTUATOR: INSTALLATION

1. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH

(a) Attach the 2 claws as shown in the illustration.

(b) Push up the headlight cleaner clamp B to install it.

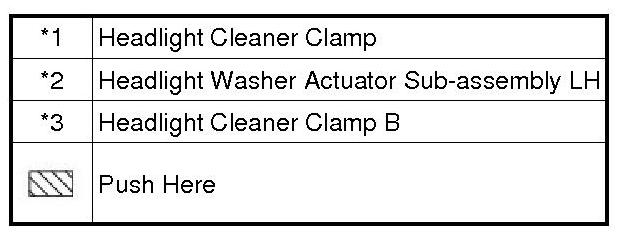

Text in Illustration

2. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH

HINT
Use the same procedure described for the LH side.

3. INSTALL HEADLIGHT CLEANER HOSE

(a) Attach the 7 clamps to install the hose to the front bumper cover.

(b) Connect the headlight cleaner hose to the headlight washer actuator sub-assemblies.

4. INSTALL TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY LH Removal

5. INSTALL TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY RH Installation

6. INSTALL FRONT BUMPER COVER Installation

7. INSTALL FRONT FENDER LINER LH Installation

8. INSTALL FRONT FENDER LINER RH Installation

9. INSTALL FRONT FENDER WHEEL OPENING MOULDING LH

10. INSTALL FRONT FENDER WHEEL OPENING MOULDING RH Installation

11. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH Installation

12. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH Installation

13. INSTALL RADIATOR GRILLE Installation

14. INSTALL COOL AIR INTAKE DUCT SEAL Installation

15. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY Installation

16. INSTALL ENGINE ROOM SIDE COVER LH Installation

17. INSTALL ENGINE ROOM SIDE COVER RH Installation

18. VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT Adjustments

19. PREPARATION FOR FOG LIGHT AIMING Adjustments

20. FOG LIGHT AIMING INSPECTION Adjustments

21. FOG LIGHT AIMING ADJUSTMENT Adjustments
