Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window Switch

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch
- Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch

DESCRIPTION

* If the manual UP/DOWN function does not operate, there may be a malfunction in the power window regulator switch, front power window regulator motor RH or wire harness.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK LIN COMMUNICATION SYSTEM

(a) Check for LIN communication system DTCs related to the power window control system.

OK:

LIN communication system DTCs are not output.

NG -- GO TO LIN COMMUNICATION SYSTEM LIN Communication System
OK -- Continue to next step.

2. CHECK FOR DTC (B2312)

(a) Check if DTC B2312 is output.

OK:

DTC B2312 is not output.

NG -- GO TO DTC B2312 B2312
OK -- Continue to next step.

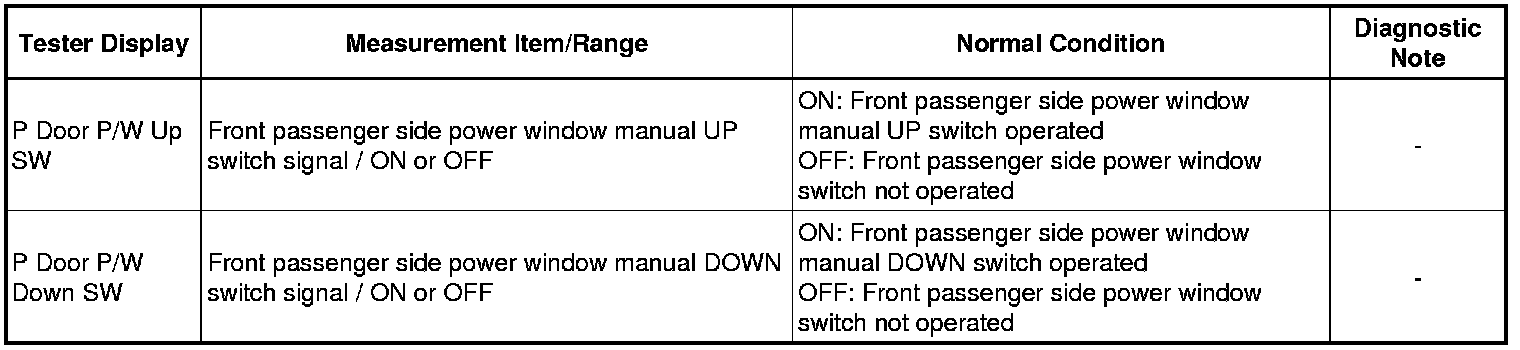

3. READ VALUE USING TECHSTREAM (FRONT POWER WINDOW REGULATOR MOTOR RH)

(a) Use the Data List to check if the power window regulator motor is functioning properly.

P-Door Motor:





OK:

Techstream display changes normally when front passenger side power window switch is operated.

NG -- CHECK HARNESS AND CONNECTOR (FRONT MULTIPLEX NETWORK DOOR ECU RH - POWER WINDOW REGULATOR SWITCH)

OK -- REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH Removal

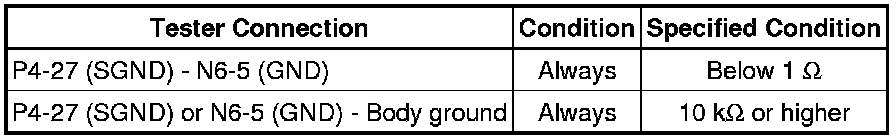

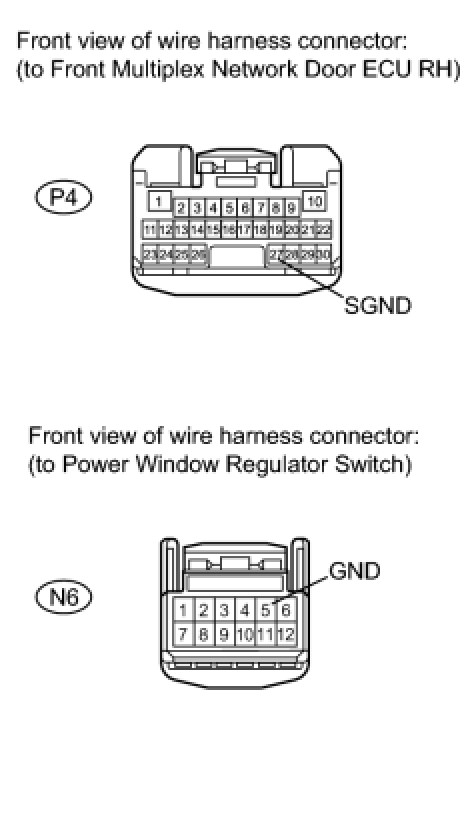

4. CHECK HARNESS AND CONNECTOR (FRONT MULTIPLEX NETWORK DOOR ECU RH - POWER WINDOW REGULATOR SWITCH)

(a) Disconnect the P4 ECU connector.





(b) Disconnect the N6 switch connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

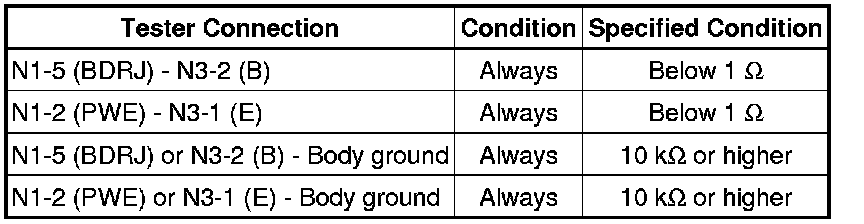

5. CHECK HARNESS AND CONNECTOR (FRONT MULTIPLEX NETWORK DOOR ECU RH - FRONT POWER WINDOW REGULATOR MOTOR RH)

(a) Disconnect the N1 ECU connector.





(b) Disconnect the N3 motor connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

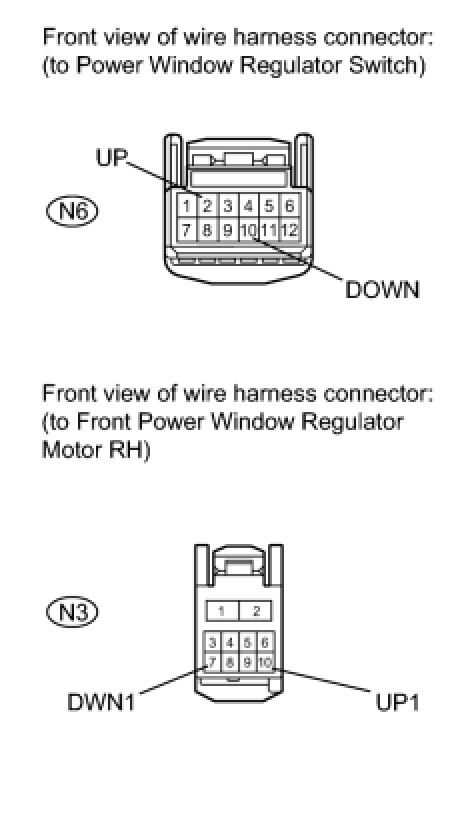

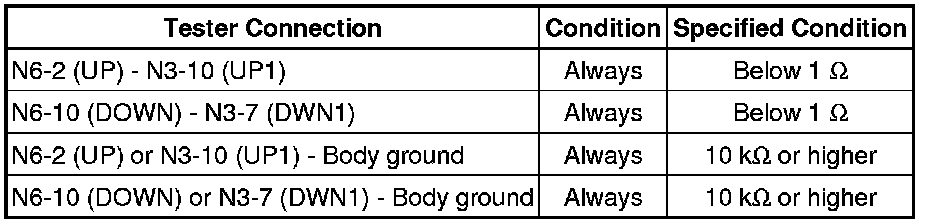

6. CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR SWITCH - FRONT POWER WINDOW REGULATOR MOTOR RH)

(a) Disconnect the N6 switch connector.





(b) Disconnect the N3 motor connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

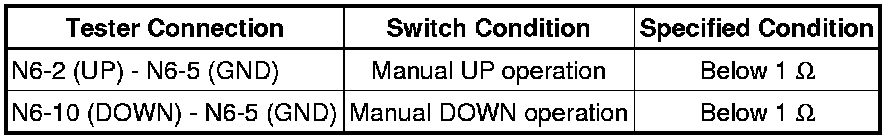

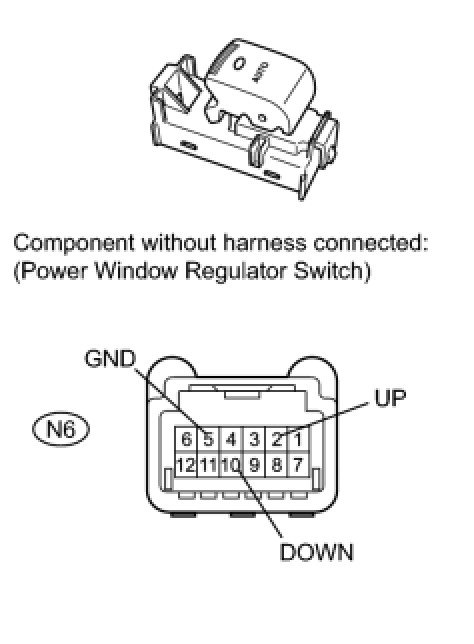

7. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY





(a) Remove the switch.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY Removal

OK -- REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH Removal
