Removal

SUSPENSION CONTROL: SUSPENSION CONTROL ECU: REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:
w/ Navigation System (for HDD):

After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





3. REMOVE INSTRUMENT SIDE PANEL RH Removal

4. REMOVE NO. 2 INSTRUMENT CLUSTER MOULDING Removal

5. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

6. REMOVE INSTRUMENT PANEL LOWER Removal

7. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Removal

8. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY Removal

9. DISCONNECT CONNECTORS (w/ Clearance Warning ECU)

10. DISCONNECT CONNECTORS (w/ Parking Assist ECU)

11. REMOVE SUSPENSION CONTROL ECU WITH BRACKET

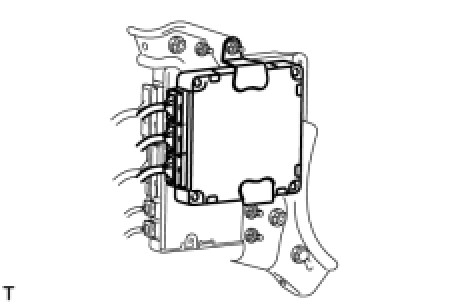

(a) Disconnect the suspension control ECU connectors.





HINT
Do not apply excessive force to the wire harnesses.

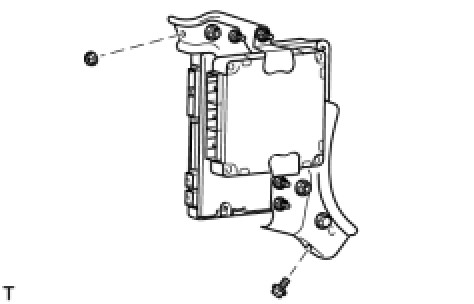

(b) Remove the bolt, nut and bracket.





12. REMOVE SUSPENSION CONTROL ECU

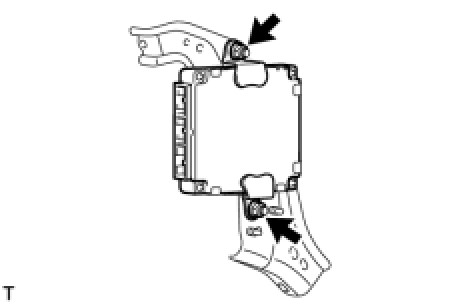

(a) Remove the 2 nuts and suspension control ECU from the bracket.





NOTICE:
* Avoid any impact to the suspension control ECU.
* Do not drop the ECU. If it is dropped, replace it with a new one.
