Removal

BRAKE CONTROL: BRAKE PEDAL STROKE SENSOR: REMOVAL

NOTICE:
While the battery is connected, even if the engine switch is off, the brake control system activates when the brake pedal is depressed or the door courtesy switch turns on. Therefore during servicing of the brake system components, do not operate the brake pedal and open/close the doors while the battery is connected.

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
* w/ Navigation System (for HDD):
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal

4. REMOVE INSTRUMENT SIDE PANEL LH Removal

5. REMOVE NO. 1 INSTRUMENT CLUSTER MOULDING Removal

6. REMOVE STEERING COLUMN COVER Removal

7. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY Removal

8. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal

9. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Removal

10. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

11. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY Removal

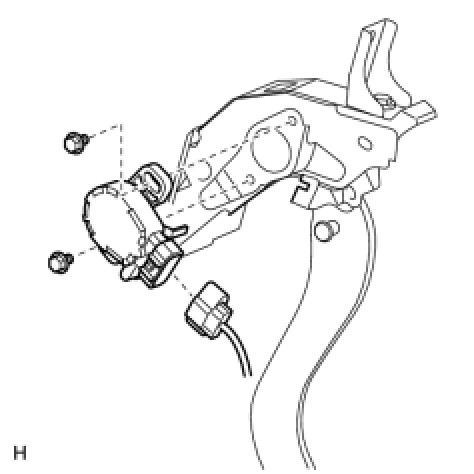

12. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

(a) Remove the 2 bolts and sensor.





(b) Disconnect the sensor connector.
