Installation

1UR-FSE EMISSION CONTROL: PCV VALVE: INSTALLATION

1. INSTALL PCV VALVE

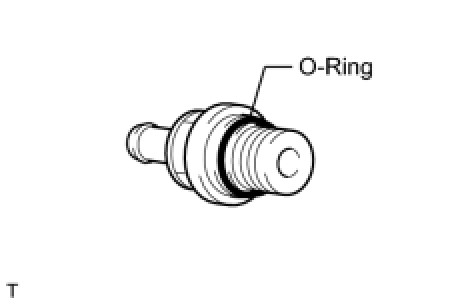

(a) Apply a light coat of engine oil to the O-ring.

(b) Install the PCV valve.

Torque : 3.5 Nm (36 kgf-cm, 31 in-lbf)

HINT
* When reusing the PCV valve, inspect the O-ring.
* If the O-ring has scratches or cuts, replace the PCV valve.

2. INSTALL PCV VALVE HOSE





(a) Install the hose to the PCV valve.

3. INSTALL INTAKE MANIFOLD

(a) Install the intake manifold Installation.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

5. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
