Removal

PARK ASSIST / MONITORING: CLEARANCE WARNING BUZZER (for Rear Side): REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
* w/ Navigation System (for HDD):
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)

(a) Remove the rear seat assembly Removal.

4. REMOVE REAR SEAT ASSEMBLY (for Power Seat)

(a) Remove the rear seat assembly Removal.

5. REMOVE REAR SEAT ASSEMBLY (for Ottoman)

(a) Remove the rear seat assembly Removal.

6. REMOVE REAR DOOR SCUFF PLATE LH

(a) for Standard Body:

Remove the rear door scuff plate Removal.

(b) for Long Body:

Remove the rear door scuff plate Removal.

7. REMOVE REAR DOOR SCUFF PLATE RH

(a) for Standard Body:

Remove the rear door scuff plate Removal.

(b) for Long Body:

Remove the rear door scuff plate Removal.

8. REMOVE REAR SEAT SIDE GARNISH LH Removal

9. REMOVE REAR SEAT SIDE GARNISH RH Removal

10. REMOVE ROOF SIDE GARNISH INNER LH Removal

11. REMOVE ROOF SIDE GARNISH INNER RH Removal

12. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY Removal

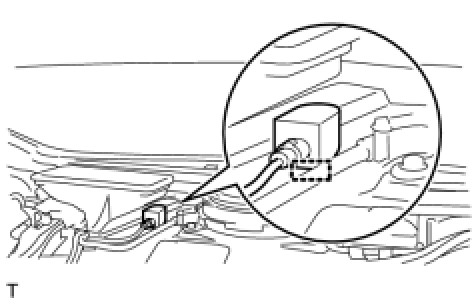

13. REMOVE NO. 2 CLEARANCE WARNING BUZZER

(a) Disconnect the connector.





(b) Using a clip remover, detach the claw and remove the warning buzzer.
