PARKING BRAKE: ELECTRIC PARKING BRAKE ACTUATOR: INSTALLATION
1. APPLY HIGH TEMPERATURE GREASE Reassembly
2. INSTALL ELECTRIC PARKING BRAKE ACTUATOR ASSEMBLY
(a) Install the electric parking brake actuator with the 3 nuts.
Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)
(b) Install the 3 harness clamps to the member.
Install the bolt and 5 nuts.
Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)
3. INSTALL NO. 1 PARKING BRAKE SHOE ASSEMBLY LH Reassembly
4. INSTALL NO. 1 PARKING BRAKE SHOE ASSEMBLY RH
HINT
Use the same procedures described for the LH side.
5. INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY LH Reassembly
6. INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY RH
HINT
Use the same procedures described for the LH side.
7. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET LH Reassembly
8. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET RH
HINT
Use the same procedures described for the LH side.
9. INSTALL NO. 2 PARKING BRAKE SHOE RETURN TENSION SPRING
(a) Install the No. 2 parking brake shoe return spring (LH side).
(b) Install the No. 2 parking brake shoe return spring (RH side).
10. INSTALL NO. 1 PARKING BRAKE SHOE RETURN TENSION SPRING
(a) Connect the parking brake cable.

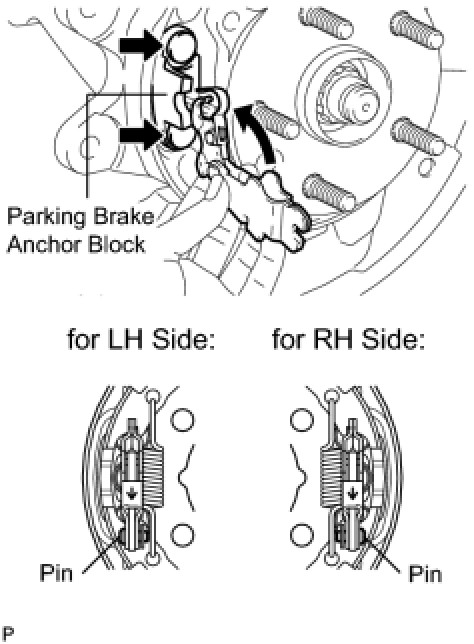

(1) Apply a thin layer of high-temperature grease to the area where the parking brake shoe lever contacts the parking brake anchor block.
(2) Install the parking brake shoe lever to the parking brake cable.
NOTICE:
Take care to install the correct parking brake shoe lever because the direction of the pin is different between the left and right.
(3) Check that the parking brake inner cable and parking brake shoe lever are securely connected by trying to pull them apart.
(4) Install the parking brake cable to the support bracket with the 2 nuts.
Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)
(5) With the vehicle on the ground, check that the gap between the parking brake cable and drive shaft, and the gap between the parking brake cable and shaft boot are 10 mm (0.394 in.) or more.
HINT
Make sure that the cable is not twisted.
(b) Install the No. 1 parking brake shoe return spring LH and RH.
11. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY Installation
12. INSTALL PNEUMATIC REAR RH WITH SHOCK ABSORBER CYLINDER ASSEMBLY (w/ Air Suspension) Installation
13. INSTALL PNEUMATIC REAR LH WITH SHOCK ABSORBER CYLINDER ASSEMBLY (w/ Air Suspension) Installation
14. INSTALL REAR STABILIZER LINK ASSEMBLY LH Installation
15. REMOVE REAR STABILIZER LINK ASSEMBLY RH Installation
16. INSTALL REAR SHOCK ABSORBER ASSEMBLY LH (w/ Coil Suspension) Installation
17. INSTALL REAR SHOCK ABSORBER ASSEMBLY RH (w/ Coil Suspension) Installation
18. INSTALL REAR DISC LH Reassembly
19. INSTALL REAR DISC RH
HINT
Use the same procedures described for the LH side.
20. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH Installation
21. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY RH
HINT
Use the same procedures described for the LH side.
22. CONNECT PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY Installation
23. INSTALL TAILPIPE RH Installation
24. INSTALL TAIL PIPE LH Installation
25. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH Installation
26. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH
HINT
Use the same procedures described for the LH side.
27. INSTALL REAR SPEED SENSOR LH Installation
28. INSTALL REAR SPEED SENSOR RH Installation
29. INSTALL ELECTRIC PARKING BRAKE ACTUATOR CAP
(a) Install the electric parking brake actuator emergency release cable cap with the 2 nuts.
Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)
30. INSTALL FLOOR NO. 1 UNDER COVER Installation
31. CONNECT WIRE HARNESS CLAMP
(a) Install the 2 harness clamps to the electric parking brake actuator.
32. INSTALL CONNECTOR

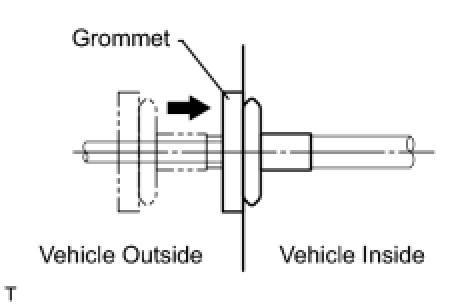

(a) Attach the electric parking brake actuator harness grommet.
(b) Connect the trunk interior's parking brake actuator connector.
33. INSTALL REAR WHEEL HOUSE LINER LH Installation
34. INSTALL REAR FLOOR SIDE MEMBER COVER RH Installation
35. INSTALL REAR FLOOR SIDE MEMBER COVER LH Installation
36. INSTALL NO. 6 ROCKER PANEL MOULDING PROTECTOR Installation
37. INSTALL NO. 5 ROCKER PANEL MOULDING PROTECTOR Installation
38. INSTALL NO. 1 DIFFERENTIAL SUPPORT PROTECTOR Installation
39. INSTALL NO. 2 DIFFERENTIAL SUPPORT PROTECTOR Installation
40. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH Installation
41. INSTALL DECK TRIM SIDE BOARD LH Installation
42. INSTALL REAR FLOOR FINISH PLATE Installation
43. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Installation
44. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
45. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
46. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
47. ADJUST PARKING BRAKE SHOE CLEARANCE
(a) Adjust parking brake shoe clearance Adjustments.
NOTICE:
If the parking brake shoe clearance is not adjusted, the cable end may be damaged.
48. INSTALL REAR WHEEL Installation
49. ADJUST VEHICLE HEIGHT
(a) Adjust vehicle height Adjustments.
50. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
(a) Inspect and adjust the rear wheel alignment Rear Wheel Alignment.
51. INSPECT SPEED SENSOR SIGNAL
(a) Inspect the speed sensor signal Test Mode Procedure.
52. PERFORM CALIBRATION
(a) Clear the electric parking brake ECU memory and acquire tension sensor zero point Programming and Relearning.
53. PERFORM PARKING BRAKE SHOE BEDDING
(a) Perform parking brake shoe bedding Programming and Relearning.
54. ADJUST HEADLIGHT AIMING
(a) Adjust headlight aiming Adjustments.
