Installation

BRAKE CONTROL: BRAKE CONTROL POWER SUPPLY: INSTALLATION

NOTICE:
While the battery is connected, even if the engine switch is off, the brake control system activates when the brake pedal is depressed or the door courtesy switch turns on. Therefore during servicing of the brake system components, do not operate the brake pedal and open/close the doors while the battery is connected.

1. INSTALL NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET

(a) Install the 2 brackets with the 4 bolts.





Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

2. INSTALL BRAKE CONTROL POWER SUPPLY ASSEMBLY

(a) Connect the connector to the brake control power supply.

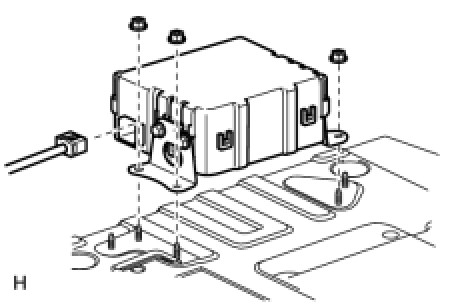

(b) Install the brake control power supply with the 3 nuts.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

3. INSTALL BRAKE CONTROL POWER SUPPLY COVER

(a) If the brake control power supply is replaced, install a new cover as follows:

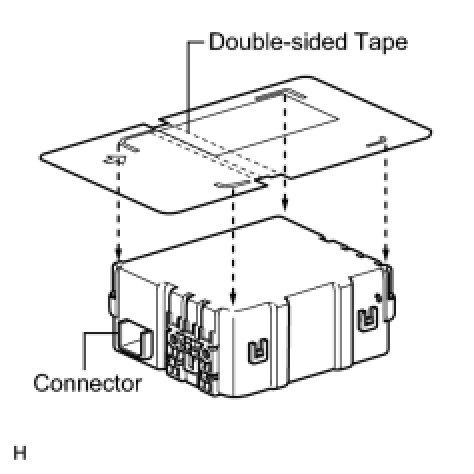

(1) Peel off the peeling paper of the double-sided tape.

(2) Place the cover so that the 4 corner lines on the cover align with the corners of the brake control power supply, and so that the cover arrow is above the connector.

4. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH Installation

5. INSTALL DECK TRIM SIDE BOARD LH Installation

6. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Installation

7. INSTALL REAR FLOOR FINISH PLATE Installation

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

9. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

10. CHECK AND CLEAR DTC

(a) Check and clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
