Installation

SEAT: AIR HOSE (for Ottoman): INSTALLATION

HINT
A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL AIR HOSE

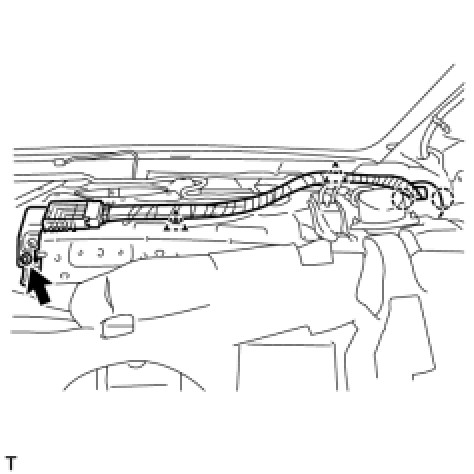

(a) Attach the 2 claws to install the air hose.





(b) Install the 2 hose clamps and bolt.

Torque : 9.8 Nm (100 kgf-cm, 87 in-lbf)

(c) for RHD:

Install the hose clamp and bolt.

Torque : 9.8 Nm (100 kgf-cm, 87 in-lbf)

(d) Install the 2 hose clamps.

(e) Connect the air hose connector.





2. INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH Installation

3. INSTALL ROOF SIDE NO. 2 AIR DUCT LH Installation

4. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH Installation

5. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH Installation

6. INSTALL REAR FLOOR FINISH PLATE Installation

7. INSTALL TOOL BOX (w/o Spare Tire)

8. INSTALL DECK BOARD ASSEMBLY (w/o Spare Tire)

9. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER Installation

10. INSTALL NO. 1 COOLER COVER (w/ Rear Cooler) Installation

11. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (w/o Rear Cooler) Installation

12. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY Installation

13. INSTALL DECK TRIM SIDE BOARD RH Installation

14. INSTALL DECK TRIM SIDE BOARD LH Installation

15. INSTALL ROPE HOOK Installation

16. INSTALL ROPE HOOK ASSEMBLY Installation

17. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Installation

18. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY Installation

19. INSTALL INNER ROOF SIDE GARNISH RH Installation

20. INSTALL INNER ROOF SIDE GARNISH LH Installation

21. INSTALL REAR SEAT SIDE GARNISH RH Installation

22. INSTALL REAR SEAT SIDE GARNISH LH Installation

23. INSTALL REAR DOOR SCUFF PLATE RH Installation

24. INSTALL REAR DOOR SCUFF PLATE LH Installation

25. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY (w/ Center Seat) Installation

26. INSTALL REAR SEATBACK ASSEMBLY RH Installation

27. INSTALL REAR SEAT CONSOLE BOX ASSEMBLY (w/ Rear Console Box) Installation

28. INSTALL REAR SEATBACK ASSEMBLY LH Installation

29. INSTALL REAR CENTER SEAT CUSHION ASSEMBLY (w/ Center Seat) Installation

30. INSTALL REAR SEAT CUSHION ASSEMBLY RH Installation

31. INSTALL REAR SEAT CUSHION ASSEMBLY LH Installation

32. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

33. INSTALL COWL TOP VENTILATOR LOUVER Installation

34. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.

35. CHECK REAR SEAT ASSEMBLY

(a) Check the power seat system Operation Check.

(b) Check the climate control seat system Operation Check.

(c) Check the seat vibration system Operation Check.
