Removal

WINDSHIELD / WINDOWGLASS: BACK WINDOW GLASS: REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

2. REMOVE REAR SEAT HEADREST ASSEMBLY

3. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY

4. REMOVE REAR SEATBACK ASSEMBLY Removal

5. REMOVE REAR DOOR SCUFF PLATE LH Removal

6. REMOVE REAR DOOR SCUFF PLATE RH

7. REMOVE REAR SEAT SIDE GARNISH LH Removal

8. REMOVE REAR SEAT SIDE GARNISH RH

9. REMOVE ROOF SIDE INNER GARNISH LH Removal

10. REMOVE ROOF SIDE INNER GARNISH RH

11. REMOVE CENTER STOP LIGHT SET Removal

12. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade) Removal

13. REMOVE NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade) Removal

14. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade) Removal

15. REMOVE SPOT LIGHT ASSEMBLY Removal

16. REMOVE COAT HOOK Removal

17. REMOVE ASSIST GRIP SUB-ASSEMBLY Removal

18. REMOVE ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)

It is not necessary to completely remove the roof headlining. Slightly lower the rear section of the roof headlining so that the back window glass can be removed Removal.

19. REMOVE ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)

It is not necessary to completely remove the roof headlining. Slightly lower the rear section of the roof headlining so that the back window glass can be removed Removal.

20. REMOVE AMPLIFIER ANTENNA ASSEMBLY Removal

21. REMOVE NO. 1 BACK WINDOW MOULDING

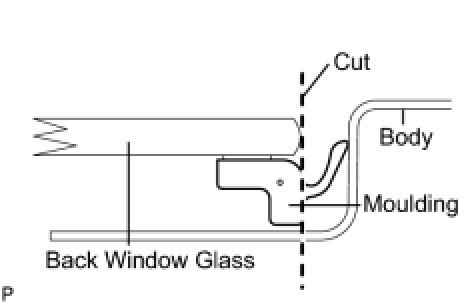

(a) Using a knife, cut off the moulding as shown in the illustration.





NOTICE:
Do not damage the vehicle body with the knife.

(b) Remove the remaining moulding.

HINT
When removing, make a partial cut, then pull and remove it by hand.

22. REMOVE BACK WINDOW GLASS

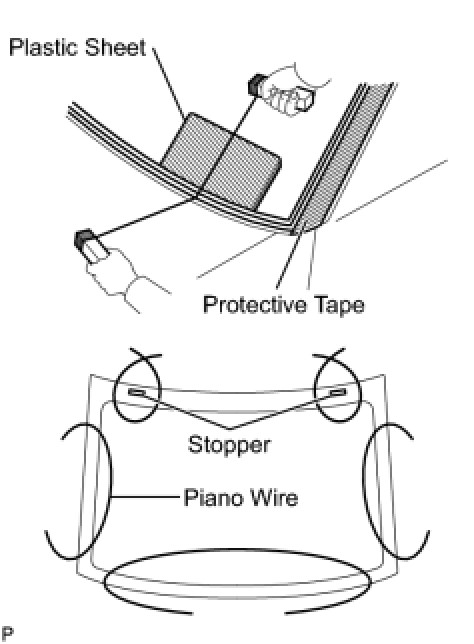

(a) Pass a piano wire between the vehicle body and glass from the interior.





(b) Tie both wire ends to wooden blocks or similar objects.

NOTICE:
* When separating the glass from the vehicle, be careful not to damage the vehicle's paint or interior/exterior ornaments.
* To prevent the instrument panel from being scratched when removing the glass, place a plastic sheet between the piano wire and instrument panel.

HINT
Apply protective tape to the outer surface to prevent the surface from being scratched.

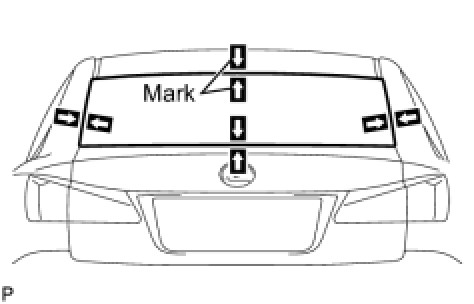

(c) Place matchmarks over the glass and vehicle body on the locations indicated in the illustration.





HINT
Matchmarks do not need to be placed if the glass is not going to be reused.

(d) Cut off the adhesive by pulling the piano wire around the glass.

(e) Using a suction cup, remove the glass.

NOTICE:
Leave as much adhesive on the vehicle body as possible when removing the glass.

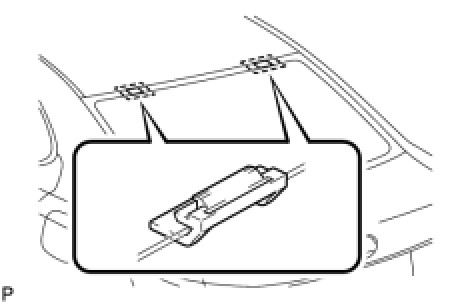

23. REMOVE NO. 2 BACK WINDOW GLASS STOPPER

(a) Using a scraper, remove the No. 2 back window glass stoppers.

24. REMOVE NO. 1 BACK WINDOW GLASS STOPPER

(a) Remove the No. 1 back window glass stoppers.





25. CLEAN BACK WINDOW GLASS

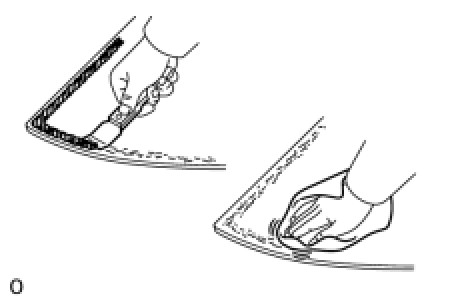

(a) Using a scraper, remove the damaged stoppers and adhesive sticking to the glass.

(b) Clean the outer edges of the glass with non-residue type solvent.





NOTICE:
* Do not touch the glass surface after cleaning it.
* Be careful not to damage the glass.
* Even if using new glass, clean it with non-residue type solvent.
