Installation

AIR CONDITIONING: ROOM TEMPERATURE SENSOR: INSTALLATION

1. INSTALL ROOM TEMPERATURE SENSOR

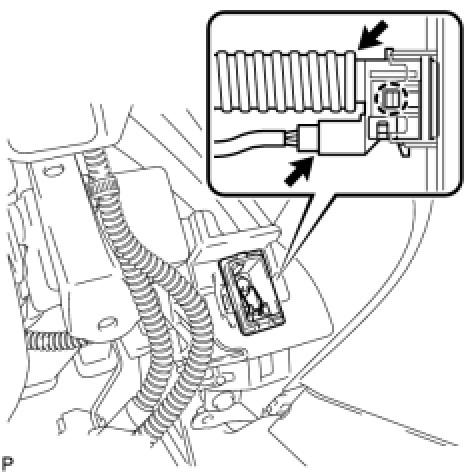

(a) Install the sensor with the claw.





(b) Connect the connector and attach the air hose.

2. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation

3. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation

4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

5. INSTALL SIDE INSTRUMENT PANEL LH Installation

6. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation

7. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) Installation

8. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination) Installation

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

10. INSPECT SRS WARNING LIGHT

Diagnosis System
