Removal

WINDSHIELD / WINDOWGLASS: QUARTER WINDOW GLASS: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the RH side.

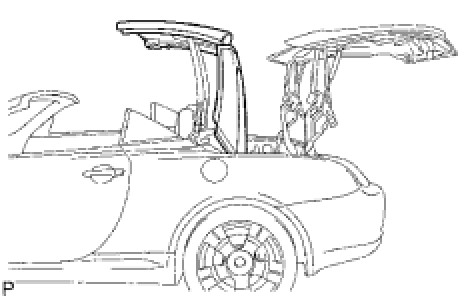

1. OPEN ROOF PANEL HALFWAY





(a) Refer to the MANUAL OPERATING procedures and half open the roof.
2. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
3. REMOVE REAR SEAT HEADREST PLATE COVER Removal
4. REMOVE WIND DEFLECTOR BOARD ASSEMBLY Removal
5. REMOVE REAR SEAT HEADREST PLATE Removal
6. REMOVE REAR SEAT HEADREST ASSEMBLY Removal
7. REMOVE REAR SEATBACK ASSEMBLY Removal
8. REMOVE DOOR SCUFF PLATE ASSEMBLY RH Disassembly
9. REMOVE QUARTER TRIM PANEL ASSEMBLY FRONT RH Removal

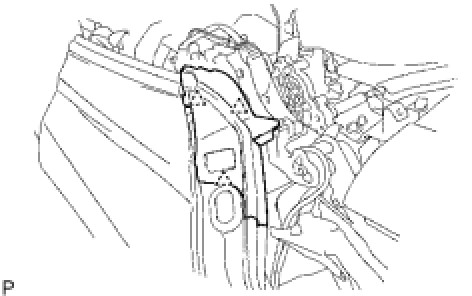

10. REMOVE CENTER PILLAR UPPER END WEATHERSTRIP RH
(a) Using a clip remover, detach the 4 clips.
(b) Remove the weatherstrip.

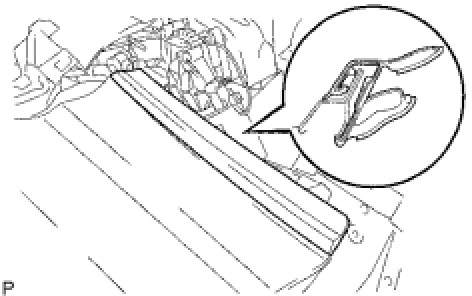

11. REMOVE QUARTER BELT MOULDING RH
(a) Using a moulding remover, remove the moulding.

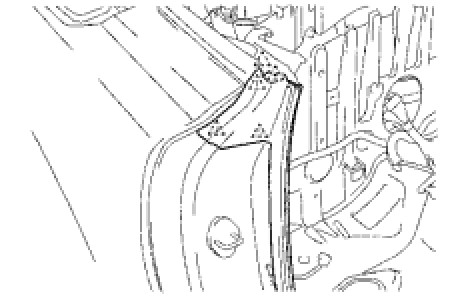

12. REMOVE LUGGAGE COMPARTMENT DOOR WEATHERSTRIP
(a) Using a clip remover, detach the 3 clips.
(b) Remove the front part of the door weatherstrip.
13. REMOVE REAR SPEAKER ASSEMBLY Removal

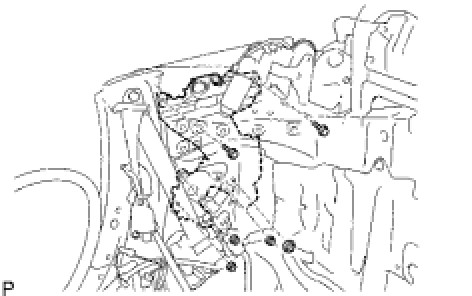

14. REMOVE QUARTER WINDOW ASSEMBLY RH
(a) Remove the connector and grommet.
(b) Remove the 2 bolts and 4 nuts.
(c) Remove the quarter window.

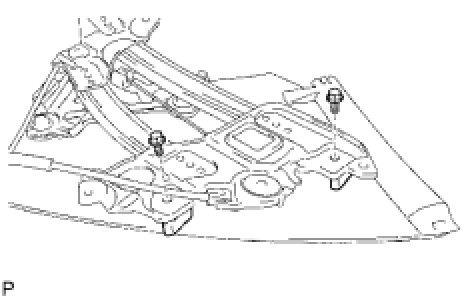

15. REMOVE QUARTER WINDOW STOP
(a) Remove the 2 bolts and 2 window stops.





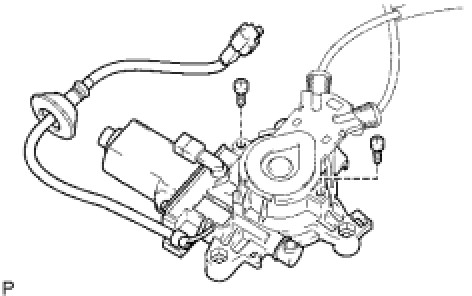

16. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
(a) Remove the 2 screws, regulator base plate and regulator motor.

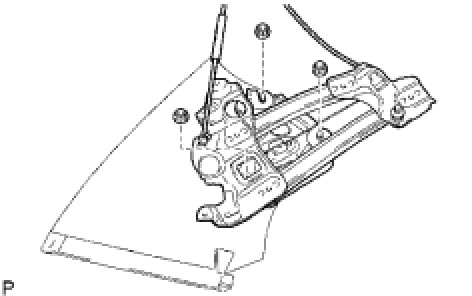

17. REMOVE QUARTER WINDOW ASSEMBLY RH

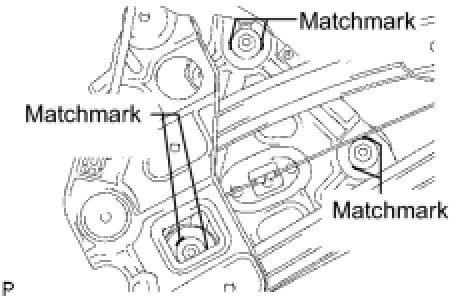

(a) When reusing the regulator:
Place matchmarks on the regulator to indicate the position of the nuts.





(b) Remove the 3 nuts and quarter window.
