Retractable Hardtop System

CONVERTIBLE: RETRACTABLE HARDTOP SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

Sliding roof control ECU

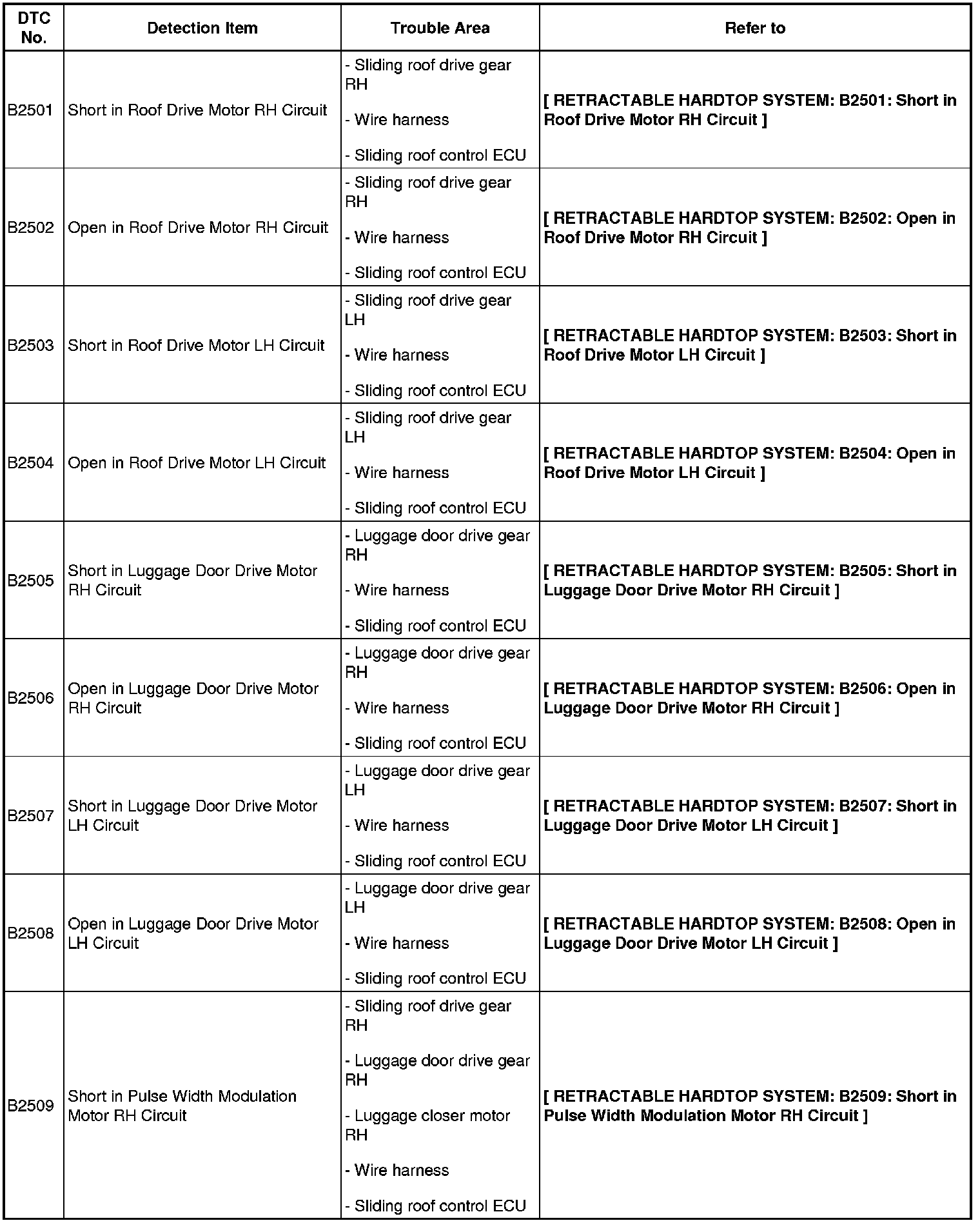

B2501-B2509:

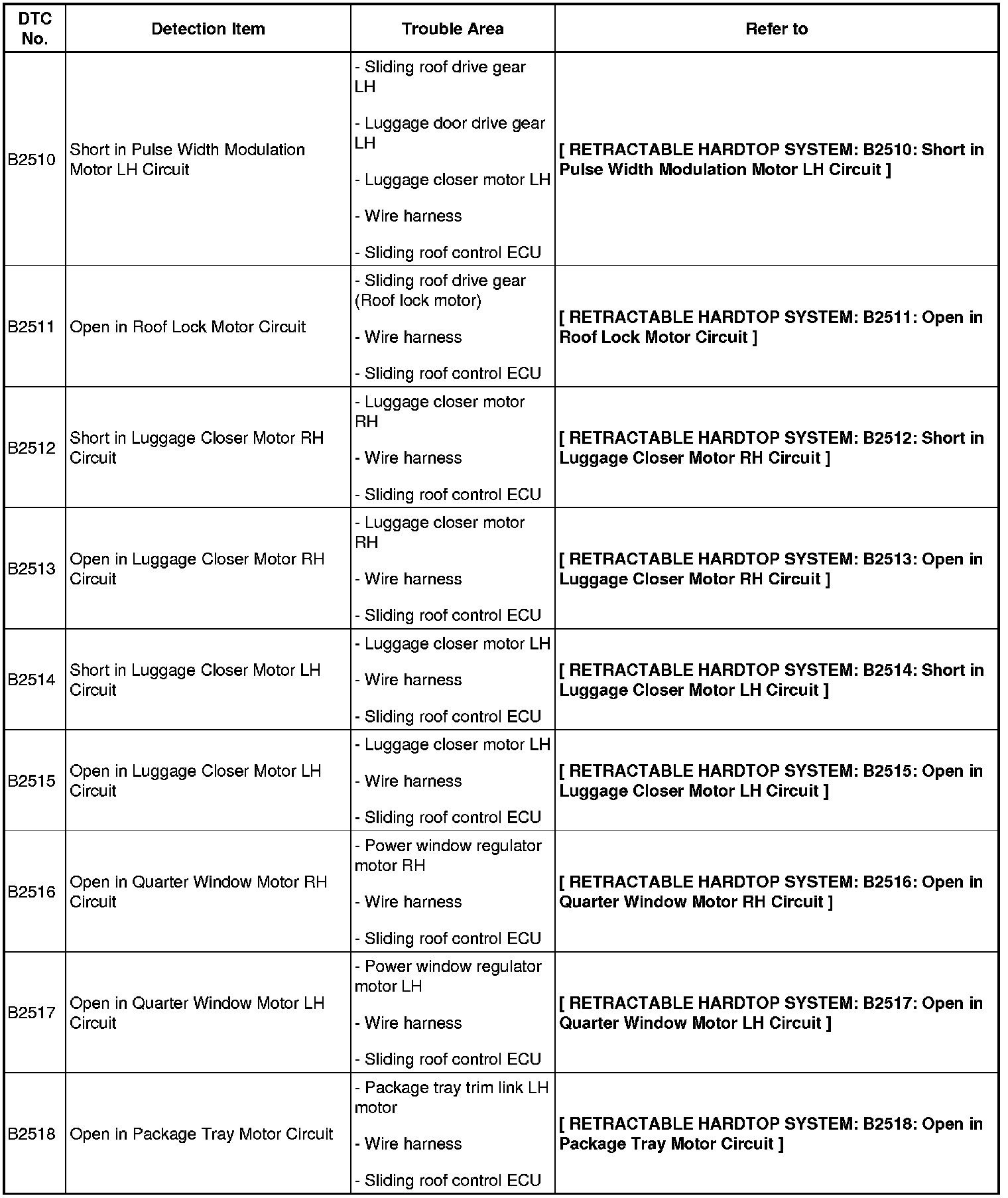

B2510-B2518:

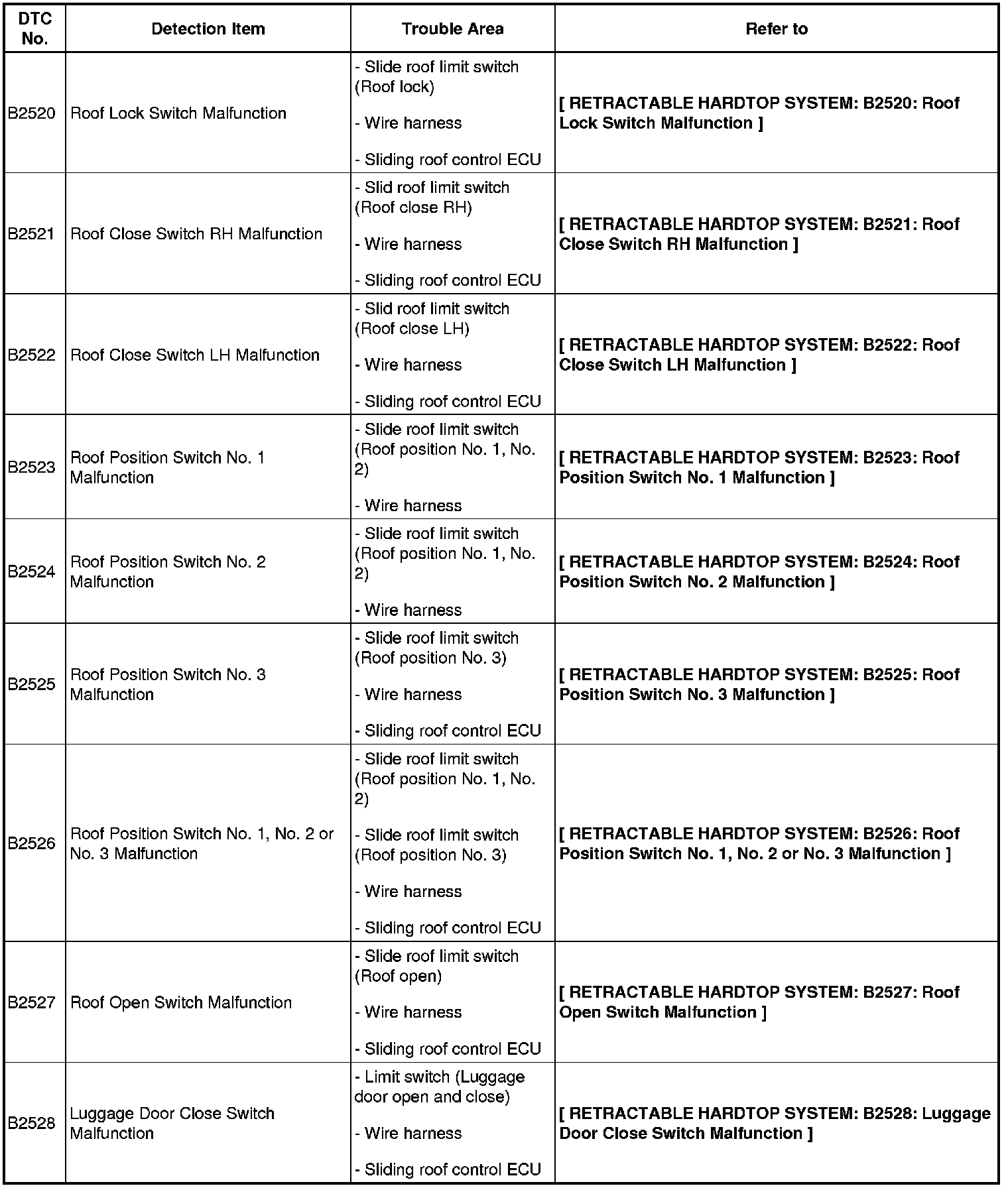

B2520-B2526:

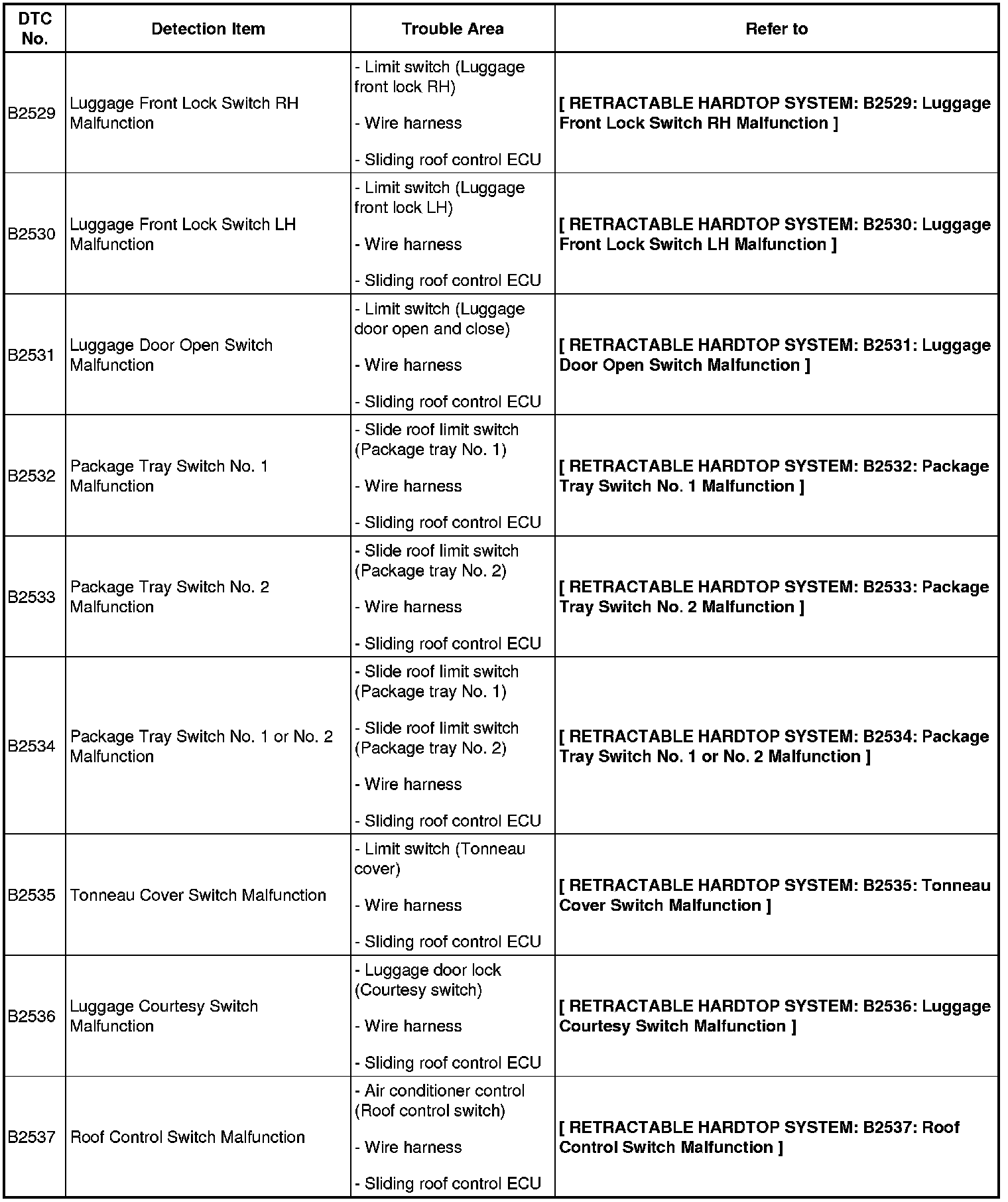

B2529-B2537:

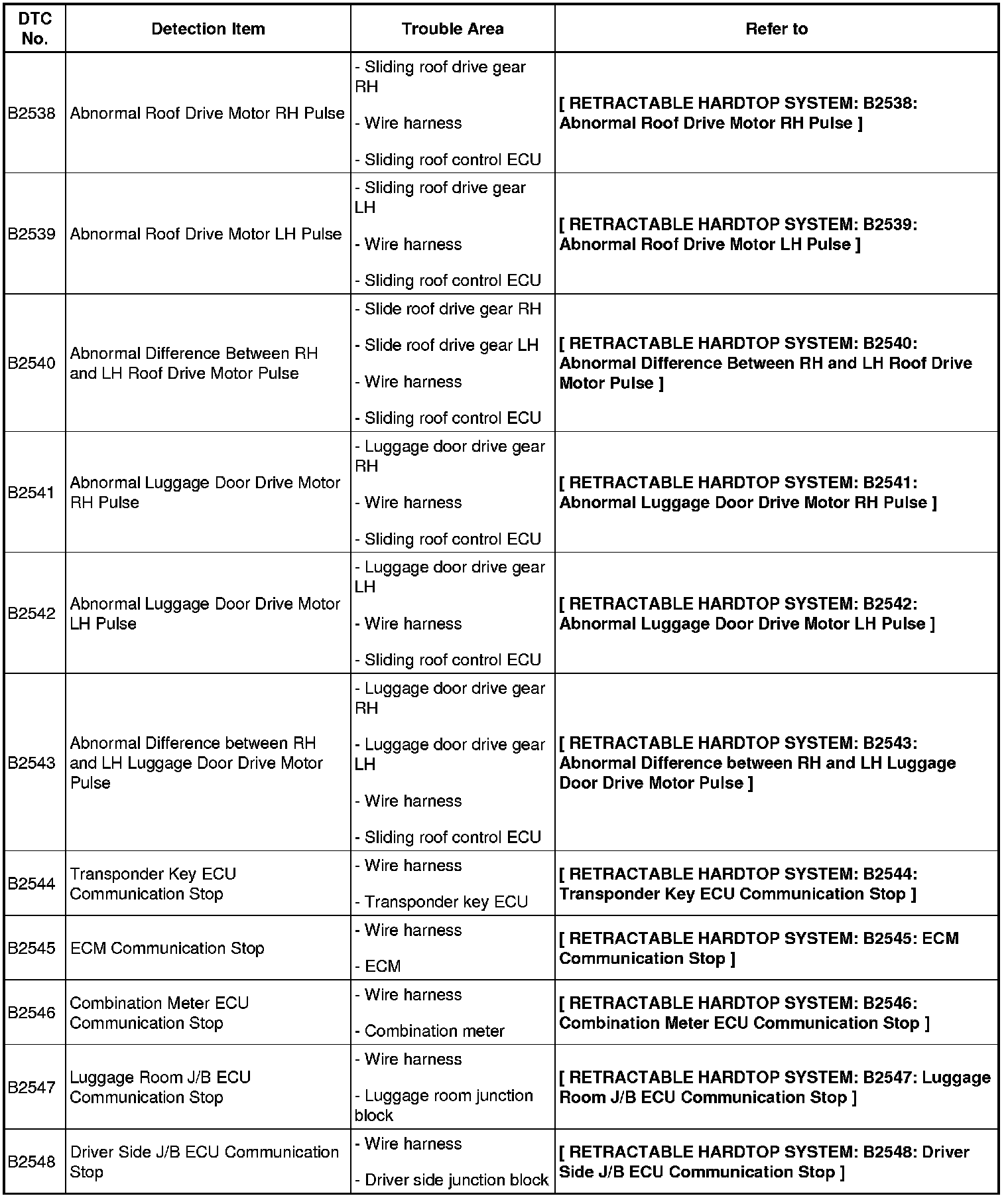

B2538-B2548:

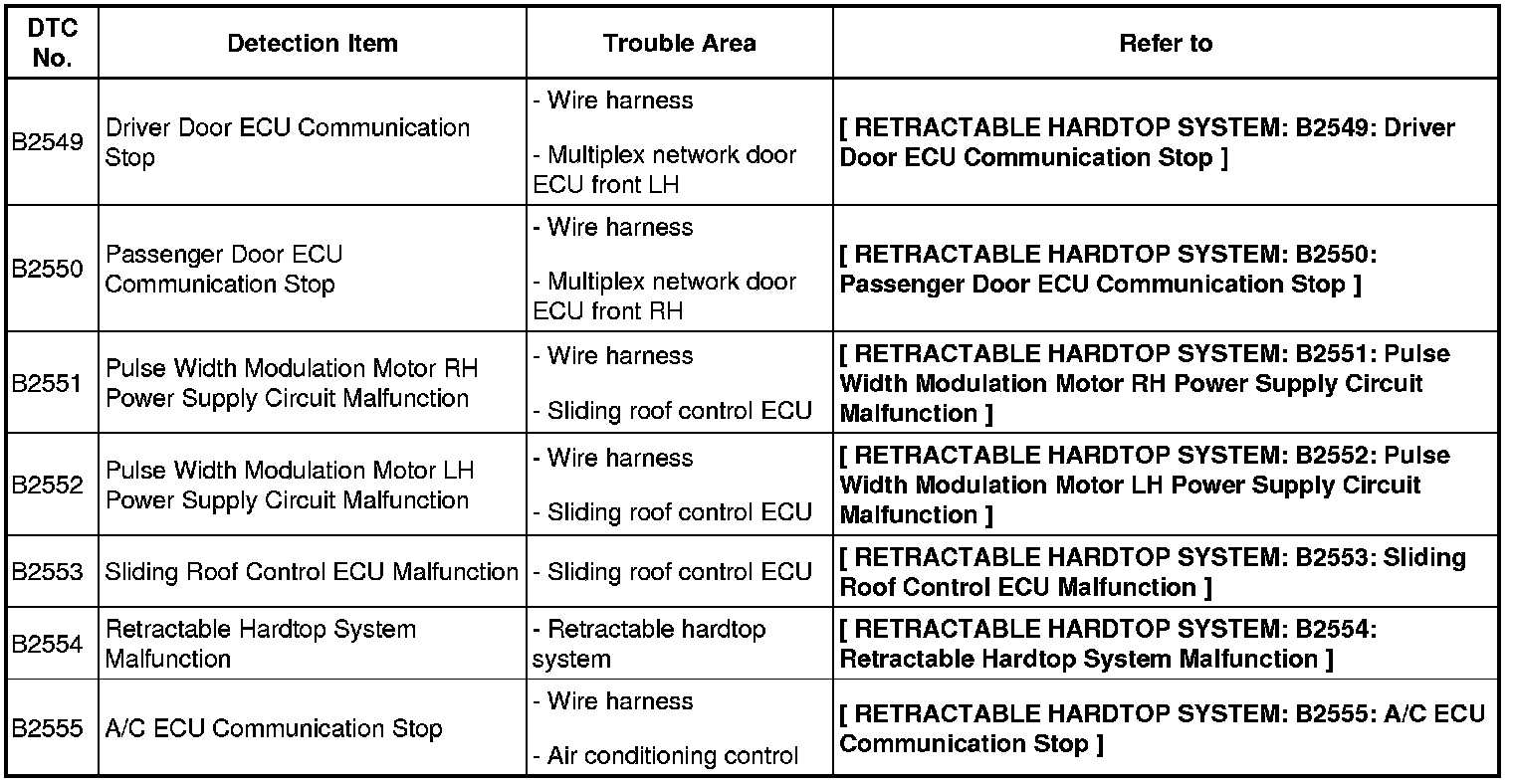

B2549-B2555:
