Removal

OTHER SYSTEM: CLOCK: REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal
4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal
6. REMOVE NO. 3 BOX PANEL Removal
7. REMOVE REAR CONSOLE PANEL UPPER Removal
8. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER Removal
9. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET Removal
10. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY WITH BRACKET (W/O Multi-display) Removal
11. REMOVE DISPLAY AND NAVIGATION ASSEMBLY WITH BRACKET (W/ Multi-display) Removal





12. REMOVE CLOCK ASSEMBLY

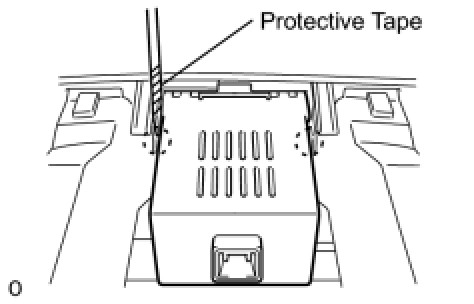

(a) Using a screwdriver, detach the 2 claws and remove the clock.
HINT: Tape the screwdriver tip before use.
