Removal

PARK ASSIST / MONITORING: CLEARANCE WARNING BUZZER (for Rear Side): REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE REAR SEAT ASSEMBLY (for Ottoman)
Remove the rear seat Removal.
4. REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)
Remove the rear seat Removal.
5. REMOVE REAR SEAT ASSEMBLY (for Power Seat)
Remove the rear seat Removal.
6. REMOVE REAR DOOR SCUFF PLATE LH Removal
7. REMOVE REAR DOOR SCUFF PLATE RH Removal
8. REMOVE REAR SEAT SIDE GARNISH LH Removal
9. REMOVE REAR SEAT SIDE GARNISH RH Removal
10. REMOVE ROOF SIDE GARNISH INNER LH Removal
11. REMOVE ROOF SIDE GARNISH INNER RH Removal
12. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY Removal

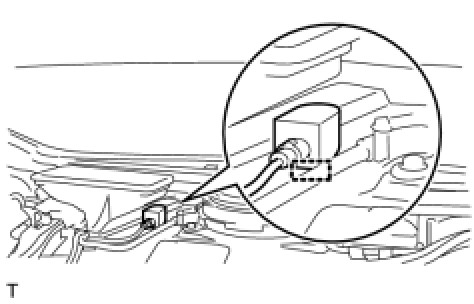

13. REMOVE NO. 2 CLEARANCE WARNING BUZZER





(a) Disconnect the connector.
(b) Using a clip remover, detach the claw and remove the warning buzzer.
