Installation

METER: LIGHT CONTROL RHEOSTAT: INSTALLATION

INSTALLATION

1. INSTALL LIGHT CONTROL RHEOSTAT

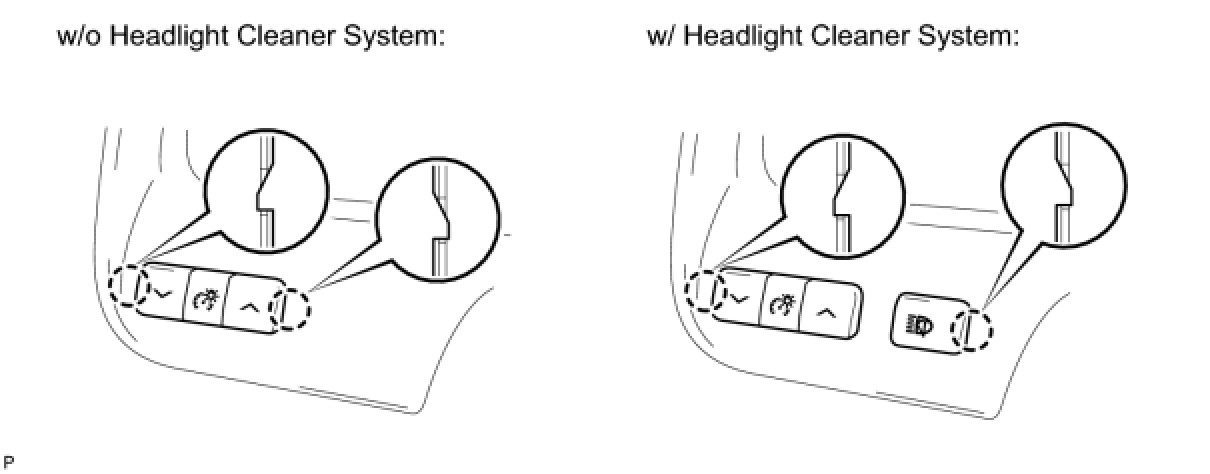

(a) Attach the 2 claws to install the rheostat.





2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation

3. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY Installation

4. INSTALL STEERING COLUMN COVER (w/o Driver Monitor Camera) Installation

5. INSTALL STEERING COLUMN COVER (w/ Driver Monitor Camera) Installation
