Symptom Related Diagnostic Procedures








DIFFERENTIAL: DIFFERENTIAL SYSTEM:

PROBLEM SYMPTOMS TABLE

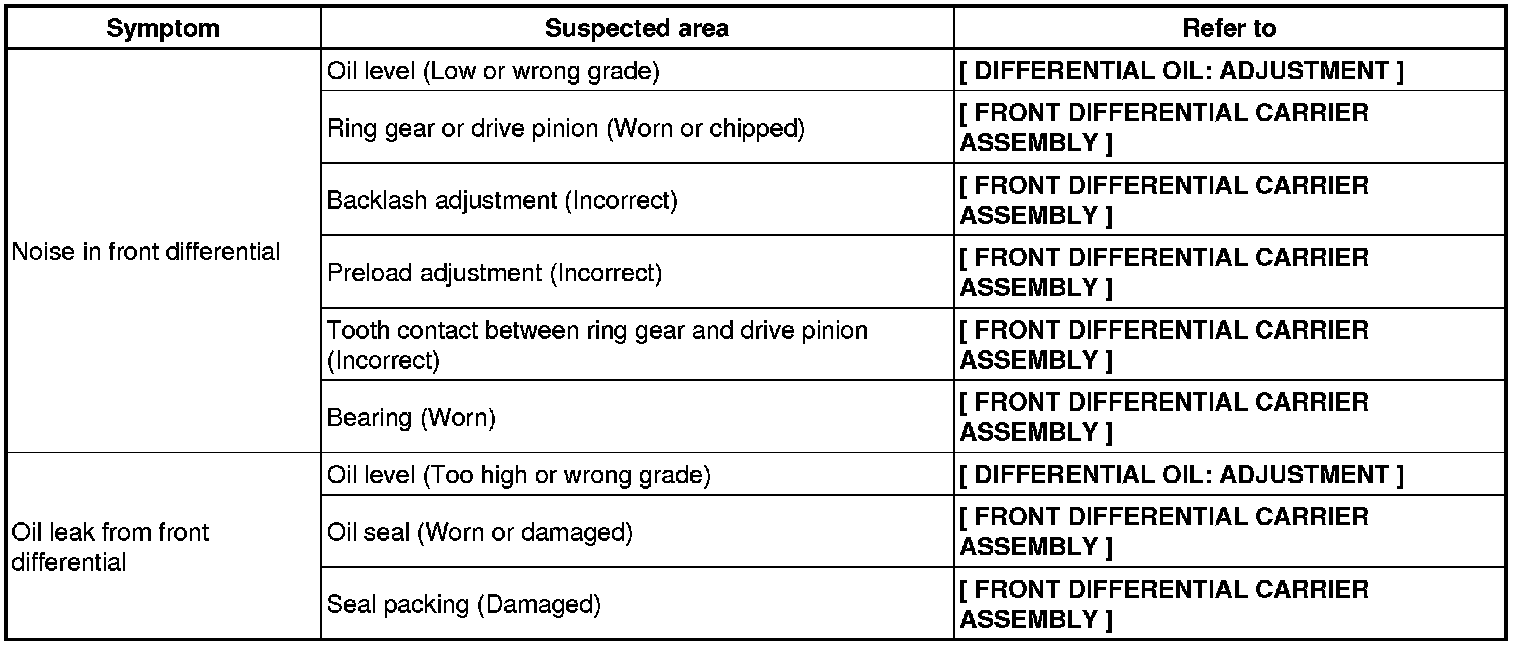

Front Differential (for 4WD)

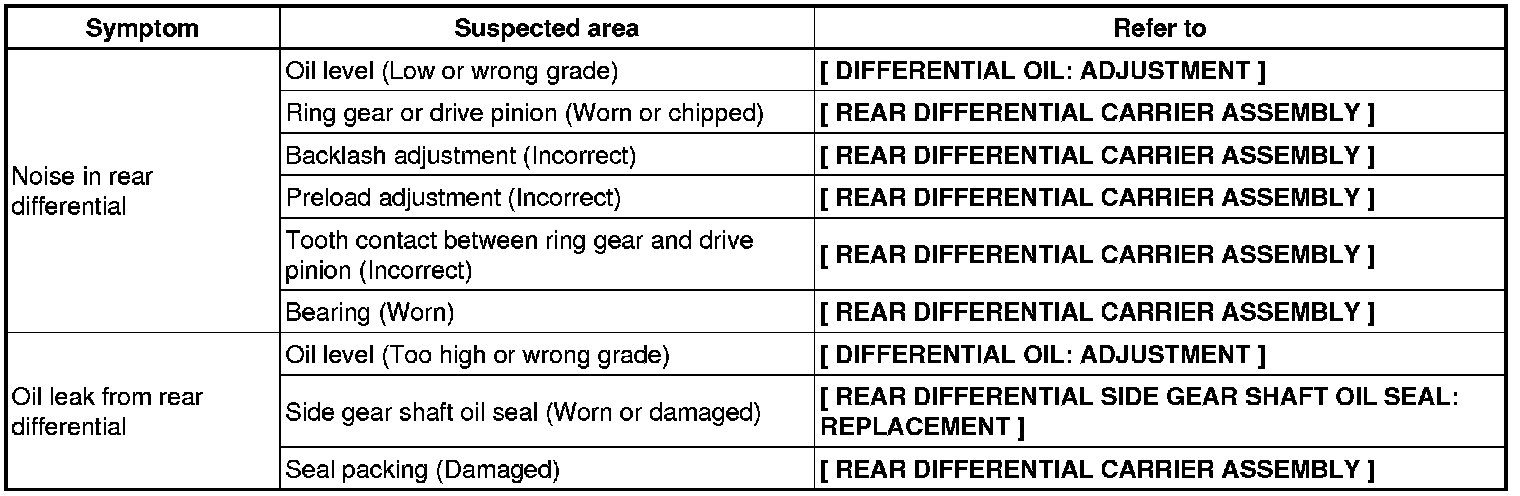

Rear Differential (for 4GR-FSE)





Rear Differential (for 2GR-FSE)
