NAVIGATION SYSTEM:
DIAGNOSTIC TROUBLE CODE CHART
COMMUNICATION DIAGNOSIS

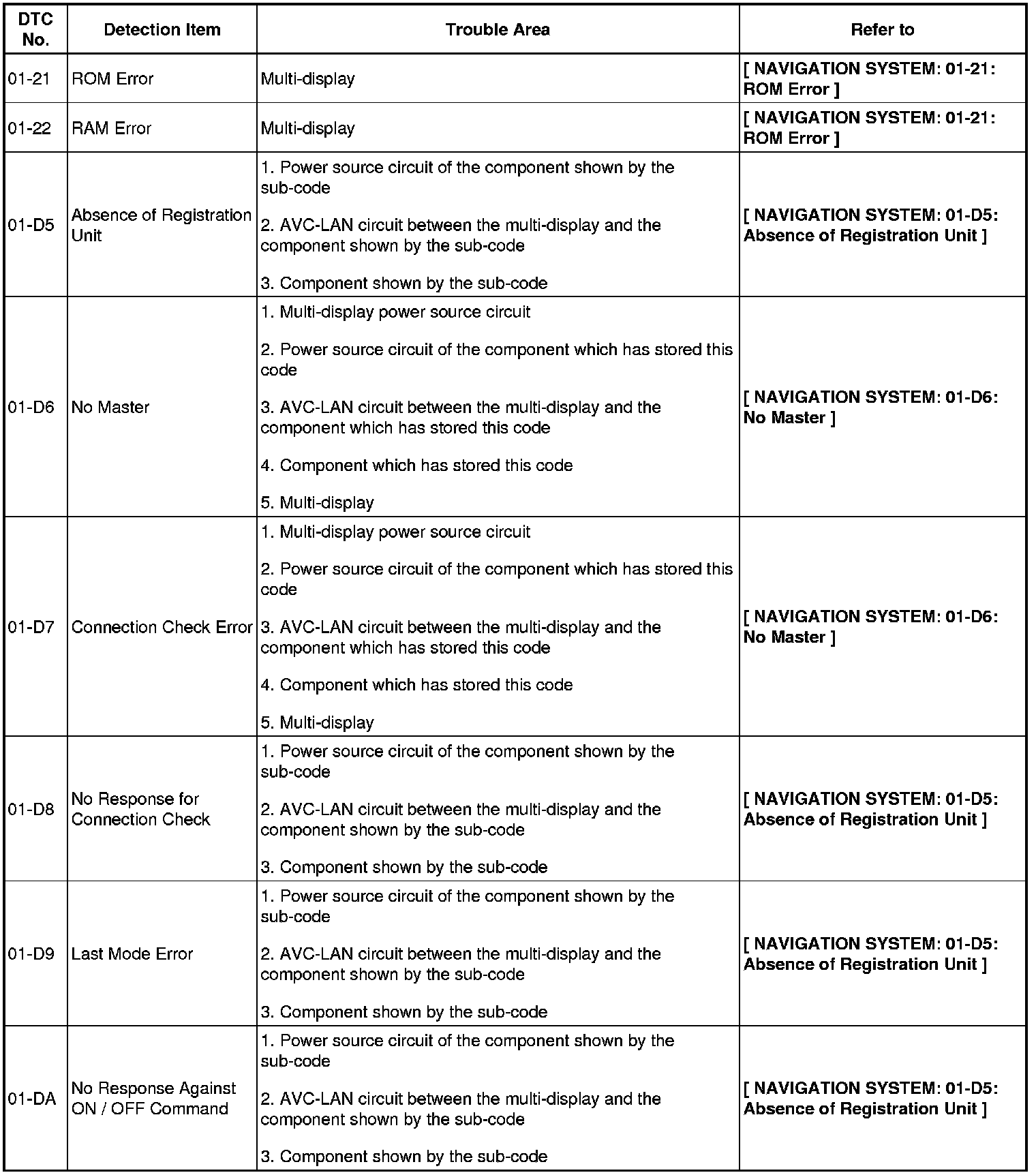

DTC 01-21 - 01-DA:

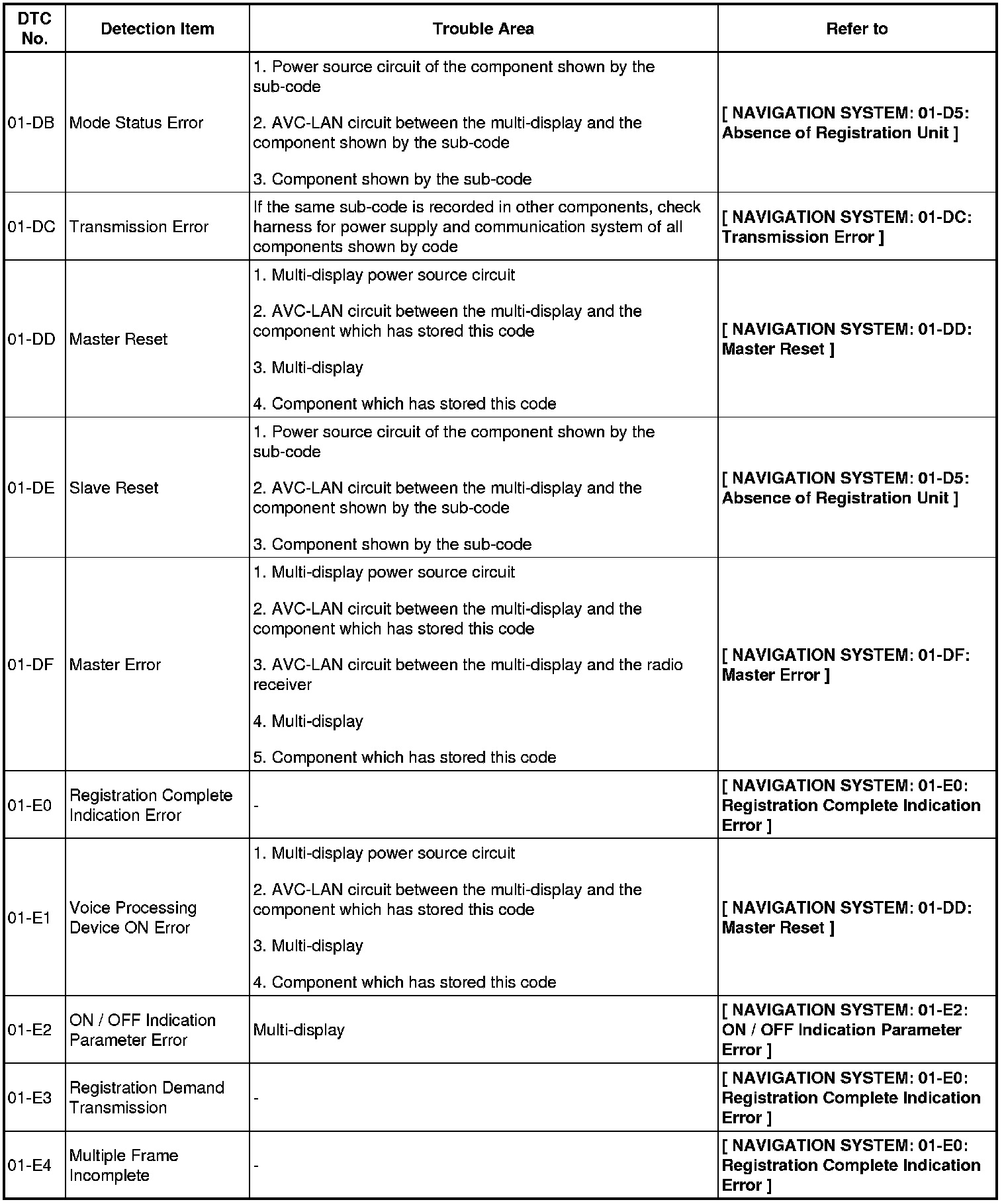

DTC 01-DB - 01-E4:
SW

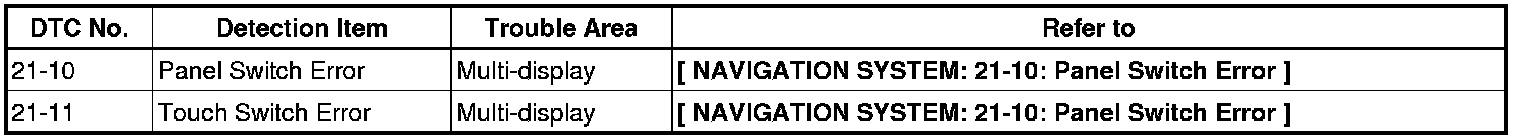

DTC 21-10 - 21-11:
SW WITH NAME
DTC 23-10 - 23-11:
SW CONVERTING
DTC 24-10 - 24-11:
COMMAND SW

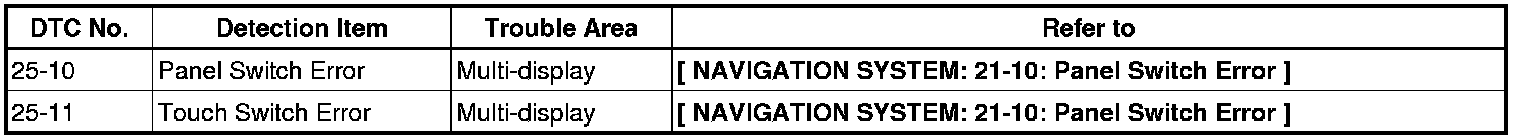

DTC 25-10 - 25-11:
FRONT MONITOR

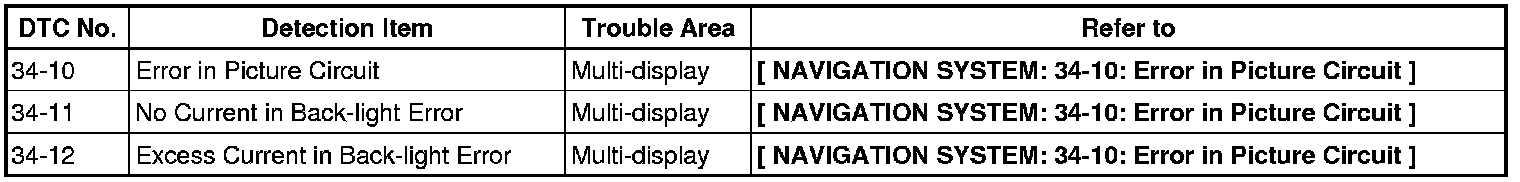

DTC 34-10 - 34-12:
DVD CHANGER

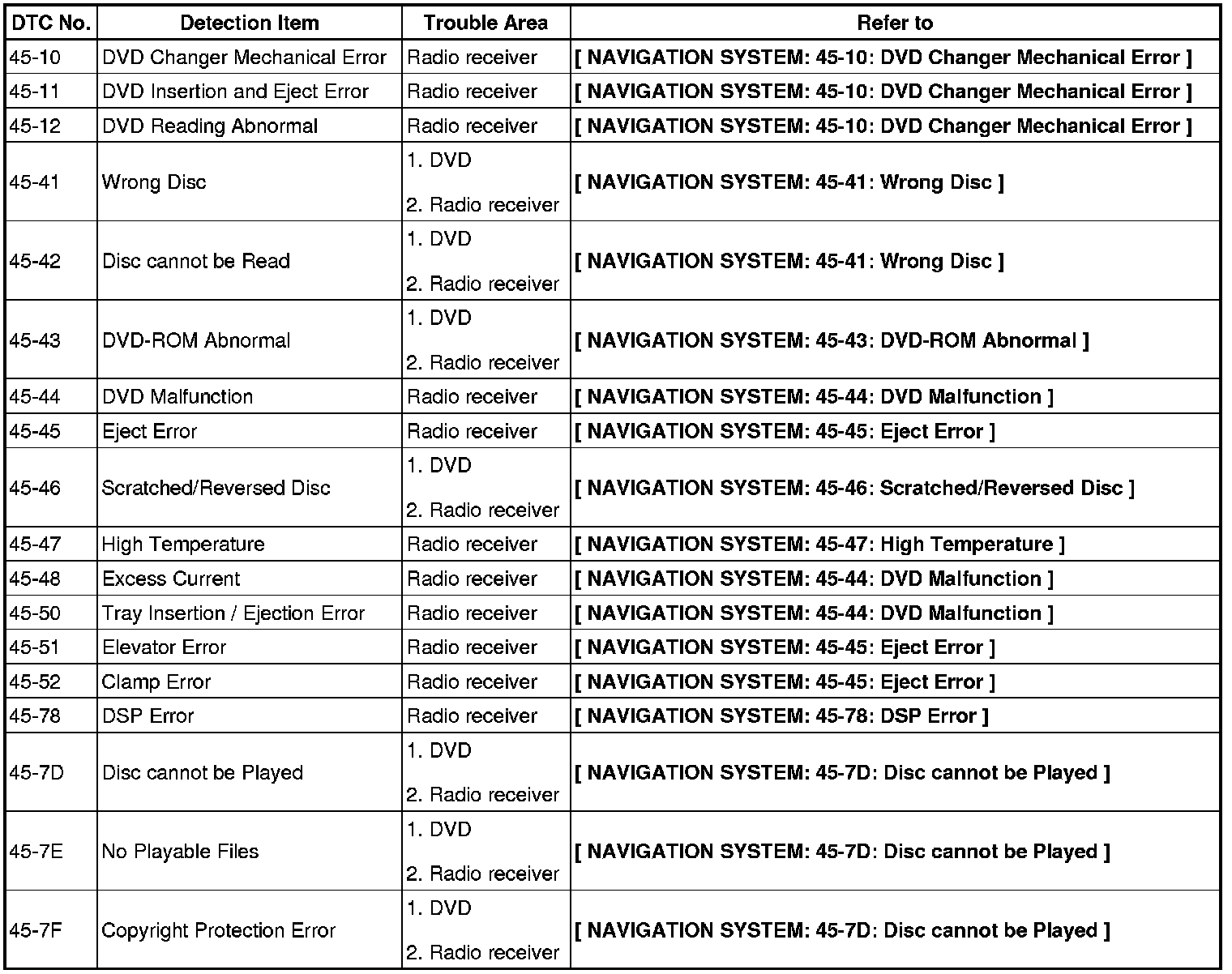

DTC 45-10 - 45-7F:
TELEPHONE

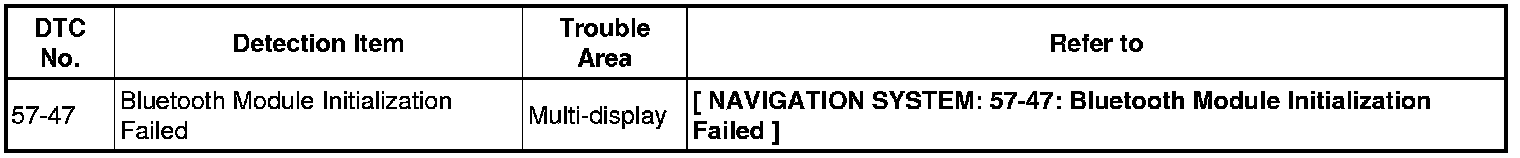

DTC 57-47:
NAVI

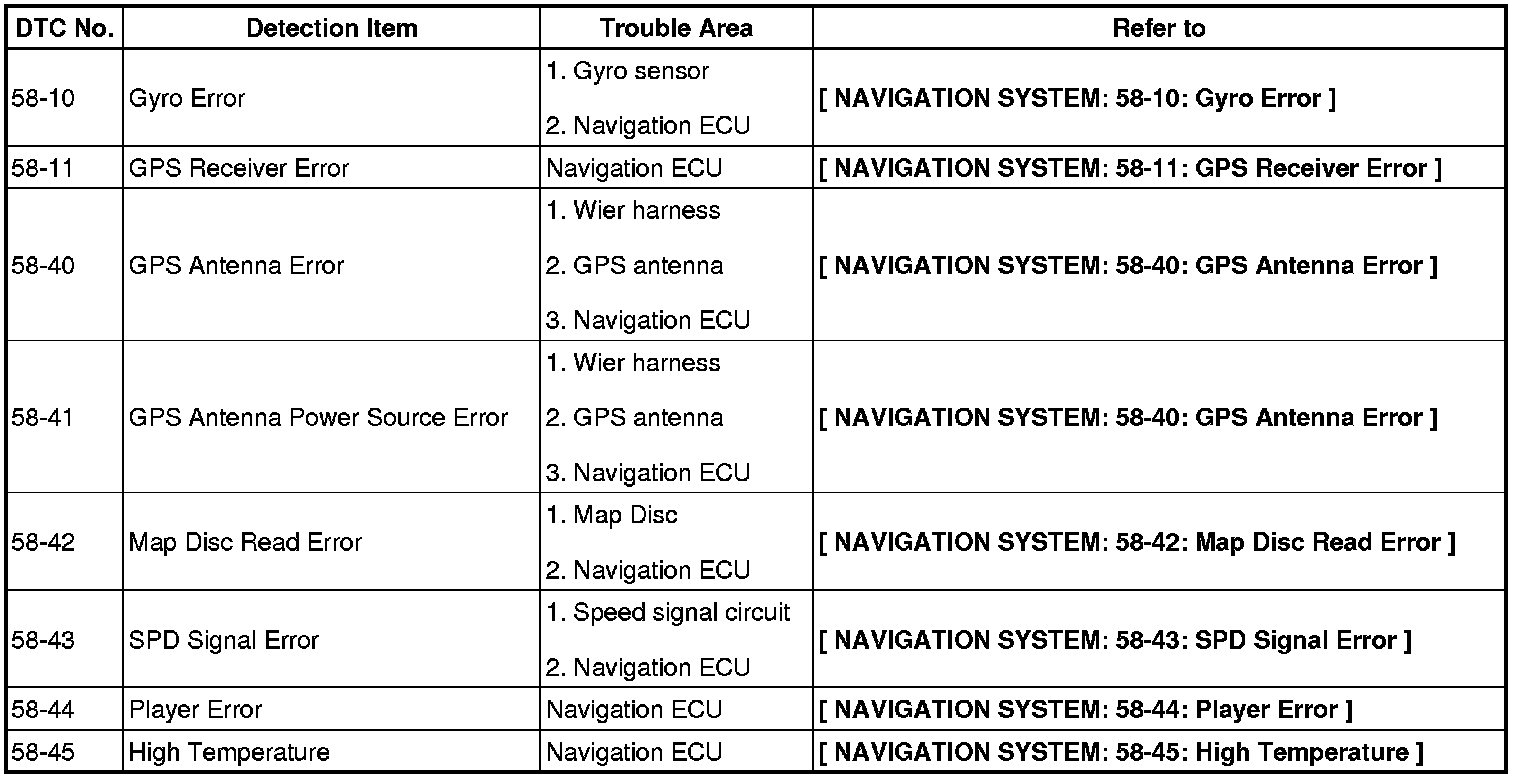

DTC 58-10 - 58-45:
RADIO UNIT

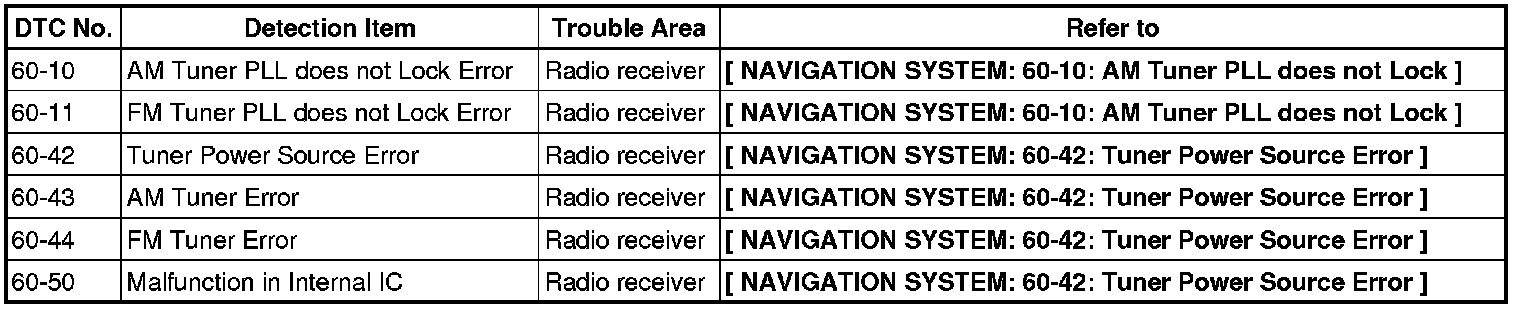

DTC 60-10 - 60-50:
IN-DASH CD CHANGER

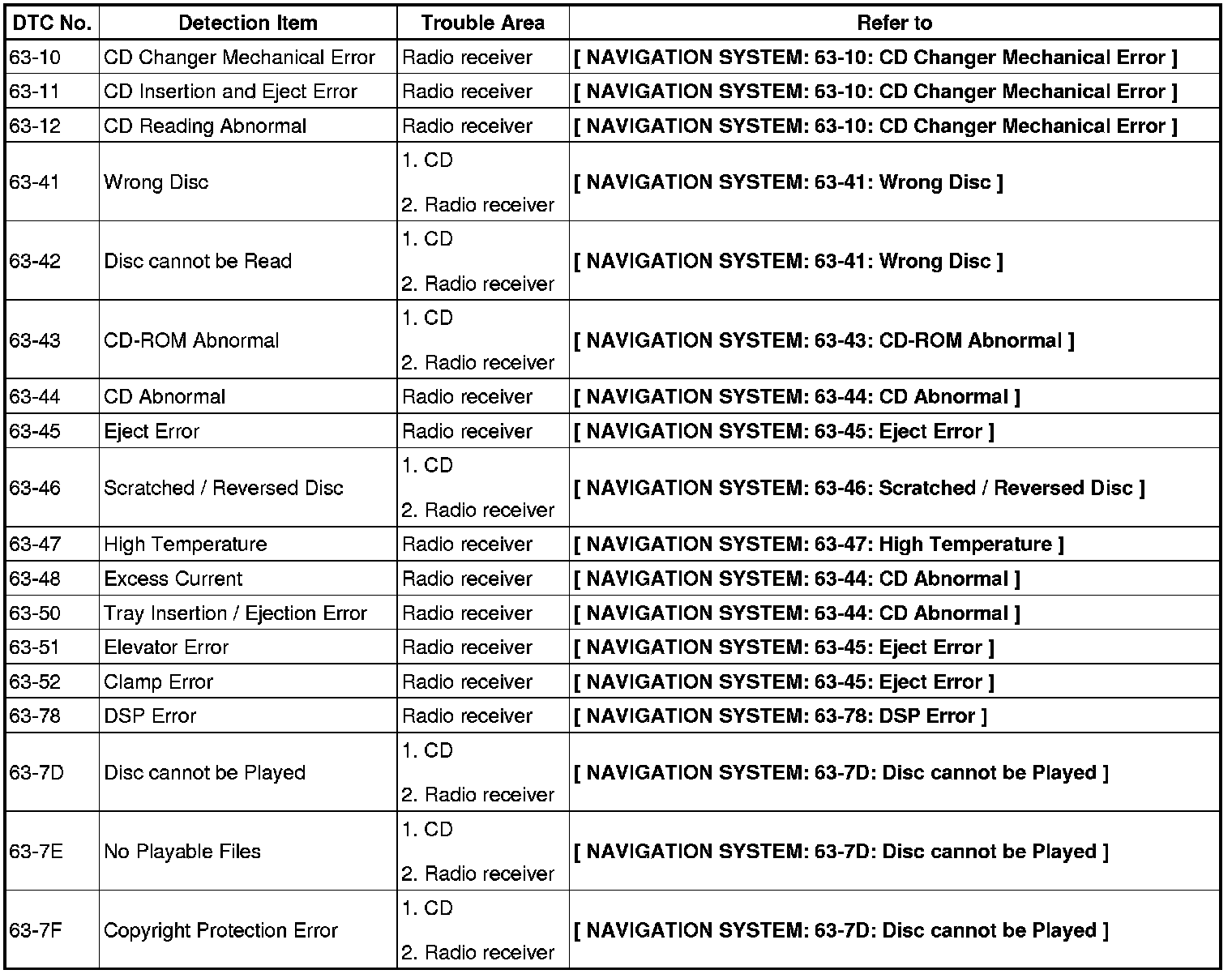

DTC 63-10 - 63-7F:
GPS
DTC 80-10 - 80-45:
CAMERA UNIT

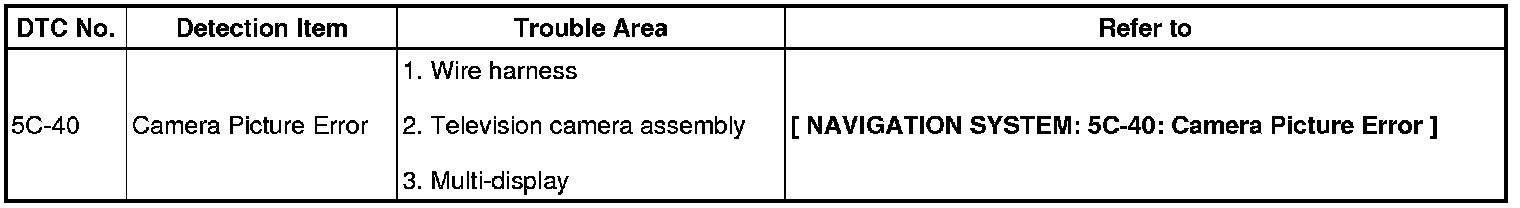

DTC 5C-40:
VOL
