Installation

1UR-FSE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSOR: INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

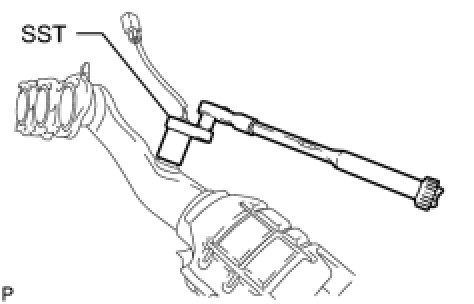

(a) Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.
SST: 09224-00010
without SST - Torque: 44 Nm (449 kgf-cm, 32 ft-lbf)
with SST - Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)
NOTICE:
Use a torque wrench with a fulcrum length of 300 mm (11.81 in.)

2. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH (for Bank 1 Sensor 1) Installation

3. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR (for Bank 1 Sensor 1) Installation

4. CONNECT COMPRESSOR AND PULLEY (for Bank 1 Sensor 1) Installation

5. INSTALL AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

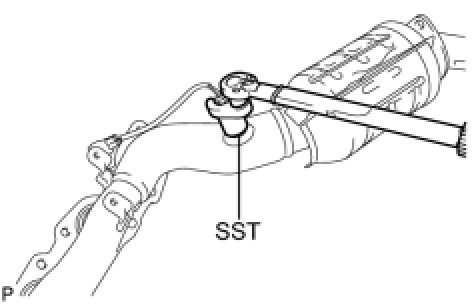

(a) Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.
SST: 09224-00010
without SST - Torque: 44 Nm (449 kgf-cm, 32 ft-lbf)
with SST - Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)
NOTICE:
Use a torque wrench with a fulcrum length of 300 mm (11.81 in.)

6. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH (for Bank 2 Sensor 1) Installation

7. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR (for Bank 2 Sensor 1) Installation

8. INSTALL OIL LEVEL DIPSTICK GUIDE SUB-ASSEMBLY (for Bank 2 Sensor 1) Installation

9. INSTALL GENERATOR (for Bank 2 Sensor 1)
Installation
10. INSTALL STEERING SLIDING YOKE SUB-ASSEMBLY Installation

11. INSTALL FRONT EXHAUST PIPE ASSEMBLY Installation

12. CONNECT HEATED OXYGEN SENSOR (for Bank 2 Sensor 2) Installation

13. CONNECT HEATED OXYGEN SENSOR (for Bank 1 Sensor 2) Installation

14. INSTALL FRONT FLOOR COVER CENTER RH Installation

15. INSTALL FRONT FLOOR COVER CENTER LH Installation

16. INSTALL FRONT CENTER FLOOR BRACE Installation

17. INSTALL REAR NO. 1 FLOOR PANEL BRACE Installation

18. INSTALL FRONT ACTIVE STABILIZER CONTROL ACTUATOR ASSEMBLY (w/ Active Stabilizer System)
Installation
19. INSTALL FRONT STABILIZER BAR (w/o Active Stabilizer System)
Installation
20. INSTALL V-RIBBED BELT Installation

21. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation

22. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation

23. INSTALL NO. 1 AIR CLEANER INLET Installation

24. INSTALL REAR ENGINE UNDER COVER RH
25. INSTALL REAR ENGINE UNDER COVER LH
26. INSTALL NO. 2 ENGINE UNDER COVER
27. INSTALL ENGINE UNDER COVER
28. INSTALL ENGINE ROOM SIDE COVER RH Installation

29. INSTALL ENGINE ROOM SIDE COVER LH Installation

30. INSTALL COOL AIR INTAKE DUCT SEAL Installation

31. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

32. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

33. INSPECT FOR EXHAUST GAS LEAK
