A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Automatic Transmission System
Automatic Transmission System
DIAGNOSTIC TROUBLE CODE CHART

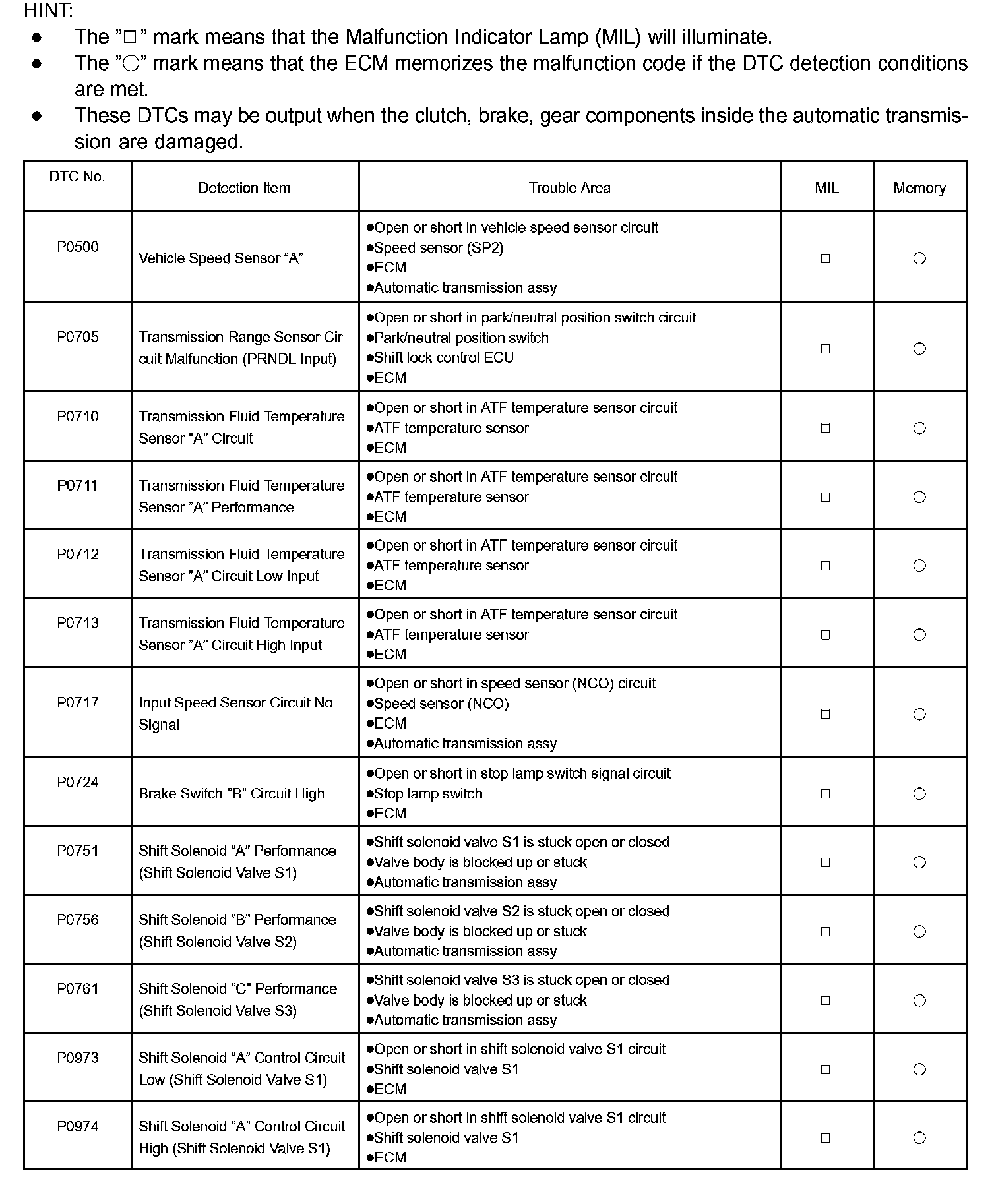

P0500 - P0974:

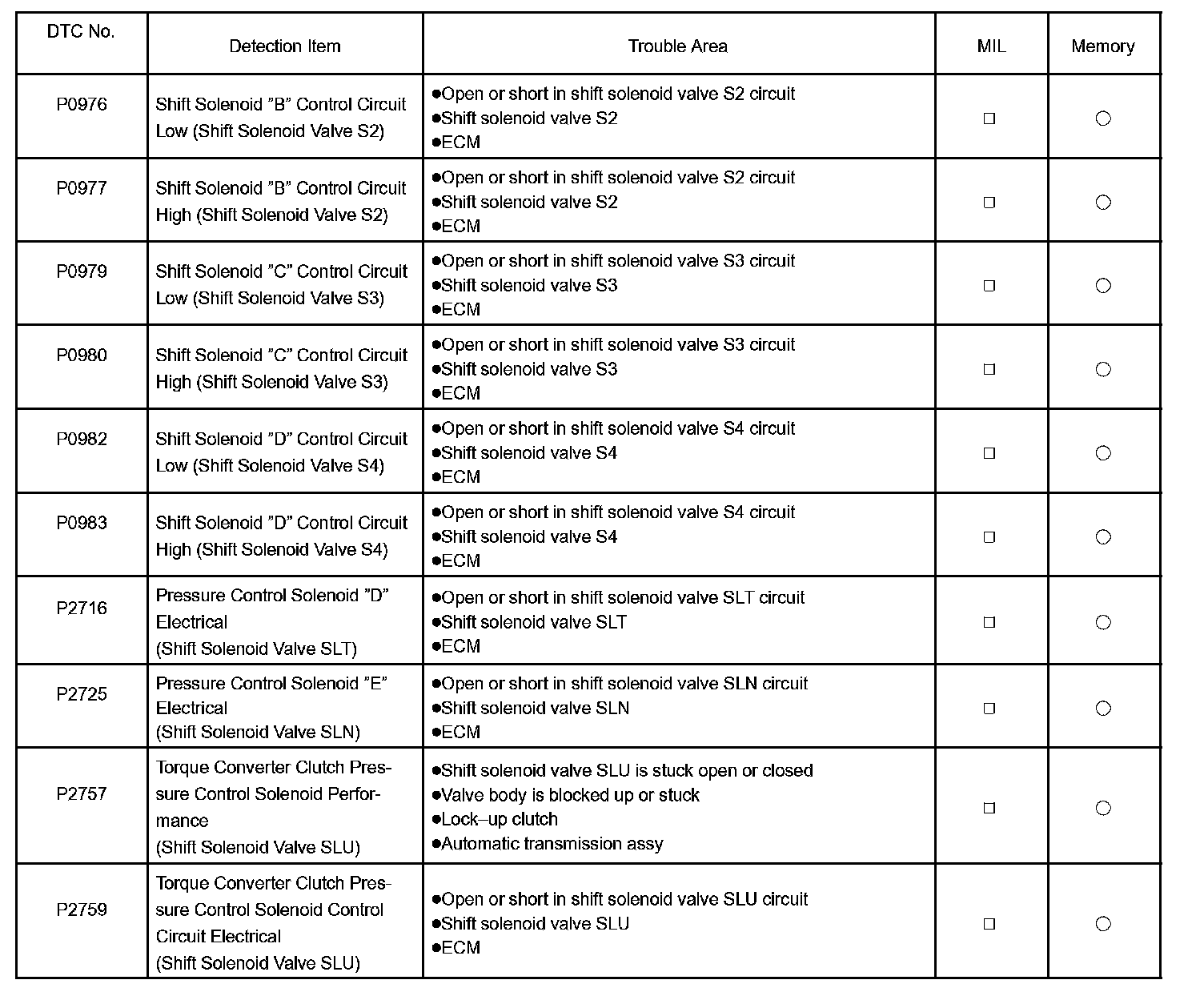

P0976 - P2759:
If a DTC is displayed during the DTC check, check the circuit listed in the table.
