SFI System

DIAGNOSTIC TROUBLE CODE CHART

HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.

P0010 - P0100:

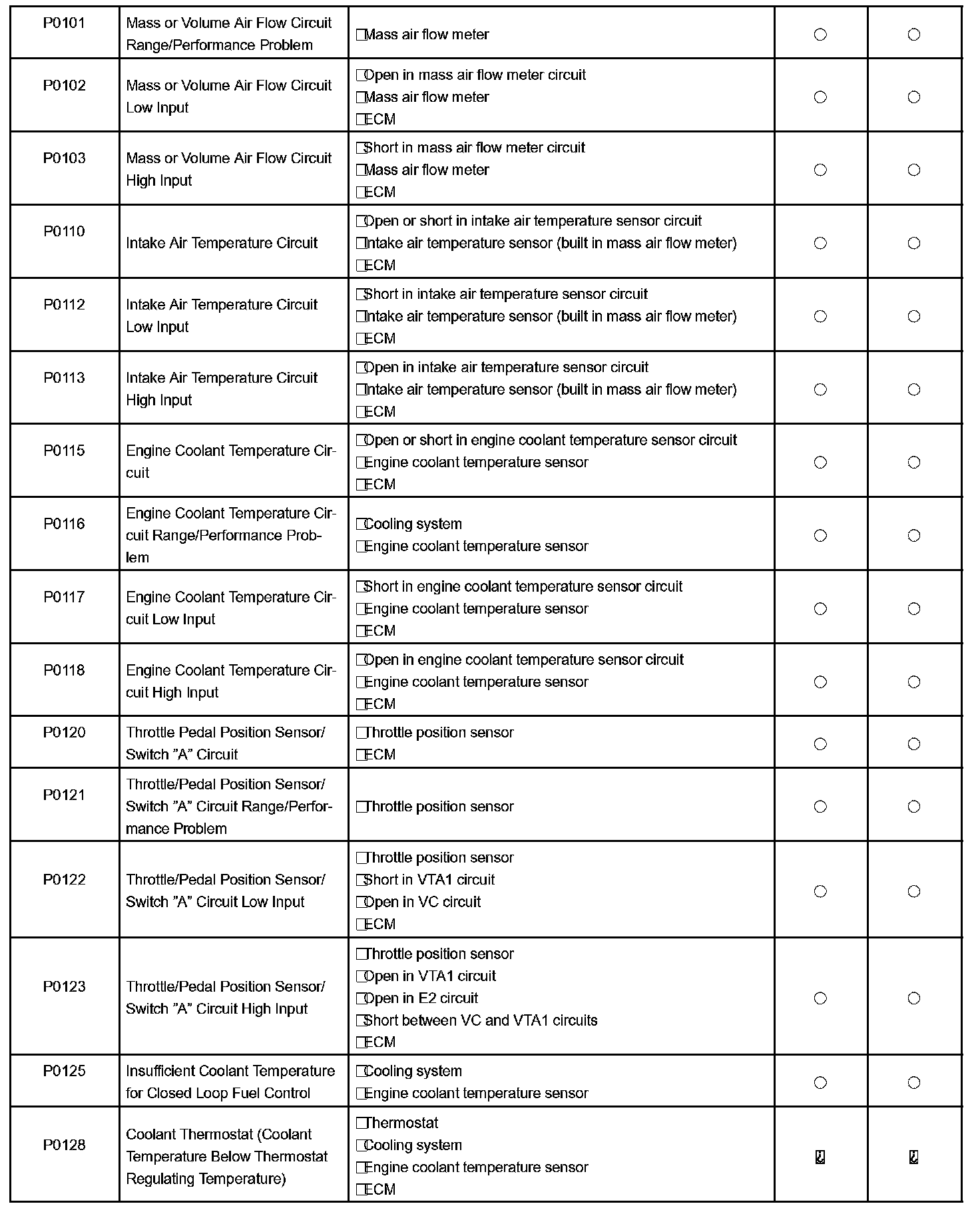

P0101 - P0126:

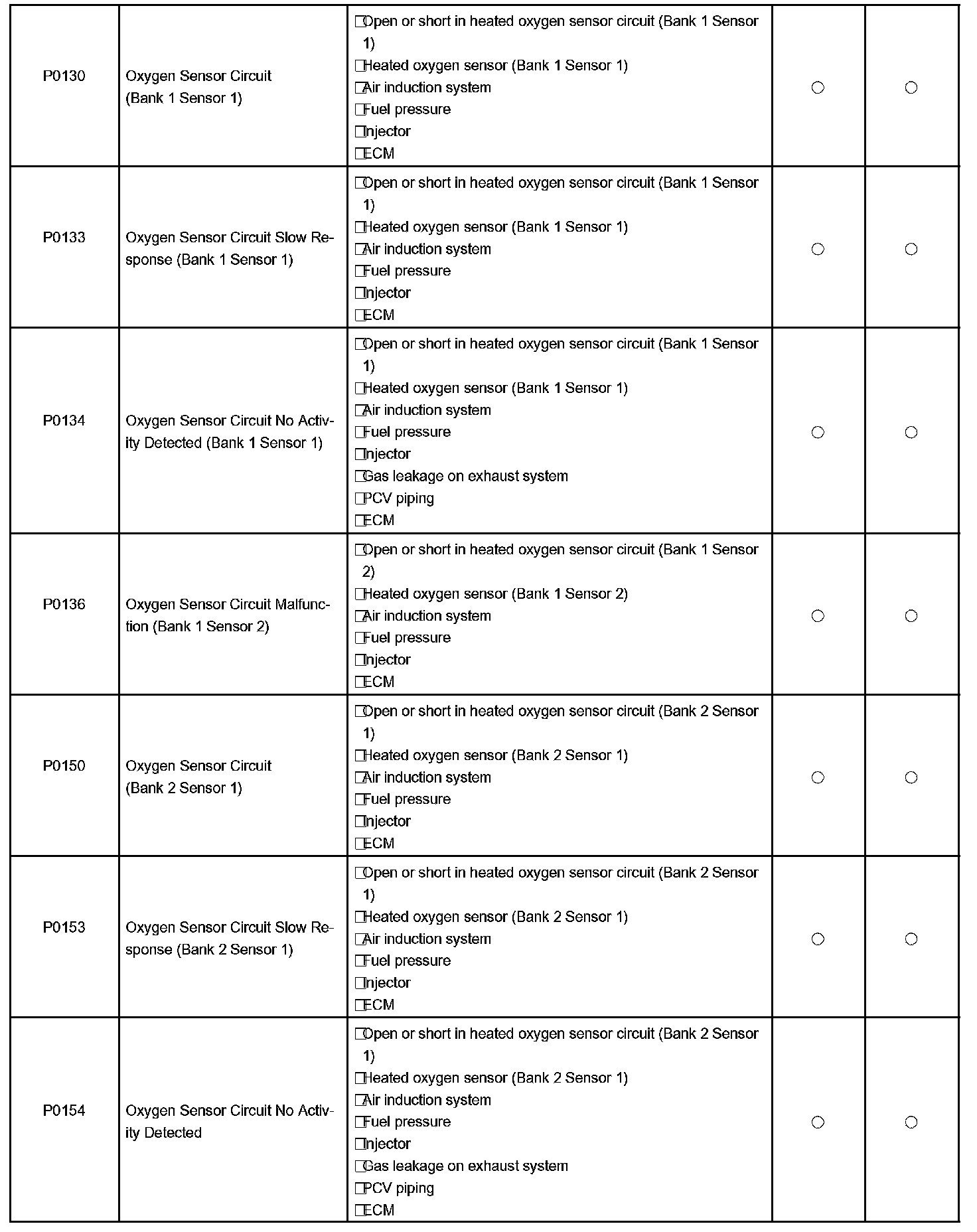

P0130 - P0154:

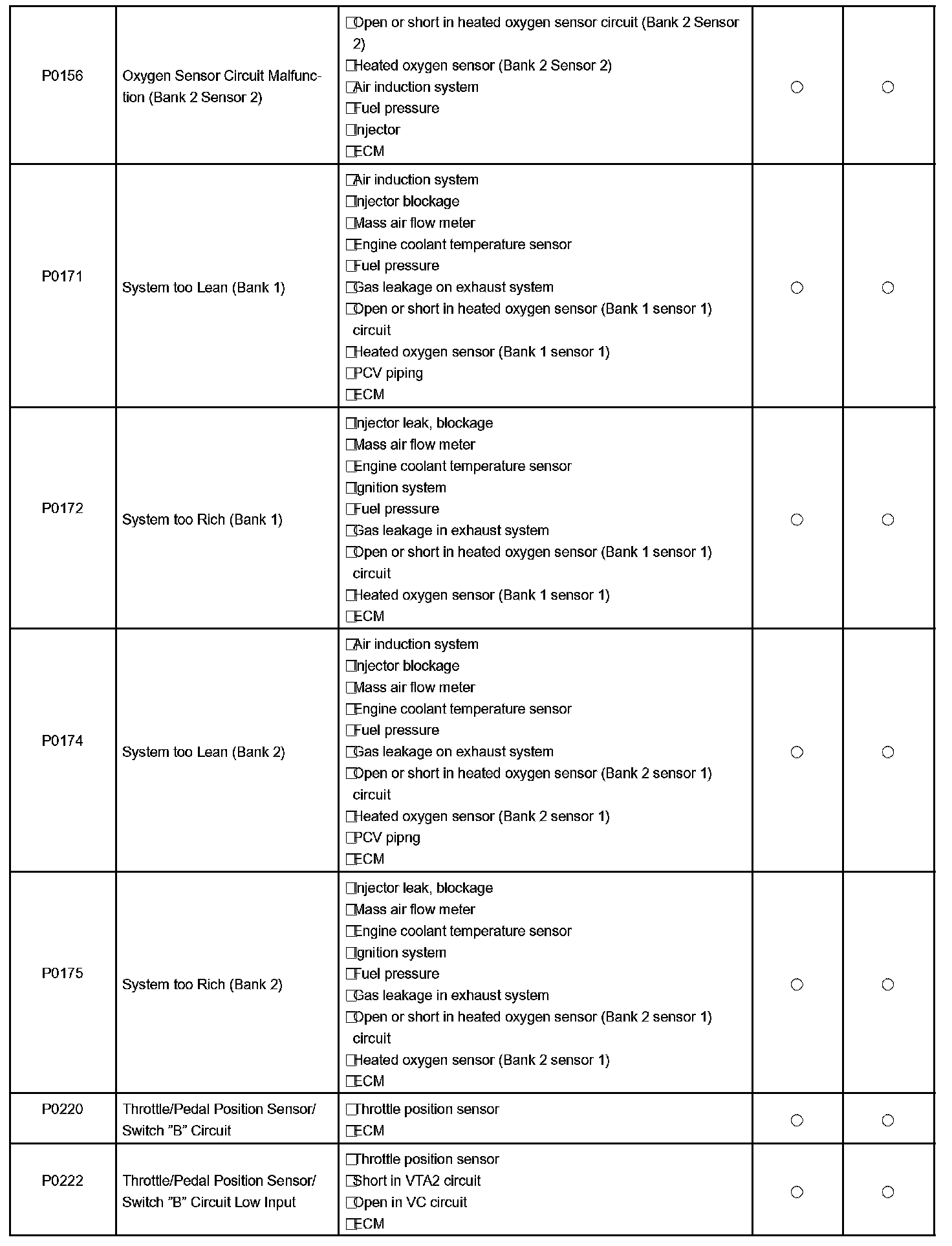

P0156 - P0222:

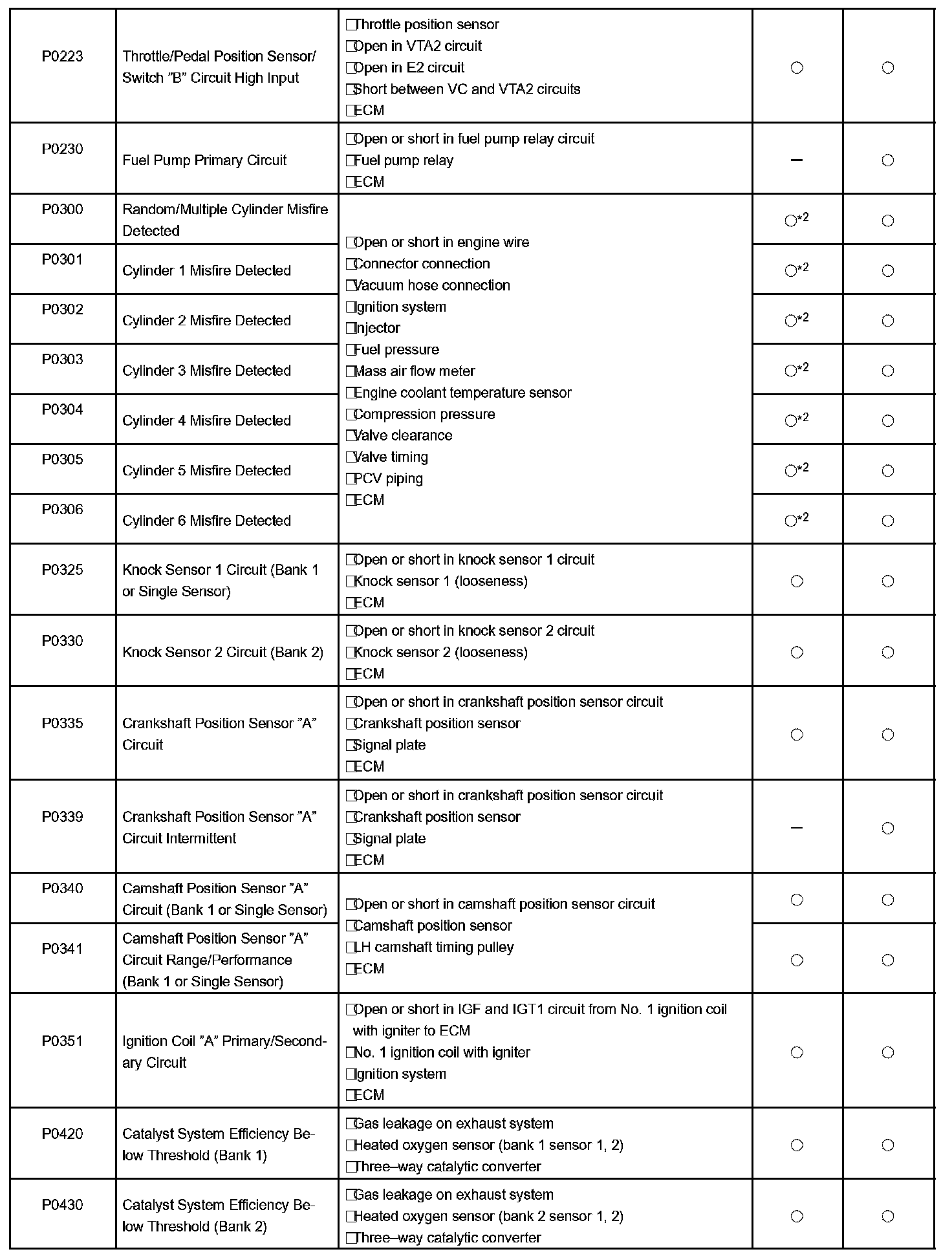

P0223 - P0430:

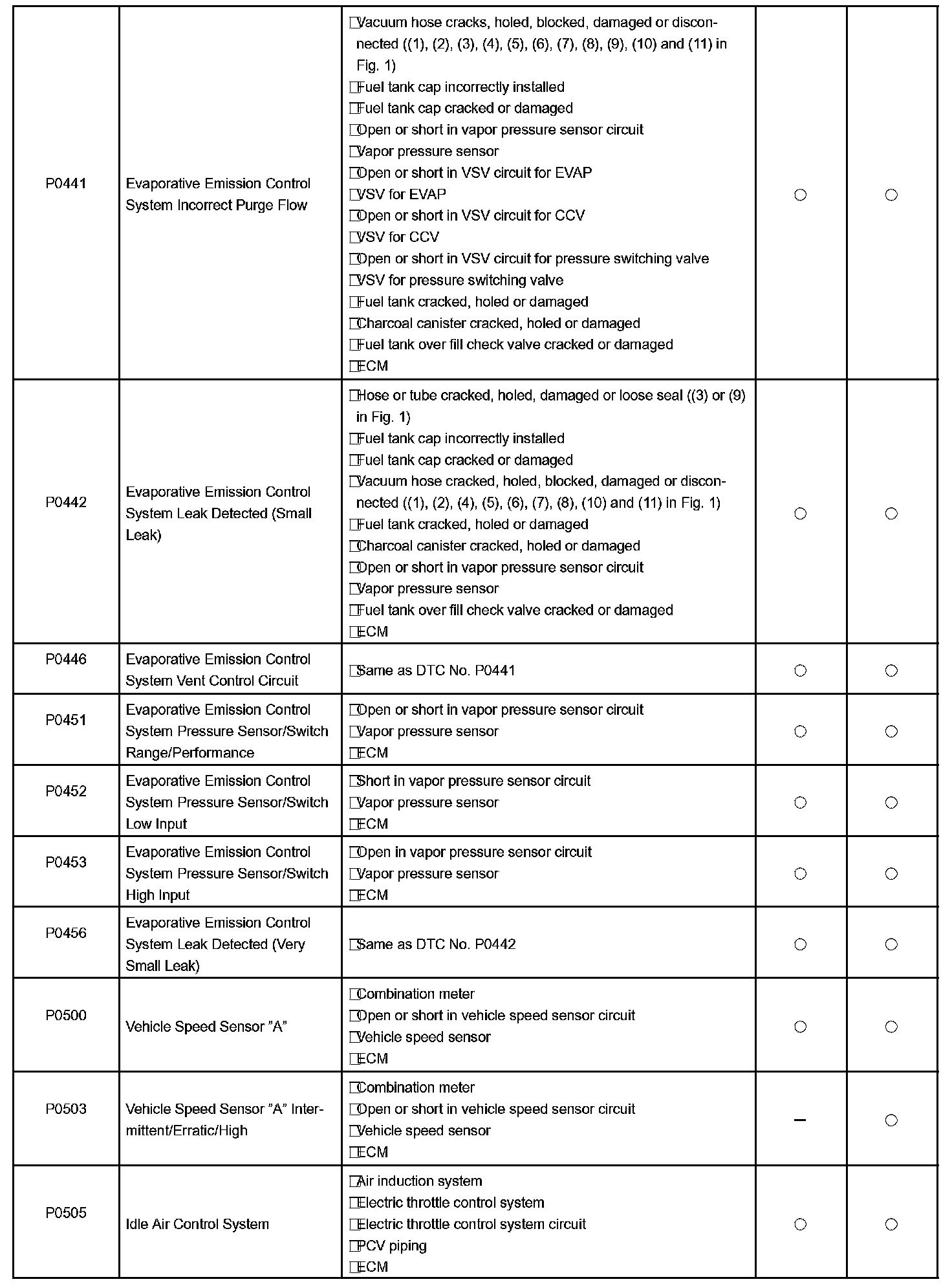

P0441 - P0505:

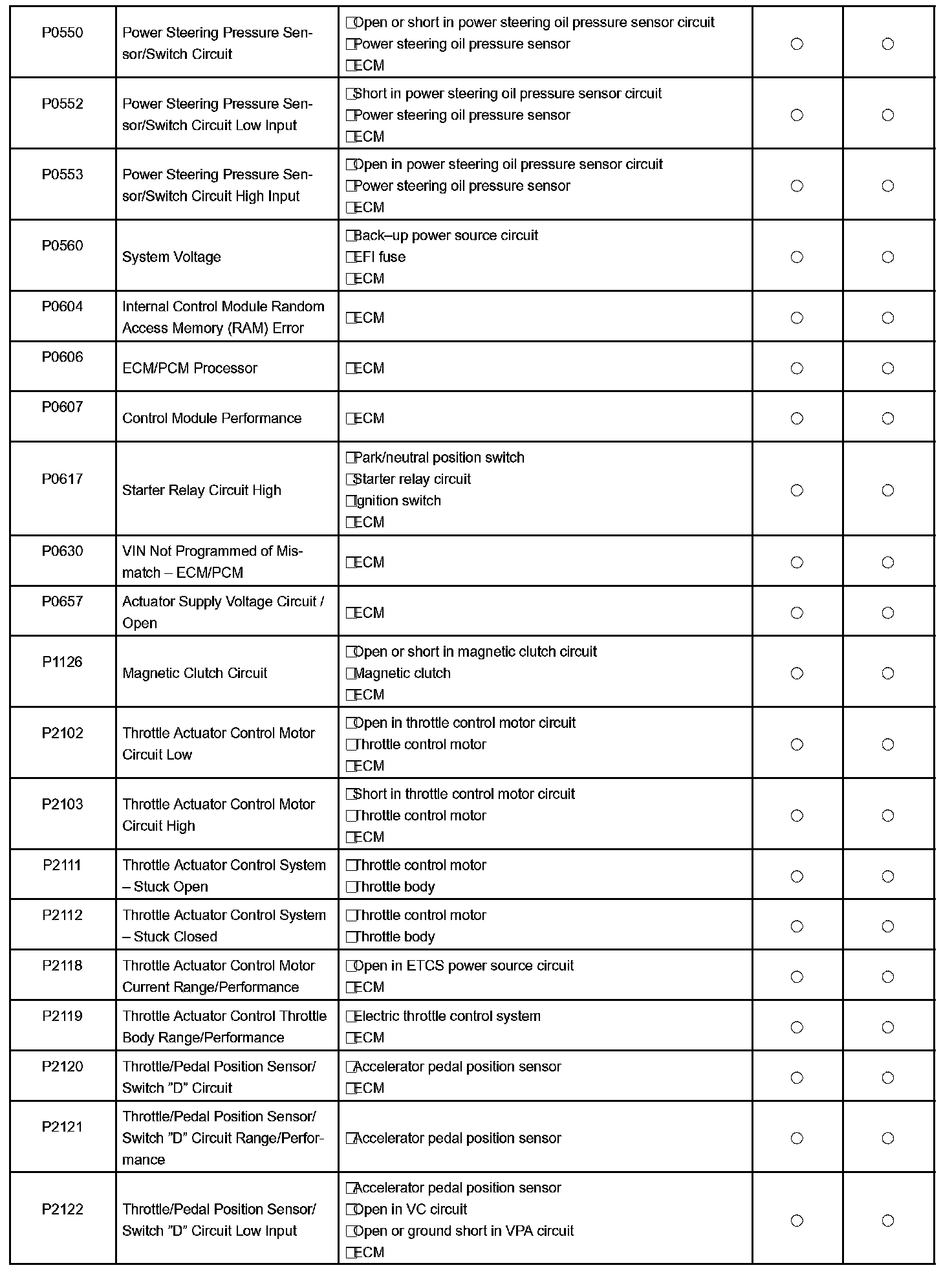

P0550 - P2122:

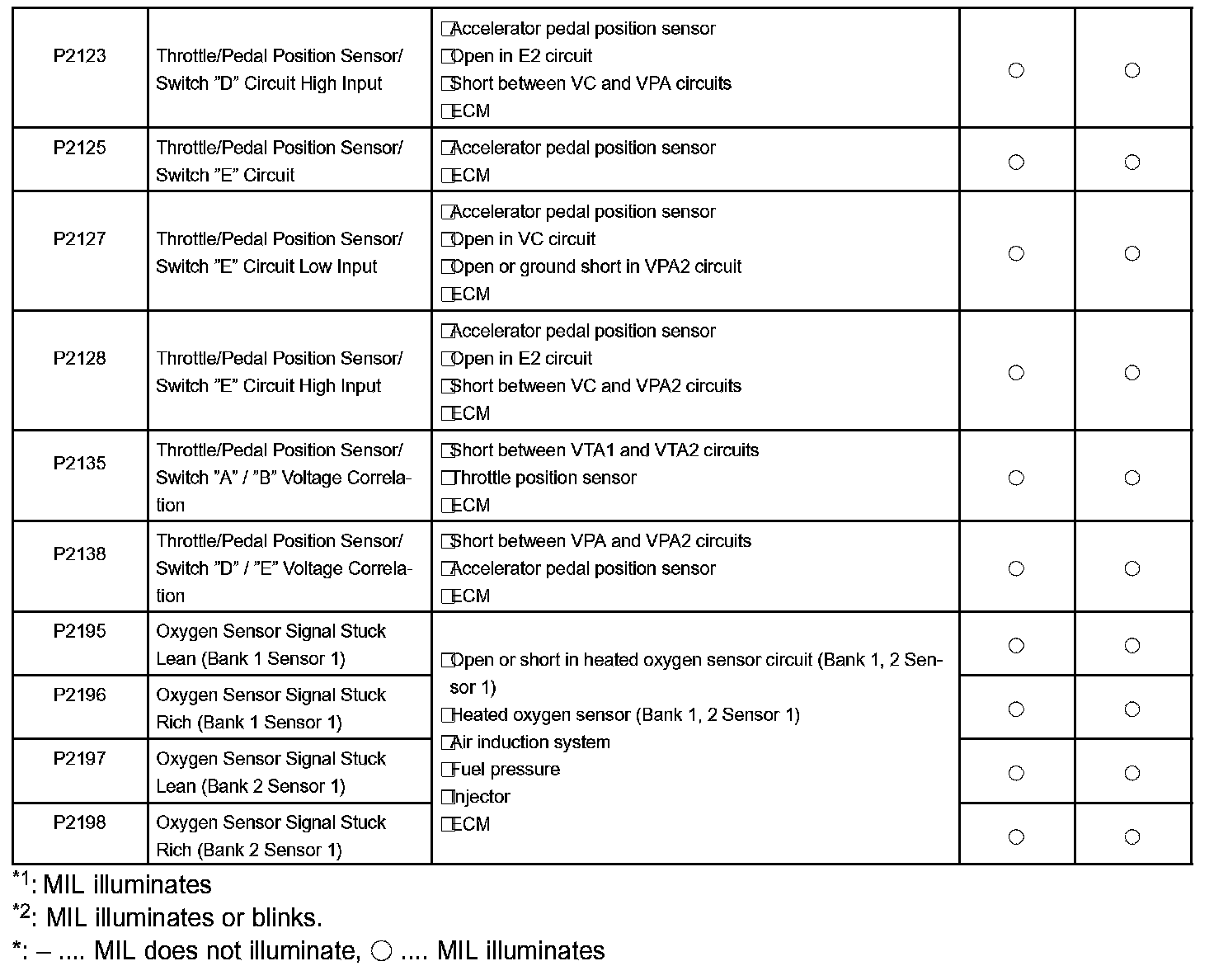

P2123 - P2198:

If a malfunction code is displayed during the DTC check in check mode, check the circuit for the codes listed in the table.
