Fail-safe

FAIL-SAFE
Activation and deactivation of error fail-safe is coordinated Error fail-safe Management.

Once Error fail-safe is activated, it will be kept until ignition key OFF.

In every new TCM start, TCM start with No Error fail-safe and No Error present.

0. Mechanical Limp Home Mode
^ Switch off A relay

1. Electrical Limp Home Mode
^ Keep 2nd / 3rd gear

2. Prohibit Intelligent Shift
^ Fuzzy SAT(Siements Adaptive Transmission) shift pattern (Medium Driver, Sporty Driver) will not be used

3. Prohibit Adaptive Control
^ No learning is done

6. Prohibit Torque Reduction Request
^ No torque reduction is sent to ECU

7. Prohibit Lockup Control
^ Stay in non-lockup control state

8. Substitute Input Value Oil Temperature
^ Set oil temperature(tf) to 80° C (192°F)

9. Substitute Value Speed Ratio
^ Set speed ratio to 0.7

10. Substitute CAN Input Value
^ Set engine torque to 42%
^ Set throttle position to 50%
^ Set accelerator pedal signal to 50%
^ Set engine speed (Ne) to 3000 rpm
^ Set vehicle speed to 0 km/h
^ Set status of air condition relay to OFF

11. Prohibit VFS control
^ Stop the Line Pressure Control till IG Off

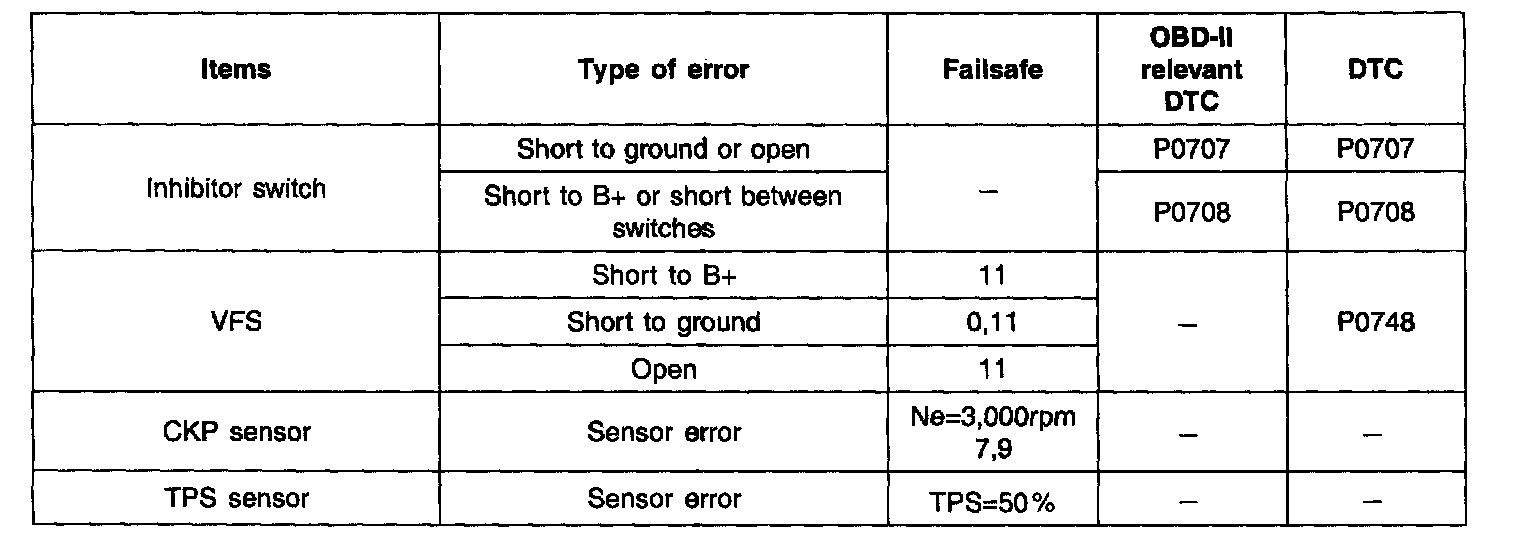

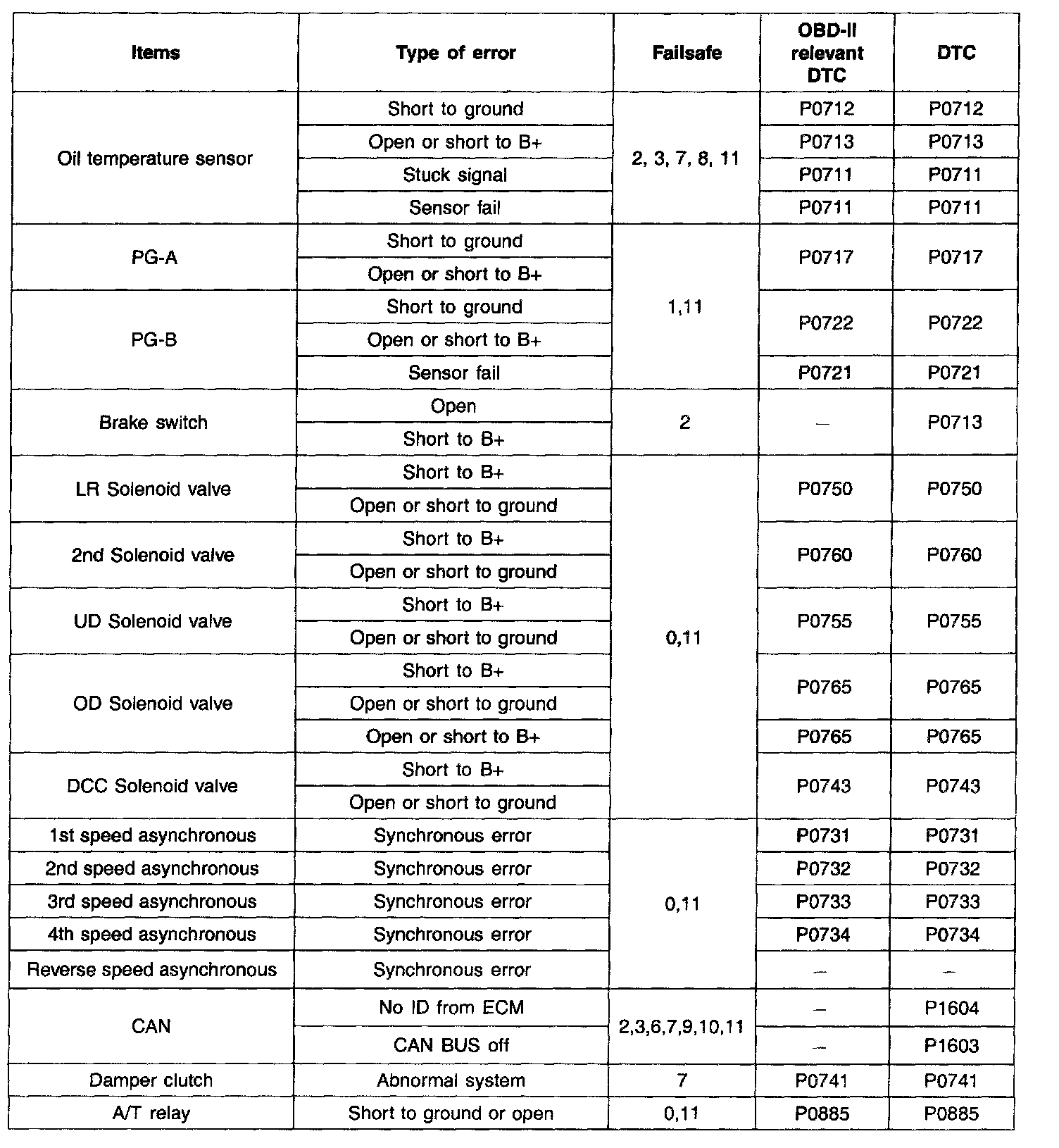

FAILSAFE ACCORDING TO THE DTC

NOTE:
^ Refer the detail description for the indicated number on the 'Failsafe' column.
