DTC Chart: Instrument Panel Cluster (IPC)

DTC Chart: Instrument Panel Cluster (IPC)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

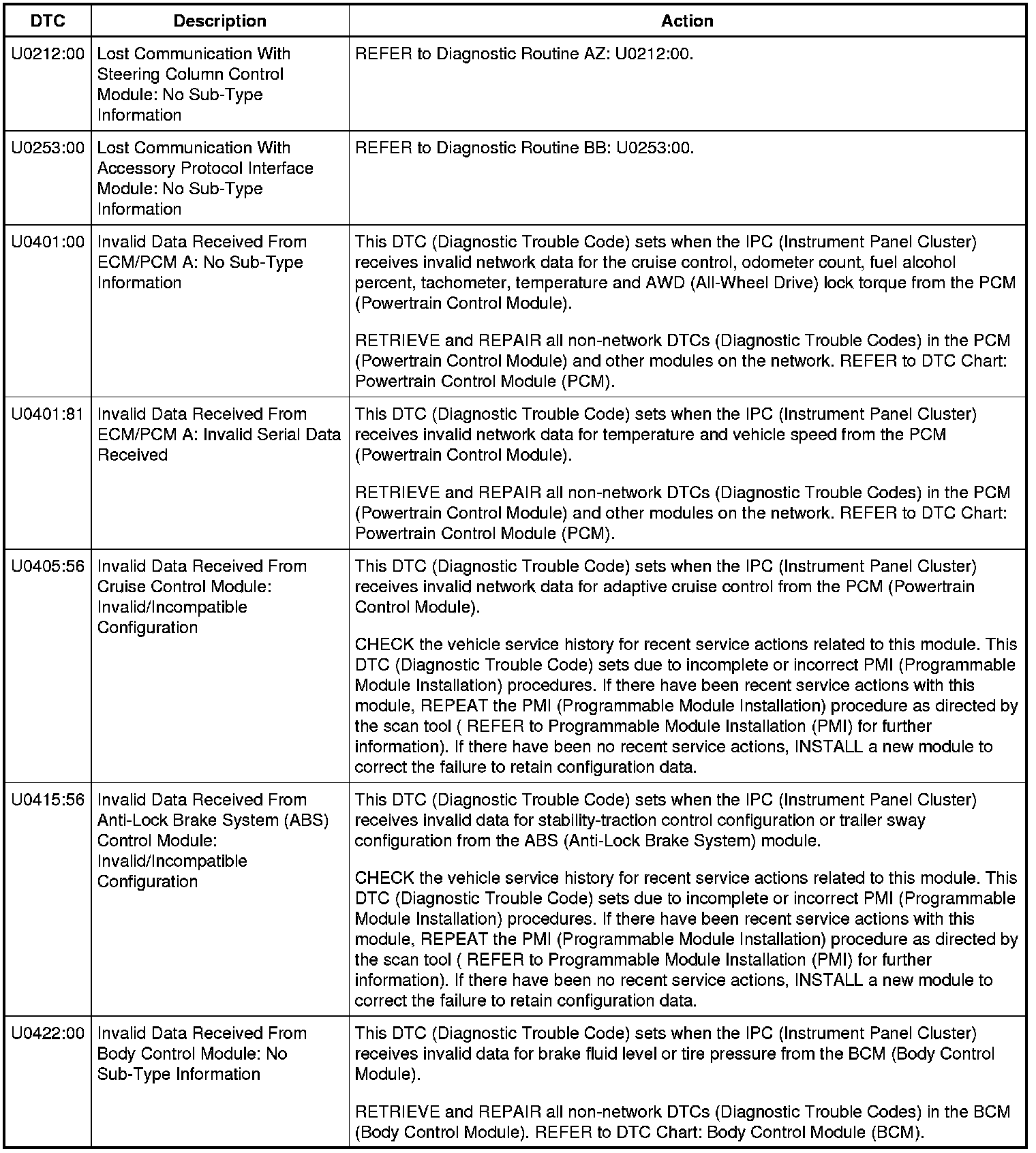

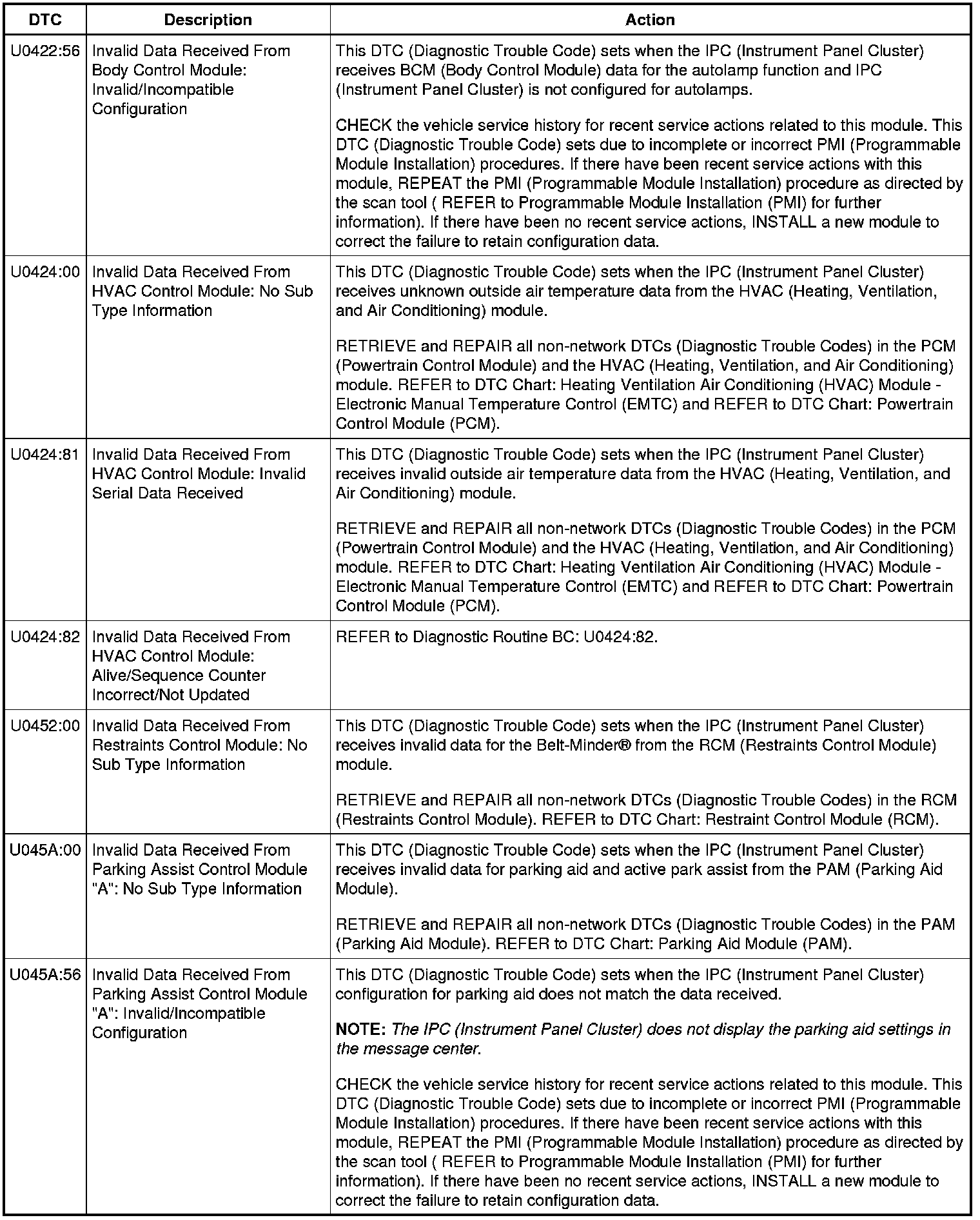

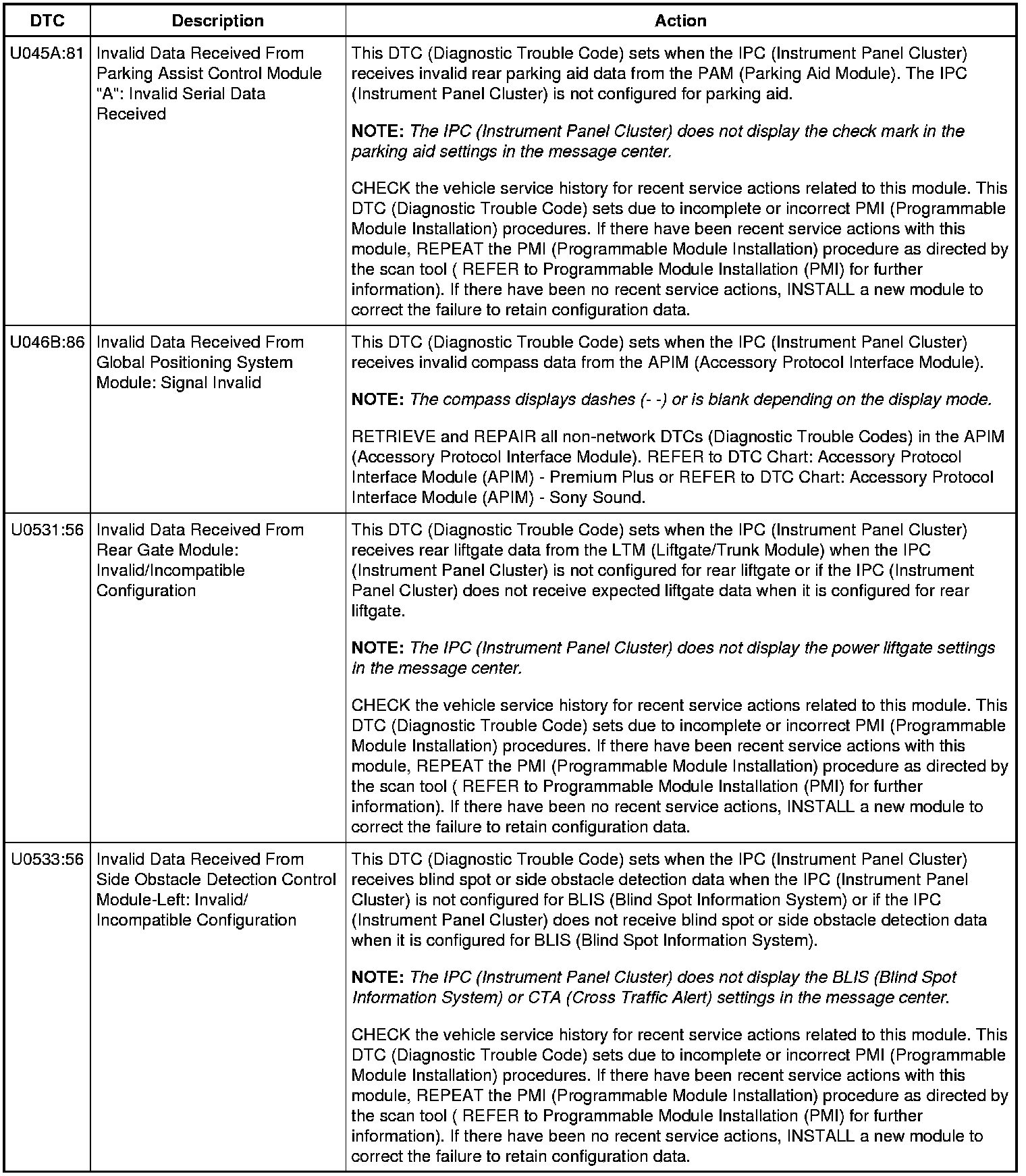

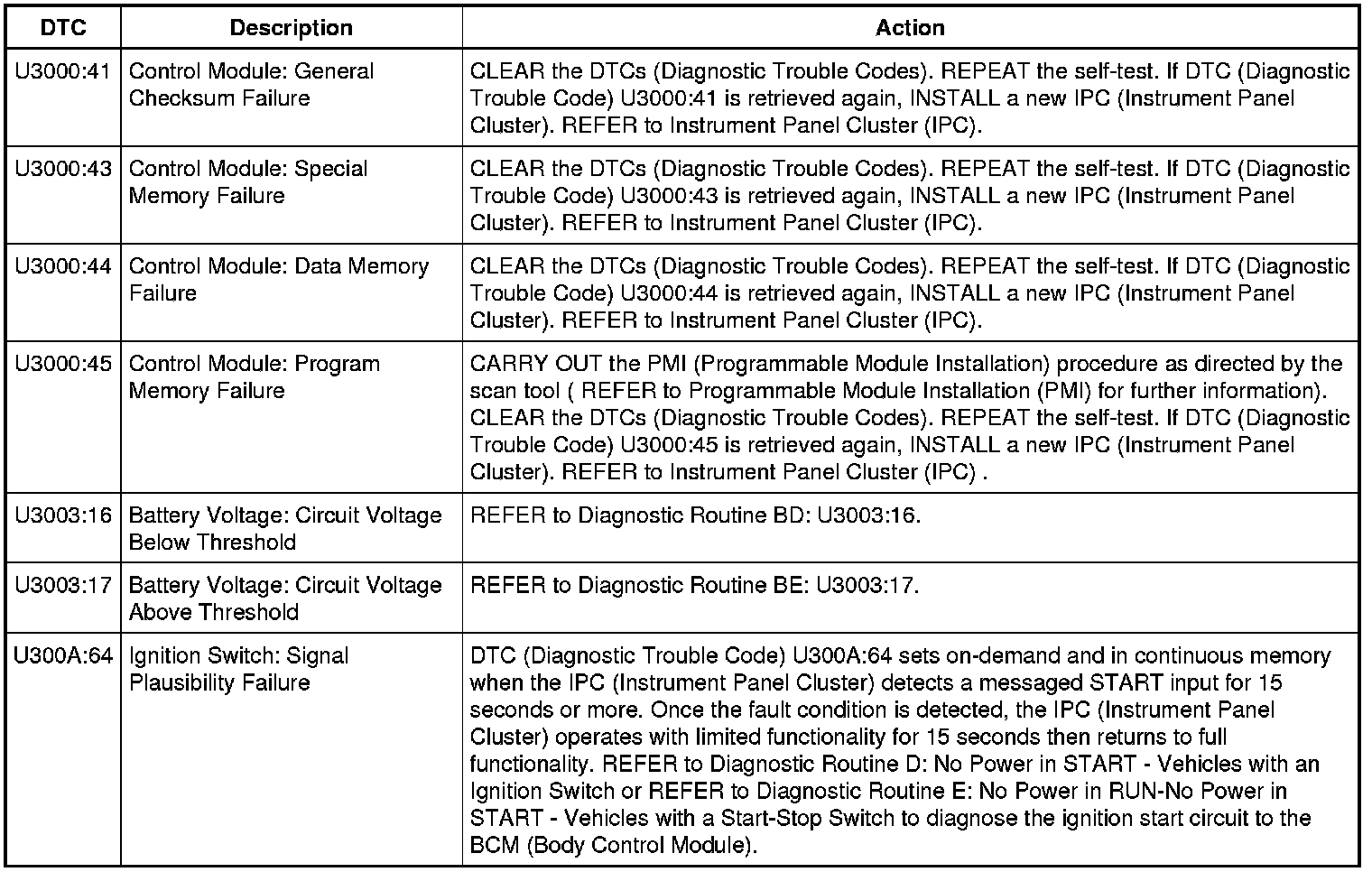

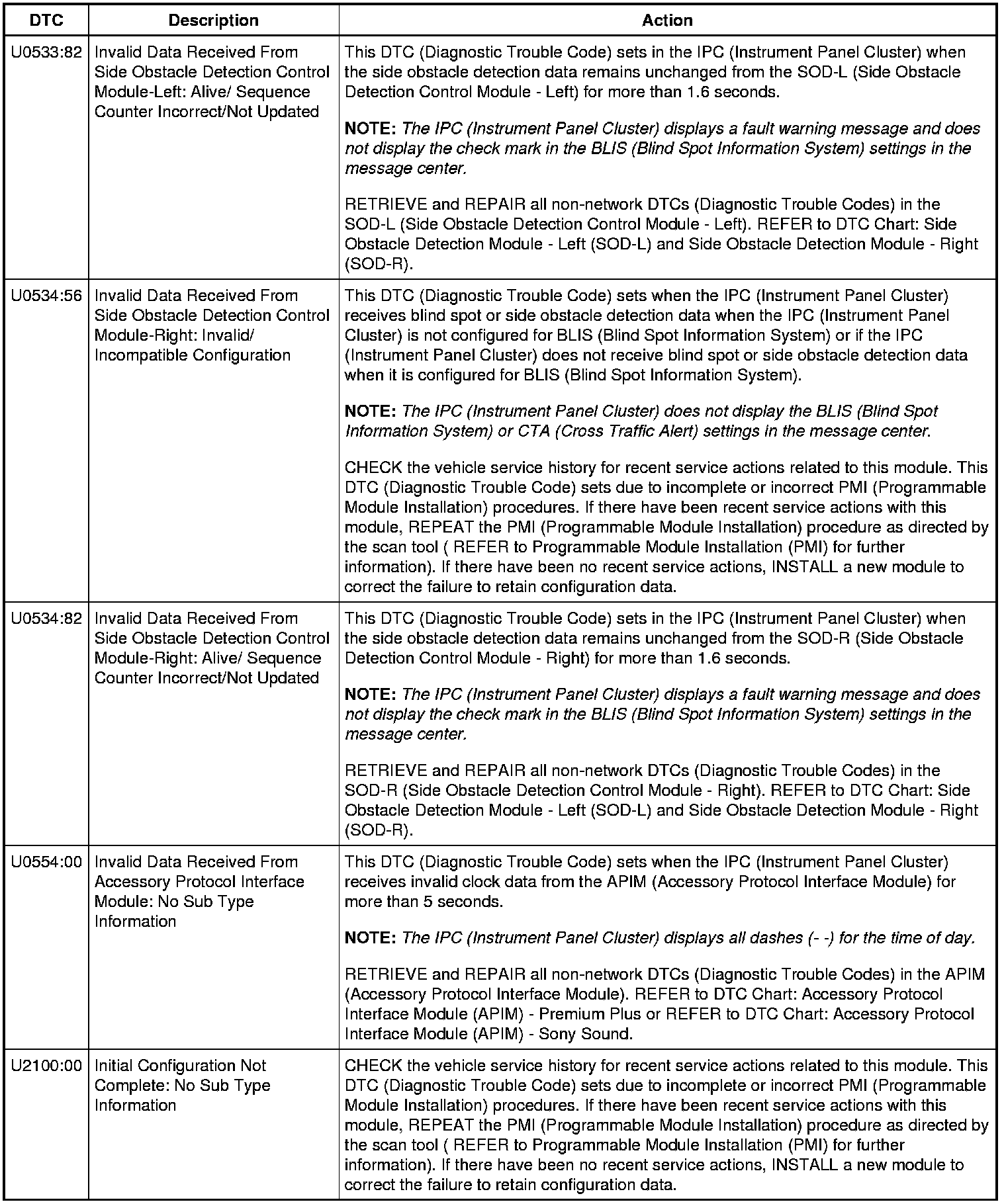

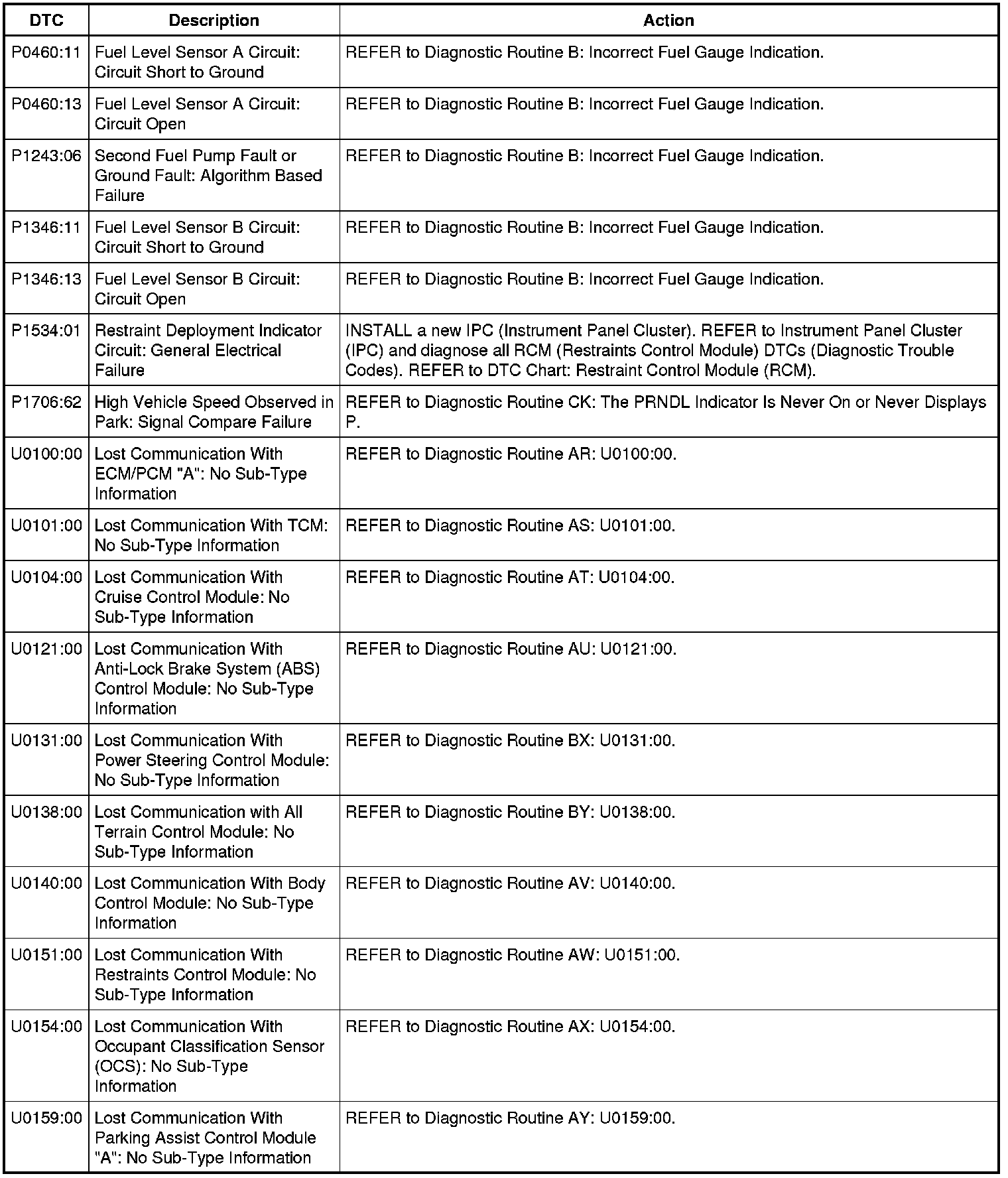

DTC Chart-IPC (Instrument Panel Cluster)
