Checking CMP and CKP Sensors

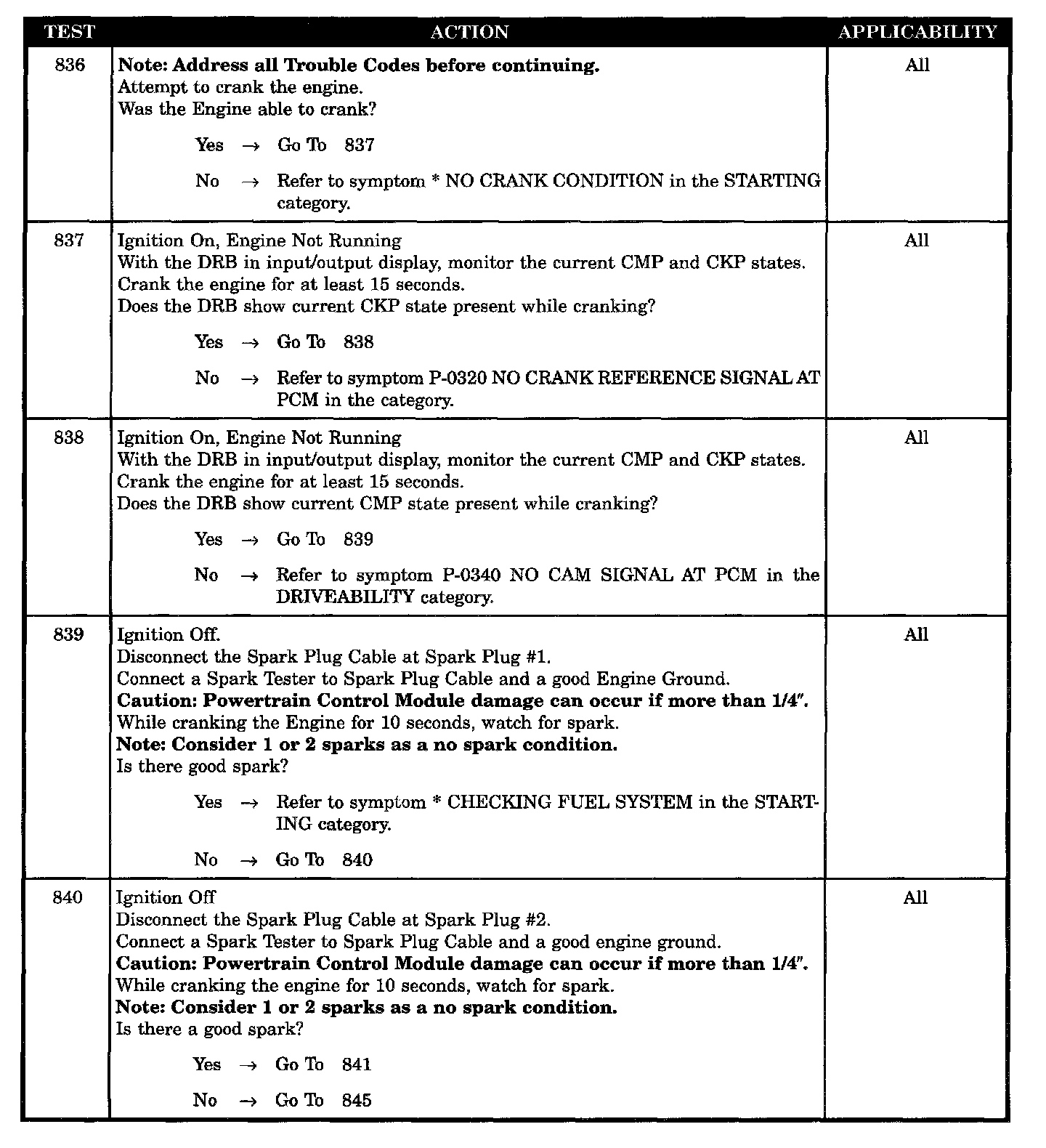

Tests 836 - 840:

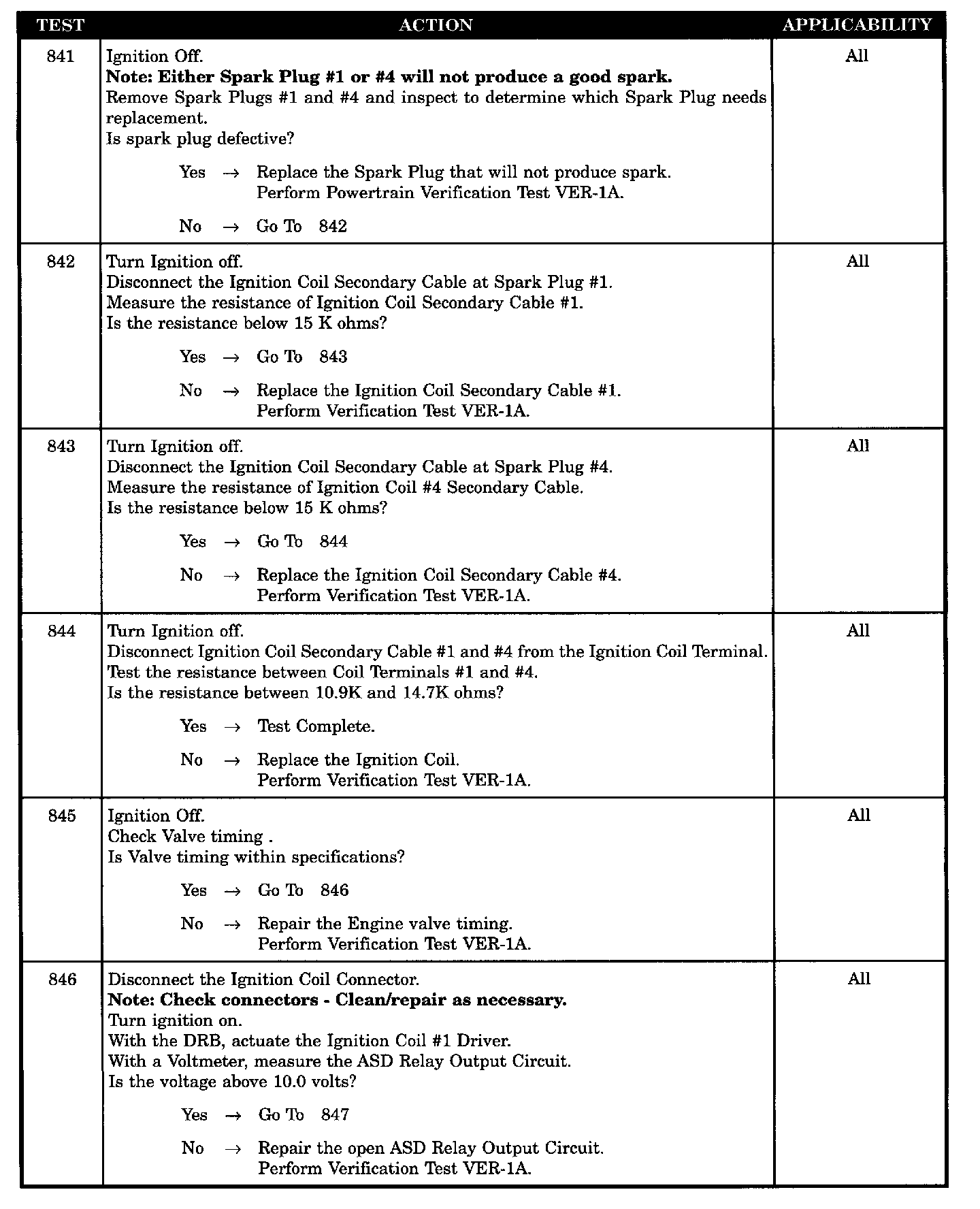

Tests 841 - 846:

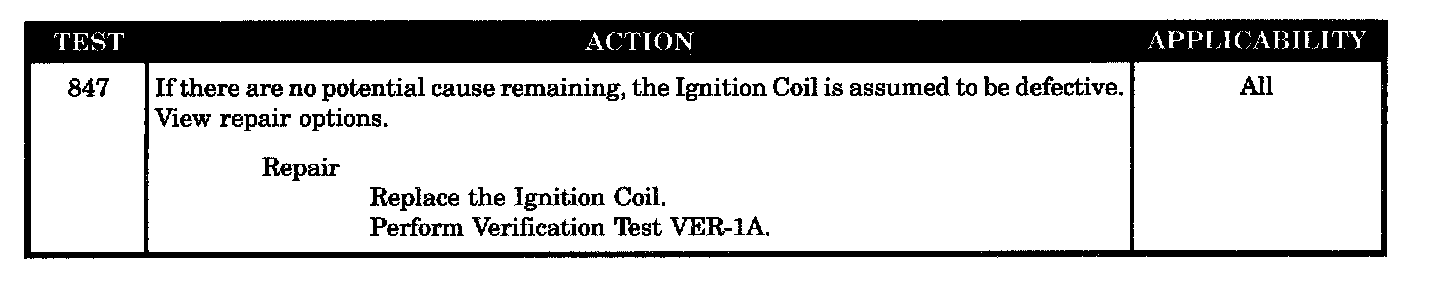

Test 847:

SYMPTOM LIST
*CHECKING CMP AND CKP SENSORS

TEST NOTE:
All symptoms listed above are diagnosed using the same tests. The title for the tests will be * QUALIFYING A NO START CONDITION.

POSSIBLE CAUSES
- ASD RELAY OUTPUT CIRCUIT OPEN
- Ignition coil secondary cable #1 defective
- Ignition coil secondary cable #4 defective
- Spark plug defective
- Engine valve timing out of specification
- Ignition coil defective
- Ignition coil resistance out of specification
