Radiator - Removal

REMOVAL





1. Disconnect negative cable from battery.
2. Discharge the A/C system [1][2]Capacity Specifications
3. Remove the front fascia Front Fascia - Removal.

WARNING: Do not remove the cylinder block plug or the radiator draincock with the system hot and under pressure because serious burns from coolant can occur.

4. Drain the cooling system. Service and Repair.
5. Disconnect the radiator fan electrical connectors.
6. Remove A/C lines A/C Condenser - Removal.
7. Remove the auxiliary transmission cooler hoses.
8. Remove the pushpins and the upper radiator seal.
9. Remove the pushpins and the LH and RH radiator seal.

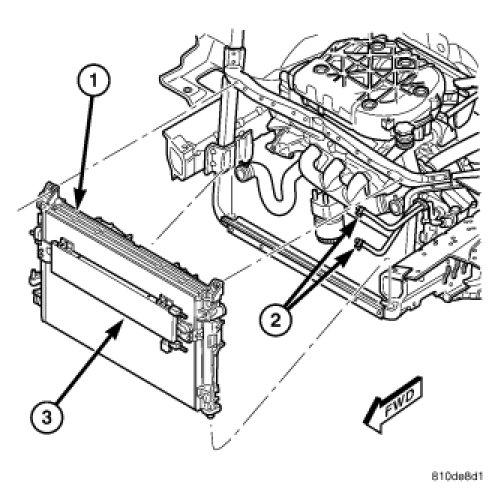

10. Remove the A/C condenser side brackets to radiator attaching screws. Separate the condenser from the radiator by lifting upward to disengage from lower mounts. Allow the condenser to rest in front of radiator.




11. Remove the upper and lower radiator hoses.
12. Radiator can now be lifted free from engine compartment. Care should be taken not to damage radiator cooling fins or water tubes during removal.
13. Remove the cooling fan assembly from the radiator module.
