Rear Window Shelf Trim Panel Replacement

Rear Window Shelf Trim Panel Replacement

Removal Procedure




1. Lower the rear seat back.
2. Remove the rear quarter upper trim panel.
3. Remove the rear seat belts. Refer to Shoulder Belt Replacement - Rear (Five Door/Wagon) Shoulder Belt Replacement - Rear (Five Door/Wagon)Shoulder Belt Replacement - Rear (Four Door) Shoulder Belt Replacement - Rear (Four Door).
4. Remove the child seat anchorage. Refer to Child Restraint Tether Anchor Replacement (Five Door) Child Restraint Tether Anchor Replacement (Five Door)Child Restraint Tether Anchor Replacement (Four Door) Child Restraint Tether Anchor Replacement (Four Door)Child Restraint Tether Anchor Replacement (Wagon) Child Restraint Tether Anchor Replacement (Wagon).

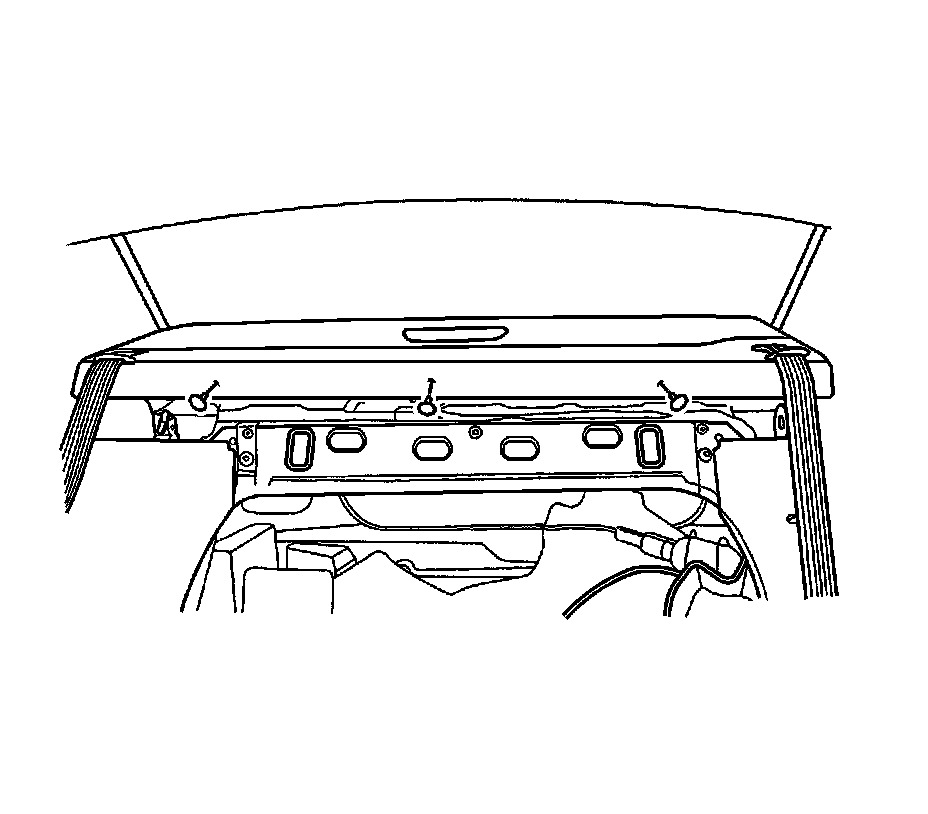

5. Remove the plastic retaining clips and the deck lid sill plate cover.

Installation Procedure




1. Install the rear deck lid sill plate cover with the plastic retaining clips.
2. Install the child seat anchorage. Refer to Child Restraint Tether Anchor Replacement (Five Door) Child Restraint Tether Anchor Replacement (Five Door)Child Restraint Tether Anchor Replacement (Four Door) Child Restraint Tether Anchor Replacement (Four Door)Child Restraint Tether Anchor Replacement (Wagon) Child Restraint Tether Anchor Replacement (Wagon).
3. Install the rear seat belts. Refer to Shoulder Belt Replacement - Rear (Five Door/Wagon) Shoulder Belt Replacement - Rear (Five Door/Wagon)Shoulder Belt Replacement - Rear (Four Door) Shoulder Belt Replacement - Rear (Four Door).
4. Install the rear quarter upper trim panel.
5. Raise the rear seat.
