51 47 440 Removing and Installing/Replacing Rear Carpet on Seat Pan

51 47 440 - Removing and installing/replacing rear carpet on seat pan





Necessary preliminary tasks:
- Remove left/right front seat
- Remove handbrake lever Service and Repair
- Remove vehicle centre sensor Removing and installing (replacing) vehicle centre sensor
- Remove rear left/right side trim Removing and Installing Rear Left or Right Side Trim Panel
- Remove front inside entrance cover strip 51 47 000 Removing and Installing/Replacing Front (Inside) Left or Right Entrance Cover Strip

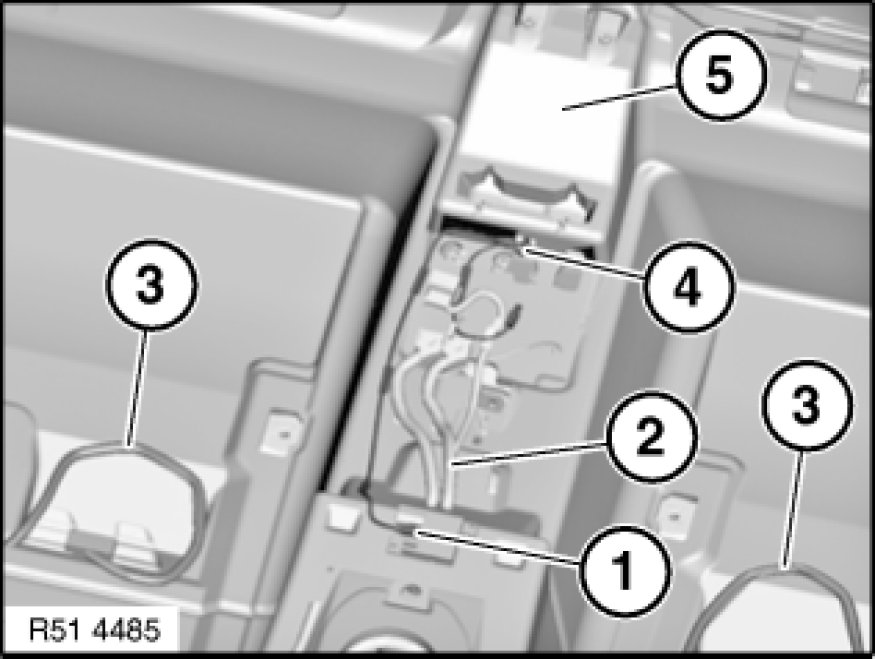

Disconnect connector (1).
Lay cable (2) back.
Feed out cables (3 and 4) through carpet (5).
Remove carpet (5).

Installation:
Make sure openings for air duct and attachment points are correctly positioned.
Make sure all cables are in correct position.
