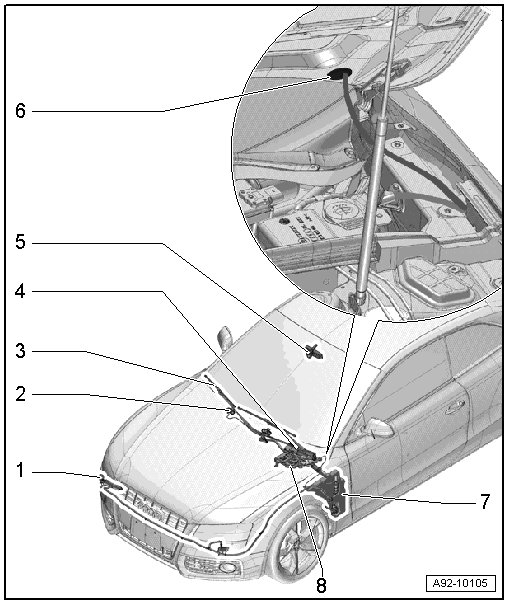

Windshield Washer, Wiper and Headlamp Washer System Overview

Windshield Washer, Wiper and Headlamp Washer System Overview






1 Headlamp Washer System Spray Nozzle

• Overview, refer to => [ Headlamp Washer Fluid Reservoir, Lines and Nozzle Overview ] Headlamp Washer Fluid Reservoir, Lines and Nozzle Overview.

• Removing and installing, refer to => [ Headlamp Washer System Spray Nozzles ] Headlamp Washer System Spray Nozzles.

2 Windshield Spray Nozzle

• Overview, refer to => [ Washer Fluid Reservoir, Lines and Nozzle Overview ] Removal and Replacement.

• Removing and installing, refer to => [ Spray Nozzles ] Spray Nozzles.

3 Wiper Arm

• Overview, refer to => [ Windshield Wiper System Overview ] Windshield Wiper System Overview.

• Removing and installing, refer to => [ Wiper Arm ] Service and Repair.

4 Windshield Wiper Motor

• With the wiper motor control module (J400).

• Overview, refer to => [ Windshield Wiper System Overview ] Windshield Wiper System Overview.

• Removing and installing, refer to => [ Windshield Wiper Motor with Control Module (J400) ] Service and Repair.

5 Rain/Light Recognition Sensor (G397)

6 Grommet

• For the washer fluid line in the hood.

7 Washer Fluid Reservoir

• Overview, refer to => [ Washer Fluid Reservoir, Lines and Nozzle Overview ] Removal and Replacement.

• Removing and installing, refer to => [ Washer Fluid Reservoir ] Washer Fluid Reservoir.

8 Washer Fluid Reservoir Fill Neck

• For the washer fluid reservoir.

• Overview, refer to => [ Washer Fluid Reservoir, Lines and Nozzle Overview ] Removal and Replacement.

• Removing and installing, refer to => [ Washer Fluid Reservoir Filler Neck ] Washer Fluid Reservoir Filler Neck.
