Flywheel and Dual Clutch Assembly Overview

Flywheel and Dual Clutch Assembly Overview






1 Flywheel

• Refer to the Parts Catalog because there are different versions depending on the date of manufacture.

• Removing and installing, refer to => [ Flywheel ] Flywheel.

2 Clutch Cover

• There are different versions depending on the date of manufacture, with or without a thrust washer (- item 7 - => [ (Item 7) Thrust Washer ] ), allocation, refer to the Parts Catalog

• Removing and installing, refer to => [ Dual Clutch ] Dual Clutch.

3 Bolt

4 O-ring

• Replace

5 Dual Clutch

• Refer to the Parts Catalog, because there are different versions depending on the date of manufacture.

• Removing and installing, refer to => [ Dual Clutch ] Dual Clutch.

• After replacing the dual clutch, the corresponding "Guided Functions" must be performed using the vehicle diagnostic tester.

6 Transmission Housing

7 Thrust Washer

• Depending on the date of manufacture, clutch cover allocation, refer to the Parts Catalog

8 Ball Bearing

• For the dual clutch

• Removing and installing, refer to => [ Input Shaft Ball Bearing, Replacing ] Input Shaft Ball Bearing, Replacing

9 Locking Ring

• Replace

• For ball bearing

10 Locking Ring

• Replace

• For the dual clutch

11 Shaft Seal

• For the input shaft

• Removing and installing, refer to => [ Input Shaft Seal ] Input Shaft Seal

12 Bolt

• 60 Nm

• Replace

Clutch Cover Tightening Specification and Sequence

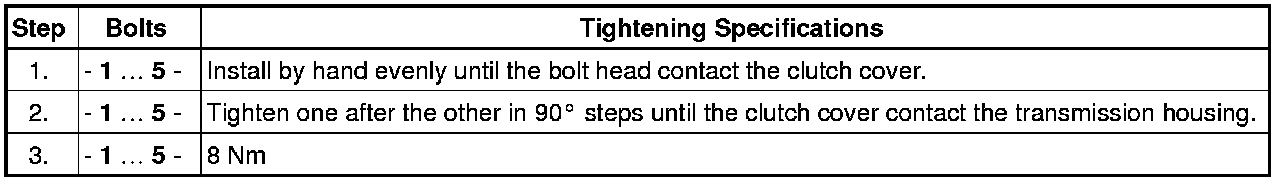

- Tighten the bolts in three steps in the sequence shown:
