Secondary Air Injection Right Combination Valve

Secondary Air Injection Right Combination Valve

Removing

• When installing, bring all cable ties back to same positions.

- Remove the right front muffler. Refer to => [ Front Muffler ] Front Muffler.

- Remove the plenum chamber bulkhead.

- Remove the - 1 - Oxygen Sensor (O2S) after Three Way Catalytic Converter (TWC) (G130) connector from the bracket, disconnect it and free up the wire.






• Ignore - 2 and 3 -.

- Remove the bolt - 1 - and nuts - arrows -. Then remove the right catalytic converter from the exhaust manifold.

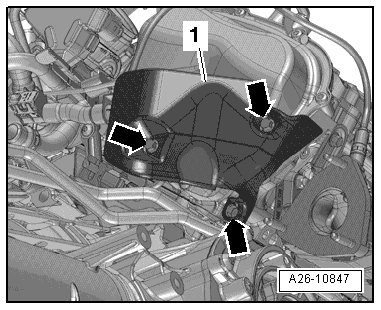

- Remove the bolts - arrows - and the heat shield - 1 -.

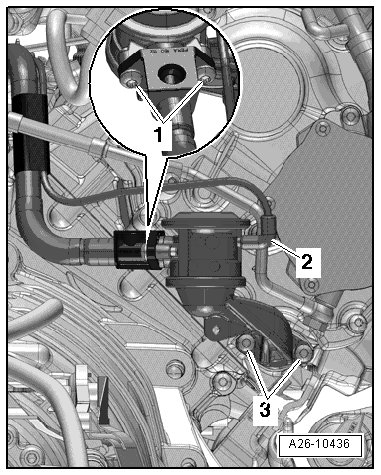

- Remove the vacuum line - 2 - from the Secondary Air Injection (AIR) combination valve.






- Remove the bolts - 3 -, remove the right AIR combination valve and remove the screws - 1 - for the AIR hose.

Installing

Install in reverse order of removal. Note the following:

Tightening specifications

• => [ Secondary Air Injection System Overview ] Service and Repair

• => [ Secondary Air Combination Valve Heat Shield - Tightening Specification ] Service and Repair

• Replace the gasket.

• The hose connections as well as the air guide pipes and hoses must be free of oil and grease before installing.

• Secure all hose connections with hose clamps of the same type as those equipped by the factory, refer to the Parts Catalog.

• To mount the air guide hoses on their connectors securely, spray the bolts on the used clamps with rust remover before installing.

- Install the right catalytic converter. Refer to => [ Right Catalytic Converter ] Right Catalytic Converter

- Install the plenum chamber bulkhead.

- Install the front muffler. Refer to => [ Front Muffler ] Front Muffler.
