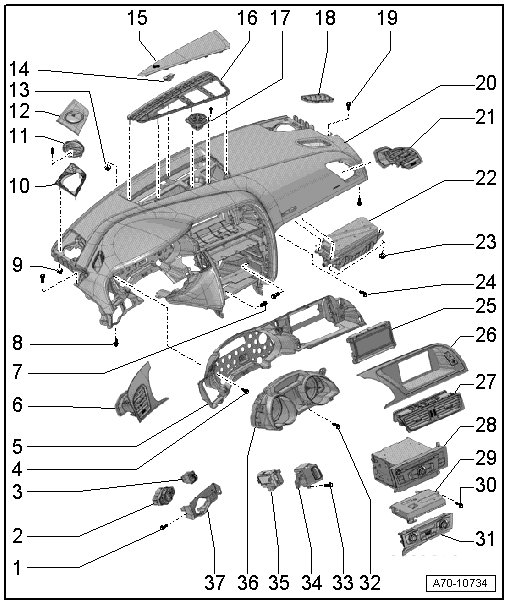

Instrument Panel Assembly Overview







Instrument Panel Assembly Overview






1 Bolt

Quantity: 3

1.5 Nm

2 Light Switch (E1)

3 Headlamp Adjuster (E102)

4 Bolt

Quantity: 6

3 Nm

5 Mounting Bracket

For instrument cluster

Removing and installing, refer to => [ Instrument Cluster Mounting Frame ] Instrument Cluster Mounting Frame

6 Left Side Instrument Panel Vent

Removing and installing, refer to => [ Side Instrument Panel Vent ] Side Instrument Panel Vent

7 Bolt

Quantity: 2

3 Nm

8 Bolt

Quantity: 2

3 Nm

9 Nut

Quantity: 6

0.5 Nm

Tighten the nuts carefully to prevent the mounting pins on the speaker trim from shearing off.

10 Mount

For speaker

Removing and installing, refer to => [ Speaker Mount ] Speaker Mount

11 Mid-Range Speaker

12 Side Speaker Trim

Removing and installing, refer to => [ Side Speaker Trim ] Side Speaker Trim

13 Nut

Quantity: 6

0.5 Nm

Tighten the nuts carefully to prevent the mounting pins on the defroster vent from shearing off.

14 Sunlight Photo Sensor (G107)

15 Center Speaker Trim

Removing and installing, refer to => [ Center Speaker Trim ] Center Speaker Trim

16 Upper Center Defroster Vent

Removing and installing, refer to => [ Top Center Defroster Vent ] Top Center Defroster Vent

17 Mid-Range Speaker

18 Upper side defroster vent

19 Bolt

Quantity: 2

3 Nm

20 Instrument Panel

Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components ] Description and Operation.

Follow the allocation of the airbag to the instrument panel. Refer to Electronic Parts Catalog.

Removing and installing, refer to => [ Instrument Panel ] Instrument Panel

21 Right Side Instrument Panel Vent

Removing and installing, refer to => [ Side Instrument Panel Vent ] Side Instrument Panel Vent

22 Passenger Airbag

Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components ] Description and Operation.

Follow the allocation of the airbag to the instrument panel. Refer to Electronic Parts Catalog.

Assembly overview, refer to => [ Passenger Airbag Assembly Overview ] Passenger Airbag Assembly Overview

Removing and installing, refer to => [ Front Passenger Airbag Igniter 1 (N131)/Front Passenger Airbag Igniter 2 (N132) ] Front Passenger Airbag Igniter 1 (N131)/Front Passenger Airbag Igniter 2 (N132)

23 Nut

Tightening specification => [ Passenger Airbag Assembly Overview ] Passenger Airbag Assembly Overview

24 Bolt

3 Nm

25 MMI Screen

26 Cover

For MMI screen

Removing and installing, refer to => [ MMI Screen ] MMI Screen

27 Center Instrument Panel Vent

Removing and installing, refer to => [ Center Instrument Panel Vent ] Center Instrument Panel Vent

28 Radio/Navigation System

Installation Frame, Removing and Installing => [ Radio and Navigation System Frame ] Radio and Navigation System Frame

29 Front Information Display Control Head Module (J523)

30 Bolt

31 Climatronic Control Module (J255)

32 Bolt

33 Bolt

3 Nm

34 Trim

For Access/Start Authorization Switch (E415)

Removing and installing, refer to => [ Access/Start Authorization Switch Trim Panel ] Access/Start Authorization Switch Trim Panel

35 Access/Start Authorization Switch (E415)

36 Instrument Cluster

37 Light Switch Trim

Removing and installing, refer to => [ Light Switch Trim ] Light Switch Trim
