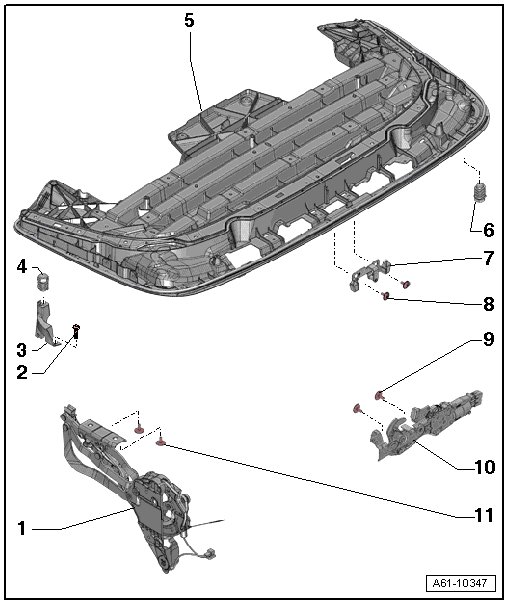

Adjusting Buffer, Locking Motor and End Plate Overview

Adjusting Buffer, Locking Motor and End Plate Overview






1 Hinge

• For the convertible top compartment cover.

• Overview, refer to => [ Hinge and Hydraulic Cylinder Overview ] Hinge and Hydraulic Cylinder Overview.

2 Bolt

• 8 Nm

3 Bracket

• For the adjusting buffer.

• Removing and installing, refer to => [ Side Adjusting Buffer Bracket ] Side Adjusting Buffer Bracket.

4 Side Adjusting Buffer

• Removing and installing, refer to => [ Side Adjusting Buffer ] Side Adjusting Buffer.

• Adjusting, refer to => [ Adjusting ] Adjusting.

5 Convertible Top Compartment Cover Inner Section

6 Center Adjusting Buffer

• Removing and installing, refer to => [ Center Adjusting Buffer ] Center Adjusting Buffer.

7 Striker

• Removing and installing, refer to => [ Striker ] Striker.

8 Bolt

• 8 Nm

9 Bolt

• 21 Nm

10 Convertible Top Compartment Cover Locking Motor (V222)

• Removing and installing, refer to => [ Convertible Top Compartment Cover Locking Motor (V222) ] Convertible Top Compartment Cover Locking Motor (V222).

11 Bolt

• 21 Nm
