Trunk / Liftgate Latch: Service and Repair

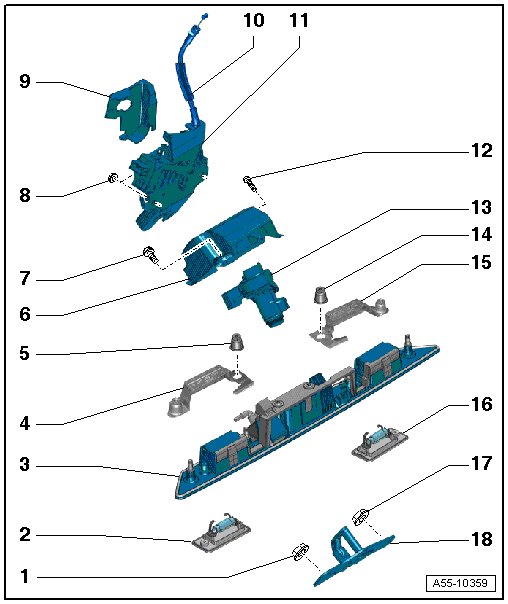

Rear Lid Lock, Lock Cylinder and Grip Piece Overview






1 Nut

• 21 Nm

2 Left License Plate Lamp

3 Handle

• With rear lid handle unlock switch (E234) , cannot be replaced separately

• Removing and installing, refer to => [ Grip ] Grip.

4 Left Anti-Theft Protection with Nut

• 4 Nm

• Removing and installing, refer to => [ Grip ] Grip.

5 Cap Nut

• 4 Nm

6 Anti-theft Protection

• For lock cylinder

• Removing and installing, refer to => [ Lock Cylinder ] Lock Cylinder.

7 Bolt

• 1.7 Nm

8 Nut

• 21 Nm

9 Anti-theft Protection

• For the rear lid lock

• Removing and installing, refer to => [ Rear Lid Lock Cable ] Rear Lid Lock Cable.

10 Cable

• For the rear lid lock

• Removing and installing, refer to => [ Rear Lid Lock Cable ] Rear Lid Lock Cable.

11 Rear Lid Lock

• With rear lid alarm switch (F123)

• Removing and installing, refer to => [ Rear Lid Lock ] Rear Lid Lock.

12 Bolt

• 1.7 Nm

13 Lock Cylinder

• Removing and installing, refer to => [ Lock Cylinder ] Lock Cylinder.

14 Cap Nut

• 4 Nm

15 Right Anti-Theft Protection with Nut

• 4 Nm

• Removing and installing, refer to => [ Grip ] Grip.

16 Right License Plate Lamp

17 Nut

• 21 Nm

18 Striker Pin

• Removing and installing, refer to => [ Striker Pin ] Striker Pin.

• Adjusting, refer to => [ Rear Lid, Adjusting ] Rear Lid, Adjusting.
