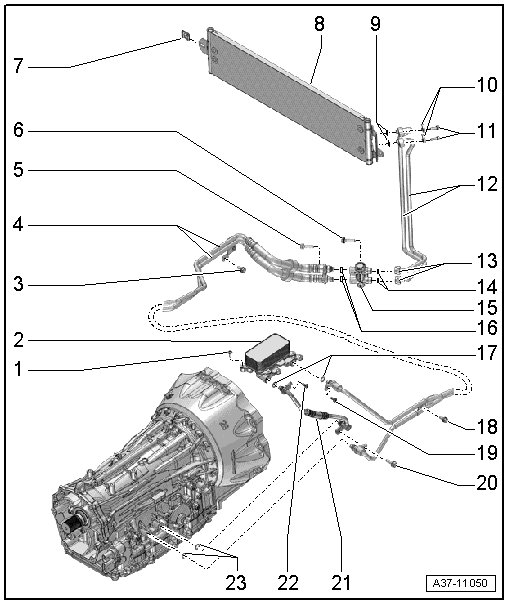

ATF Pipes, ATF Cooler and ATF Pre-Heater Overview

ATF Pipes, ATF Cooler and ATF Pre-Heater Overview






1 Bolt

• 20 Nm

2 ATF Pre-Heater

• Installed depending on the version

• Removing and installing, refer to => [ ATF Pre-Heater ] ATF Pre-Heater

• The cooling oil valve (N471) is installed in front of the ATF pre-heater

3 Bolt

• 8 Nm

4 ATF Pipes

5 Bolt

• 8 Nm

• Insert the pipe all the way by hand before tightening

6 Bolt

• 8 Nm

7 Clip

• Make sure it fits securely

8 ATF Cooler

• Removing and installing, refer to => [ ATF Pipes and ATF Cooler ] ATF Pipes and ATF Cooler

9 O-rings

• Replace

• Coat with ATF

10 Clamping Pins

• For the ATF pipes

11 Bolts

12 ATF Pipes

13 Union Nuts

14 O-rings

• Replace

• Coat with ATF

15 Thermostat

16 O-rings

• Replace

• Coat with ATF

17 O-rings

• Replace

• Coat with ATF

18 Bolt

• 8 Nm

19 Bolt

• 8 Nm

• Insert the pipe all the way by hand before tightening

20 Bolt

• 25 Nm

• Insert the pipe all the way by hand before tightening

21 ATF Pipe

22 Bolt

• 8 Nm

• Insert the pipe all the way by hand before tightening

23 O-ring

• Replace

• Coat with ATF

Mounting ATF Pipes to the ATF Cooler





I - Mounting with Clamping Joint:

- Replace the O-rings and coat them with ATF.

- Insert the ATF pipe all the way into the ATF cooler by hand and then tighten it.

- Tighten the bolts - 1 - to 10 Nm.

II - Mounting with Threaded Connection:

- Replace the O-rings and coat them with ATF.

- Insert the ATF pipe all the way into the ATF cooler by hand and then tighten it.

- Tighten the union nuts - 2 - to 20 Nm.
