Air Injection: Service and Repair
Secondary Air Injection System Overview

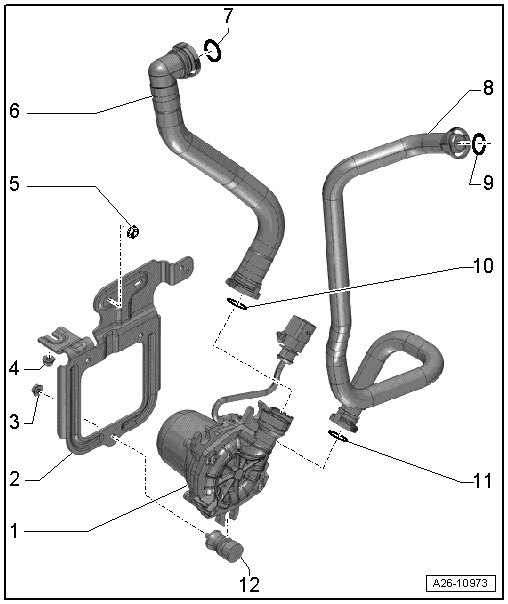

1 Secondary Air Injection (AIR) Pump Motor (V101)
• Installed location: at right front in engine compartment below the longitudinal member
• Removing and installing, refer to => [ Secondary Air Injection (AIR) Pump Motor (V101) ] Service and Repair
• Checking in Guided Functions using a vehicle diagnostic tester
2 Bracket
• For AIR pump motor
3 Nut
• 9 Nm
4 Nut
• 9 Nm
5 Nut
• 9 Nm
6 Hose
• From air filter housing
7 O-ring
• Replace
8 Hose
• To AIR combi-valves
9 O-ring
• Replace
10 O-ring
• Replace
11 O-ring
• Replace
12 Bonded Rubber Bushing
• Quantity: 3

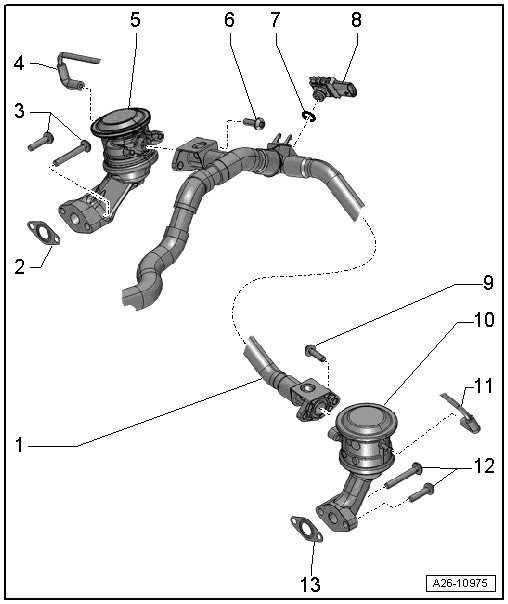

1 Hose
• From the AIR pump motor
2 Gasket
• Replace
3 Bolts
• 9 Nm
4 Vacuum Hose
5 Right AIR Combination Valve
• Check the functionality and for leaks. Refer to => [ Secondary Air Injection Combination Valves, Checking for Function and Leaks ] Secondary Air Injection Combination Valves, Checking For Function and Leaks
• Removing and installing, refer to => [ Secondary Air Injection Right Combination Valve ] Secondary Air Injection Right Combination Valve
6 Bolt
• 9 Nm
7 O-ring
• Replace
8 Secondary Air Injection (AIR) Sensor 1 (G609)
• Removing and installing, refer to => [ Secondary Air Injection (AIR) Sensor 1 (G609) ] Service and Repair
9 Bolt
• 9 Nm
10 Left AIR Combination Valve
• Check the functionality and for leaks. Refer to => [ Secondary Air Injection Combination Valves, Checking for Function and Leaks ] Secondary Air Injection Combination Valves, Checking For Function and Leaks
• Removing and installing, refer to => [ Secondary Air Injection Left Combination Valve ] Secondary Air Injection Left Combination Valve
11 Vacuum Hose
12 Bolts
• 9 Nm
13 Gasket
• Replace
Left Secondary Air Combination Valve Heat Shield - Tightening Specification
- Tighten the heat shield bolts - arrows - - 1 - to 9 Nm.
Right Secondary Air Combination Valve Heat Shield - Tightening Specification
- Tighten the heat shield bolts - arrows - - 1 - to 9 Nm.
