Oil Pump: Service and Repair

Oil Pump

Removing






- Remove the lower oil pan. Refer to => [ Lower Oil Pan ] Lower Oil Pan.

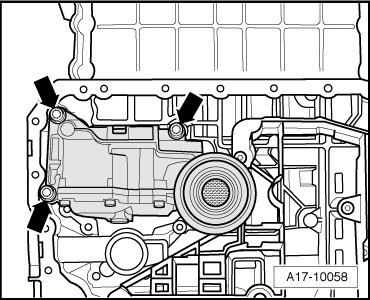

- Remove the bolts - arrows -.

- Remove the oil pump forward from the input shaft.

Installing

Install in reverse order, paying attention to the following:

• For the correct tightening specifications, refer to => [ Upper and Lower Oil Pan Sections, Oil Pump and Oil Cooler Overview ] Upper and Lower Oil Pan Sections, Oil Pump and Oil Cooler Overview.

• Replace the seal and O-ring.

- Install oil pump onto the driveshaft and fasten.

- Install oil pan lower. Refer to => [ Lower Oil Pan ] Lower Oil Pan.

- Fill engine with oil and check oil level.
