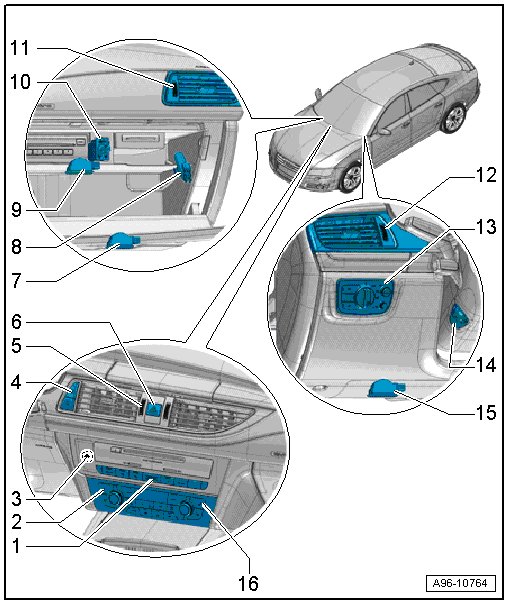

Instrument Panel Lights and Switches Overview
Instrument Panel Lights and Switches Overview
Observe notes on contact corrosion => [ Contact Corrosion ] Service Precautions.
1 Switch Unit
• With Start/Stop mode button (E693) , Parallel parking assistance button (E581) , Parking aid button (E266) , Front passenger airbag disabled indicator lamp (K145) , Rear spoiler switch (E127) , ASR/ESP button (E256).
• Removing and installing, refer to => [ Switch Unit with Start/Stop Mode Button, Parking Aid Button, Front Passenger Airbag -Disabled- Indicator Lamp, Rear Spoiler Adjustment Switch and ASR/ESP Button ] Unit With Start/Stop Mode Button, Parking Aid Button, Front Passenger Airbag-Disabled-Indicator Lamp, Rear Spoiler Adjustment.
2 Left Seat Heating Button (E653)
• Integrated in the Climatronic control module (J255). Cannot be replaced separately if faulty.
• For replacing the Climatronic control module (J255)
3 Anti-Theft Immobilizer Reading Coil (D2)
• Overview, refer to => [ Steering Column Electronics Control Module (J527) and Electronic Ignition Lock Overview ] Steering Column Electronics Control Module (J527) and Electronic Ignition Lock Overview.
4 Switch Unit
• With Front display open/close button (E462) , Display unit button (E506).
• Removing and installing, refer to => [ Front Display Open/Close and Display Unit Button Switch Unit (E462)/(E506) ] Front Display Open/Close and Display Unit Button Switch Unit (E462)/(E506).
5 Center Instrument Panel Vent
• Vehicles with left and right Center instrument panel vent illumination bulb (L68).
• Cannot be replaced separately if faulty.
6 Emergency Flasher Button (E229)
• Removing and installing, refer to => [ Emergency Flasher Button (E229) ] Emergency Flasher Button (E229).
7 Right Front Footwell Illumination Bulb (L152)
• Removing and installing, refer to => [ Front Footwell Illumination Bulb ] Front Footwell Illumination Bulb.
8 Glove Compartment Lamp Switch (E26)
• Removing and installing, refer to => [ Glove Compartment Lamp Switch (E26) ] Glove Compartment Lamp Switch (E26).
9 Glove Compartment Light (W6)
• 12V, 5 W
• Removing and installing, refer to => [ Glove Compartment Lamp ] Glove Compartment Lamp.
10 Valet Parking Lock Button/Front Passenger Airbag Deactivation Key Switch
• Equipment level
• Valet Parking Lock button (E536) , removing and installing, refer to => [ Valet Parking Lock Button (E536) ] Valet Parking Lock Button (E536).
11 Right Instrument Panel Vent Illumination Bulb (L69)
• Equipment level
• Cannot be replaced separately if faulty.
12 Left Instrument Panel Vent Illumination Bulb (L67)
• Equipment level
• Cannot be replaced separately if faulty.
13 Headlamp Switch (E1)
• With the Instrument panel illumination dimmer switch (E20).
• With Rear fog lamp button (E314) , Fog lamp button (E315) , Infrared camera button (E680).
• Removing and installing, refer to => [ Light Switch (E1) ] Light Switch (E1).
14 Steering Column Adjustment Switch (E167)
• With Steering wheel heating button (E522).
• Removing and installing, refer to => [ Steering Column Adjustment Switch (E167) and Steering Wheel Heating Button ] Steering Column Adjustment Switch (E167) and Steering Wheel Heating Button.
15 Left Front Footwell Illumination (L151)
• Removing and installing, refer to => [ Front Footwell Illumination Bulb ] Front Footwell Illumination Bulb.
16 Right Seat Heating Button (E654)
• Integrated in the Climatronic control module (J255). Cannot be replaced separately if faulty.
• For replacing the Climatronic control module (J255)

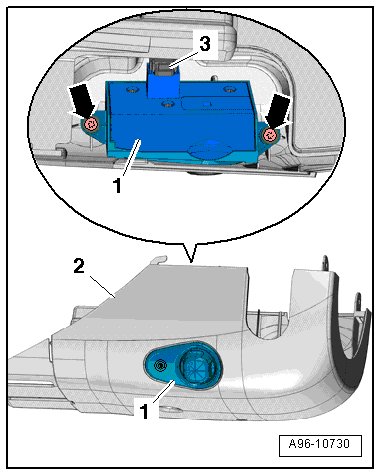

Tightening Specification Steering column adjustment switch (E167) / Steering wheel heating button (E522)
- Tighten the bolts - arrows - to 1.5 Nm.
