HID Headlamp Bulbs

HID Headlamp Bulbs

Risk of death due to high voltage, injury risk and environmental hazard.

Removal






- Remove headlamp housings. Refer to => [ Headlamp Housing ] Headlamp Housing.

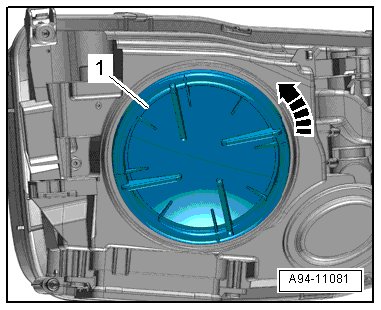

- Turn the housing cover - 1 - counter-clockwise - arrow - and remove it from the headlamp housing.

- Disconnect the electrical connector - 1 -.






- Turn the HID bulb - 2 - counter-clockwise - arrow - and remove it from the housing.

Installation

• Tightening specification, refer to => [ HID Headlamps Overview ] HID Headlamps Overview.

Install in reverse order of removal. Note the following:

- Connect the connector and insert the new HID bulb in the housing. Do not touch the glass bulb with bare hands.

• Installation location: The electrical connection faces down.

- Close the housing cover by rotating it clockwise.

- Install the headlamp housing. Refer to => [ Headlamp Housing ] Headlamp Housing.
