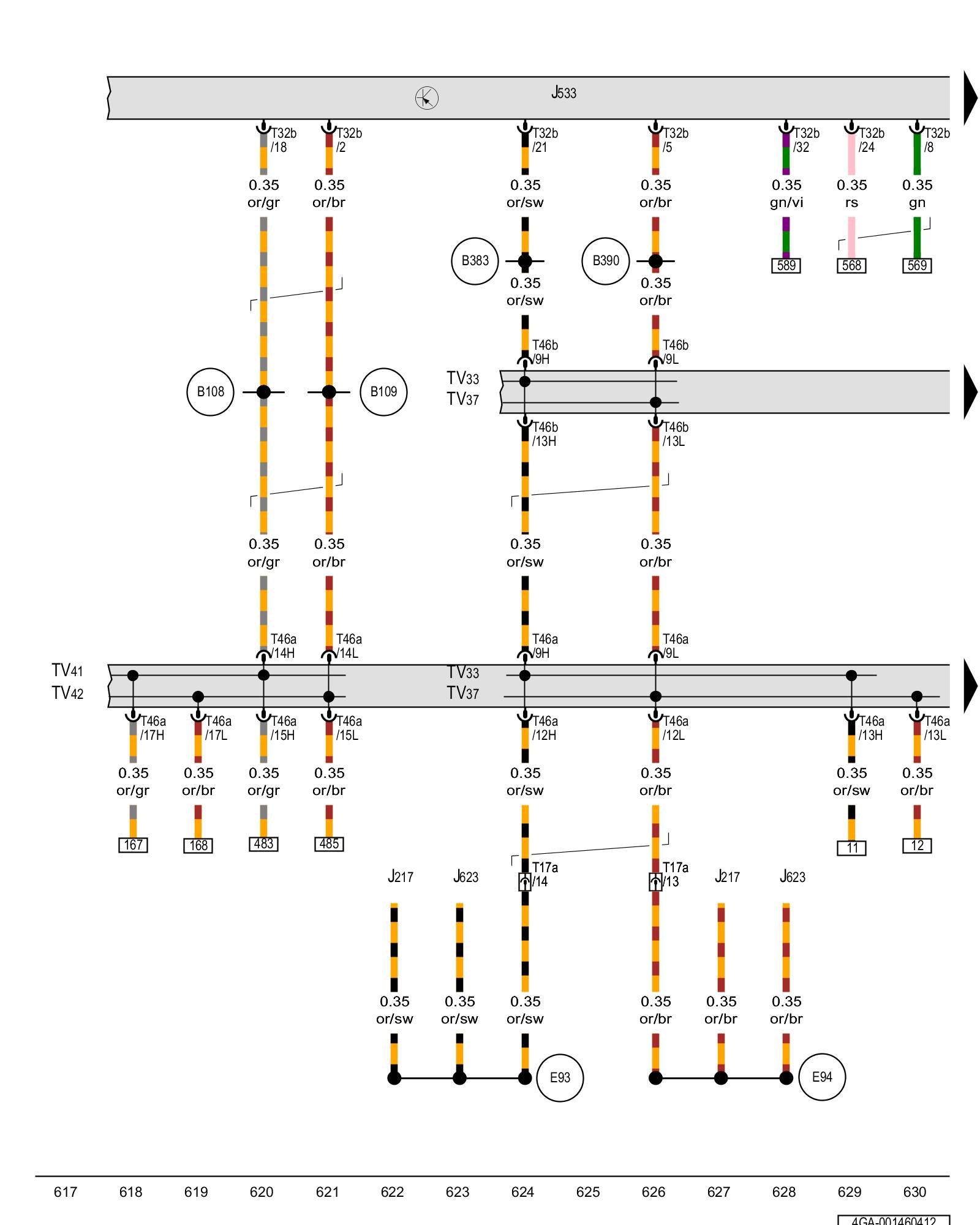

Diagram 1/46 (Tracks 617-630)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Data bus on board diagnostic interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J217 - Transmission control module Locations Locations

J533 - Data bus on board diagnostic interface Locations

J623 - Engine control module Locations

T17a - 17-pin connector, Left plenum chamber E-box connector station Locations

T32b - 32-pin connector Locations

T46a - 46-pin connector Locations

T46b - 46-pin connector

TV33 - Powertrain CAN bus high wire junction

TV37 - Powertrain CAN bus low wire junction

TV41 - Extended CAN bus high wire junction

TV42 - Extended CAN bus low wire junction

(B108) - CAN bus extended high connection 1 (in main wiring harness)

(B109) - CAN bus extended low connection 1 (in main wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(E93) - CAN bus high connection 1 (in engine wiring harness)

(E94) - CAN bus low connection 1 (in engine wiring harness)
