Fender

Fender

Removing






- Remove end plate. Refer to => [ End Plate ] End Plate.

- Remove the front bumper cover. Refer to => [ Front Bumper Cover ] Front Bumper Cover.

- Remove the front bumper cover mount. Refer to => [ Front Bumper Cover Mount ] Front Bumper Cover Mount.

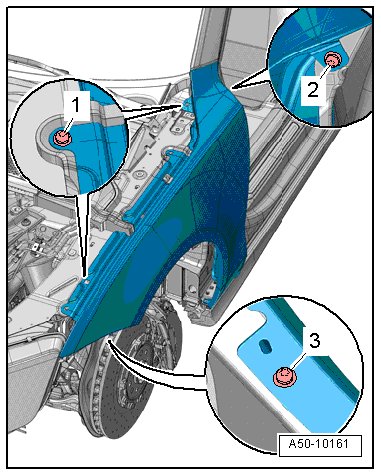

- Remove bolts - 1, 2 and 3 -.

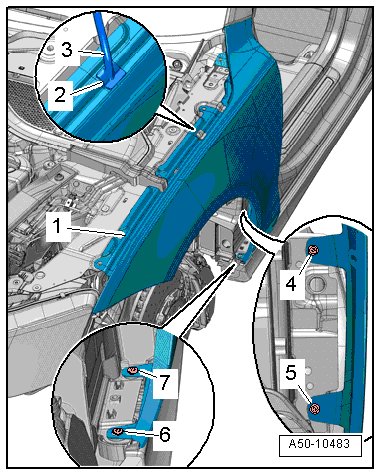

- Remove the bolts - 4 through 7 -.






- Remove the fender - 1 -.

- Left side: open the clamp and and remove the windshield washer fluid hose from the windshield washer pump.

- Remove the windshield washer fluid hose and grommet - 3 - from the fender.

Installing






• For the correct tightening specifications, refer to => [ Fender Assembly Overview ] Fender Assembly Overview.

Installation is reverse of removal, but note the following:

- Install the seal - 1 - in the fender near the center bolt - 2 - as illustrated.

• Push the tab - arrow - between the fender flange and the fender.

- Install the seal - 3 - between the fender flange and the fender as illustrated.

- Install the front bumper cover mount. Refer to => [ Front Bumper Cover Mount ] Front Bumper Cover Mount.

- Install the end plate. Refer to => [ End Plate ] End Plate.
