Backrest Hinge Trim

Backrest Hinge Trim

Removing






- Remove the sill-side trim or tunnel-side trim:

• => [ Sill Side Trim with Front Trim ] Sill Side Trim With Front Trim.

• => [ Tunnel Side Trim ] Tunnel Side Trim.

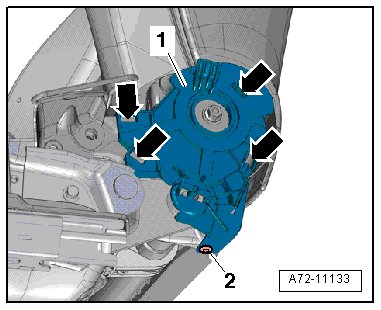

- Remove the expanding rivet from the sill-side trim - 2 -.

- Release catches - arrows - using a screwdriver, remove backrest hinge trim - 1 -.

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Backrest Assembly Overview ] Backrest Assembly Overview.
