Seat Cover and Seat Cushion For Multi-Contour Seat Assembly Overview

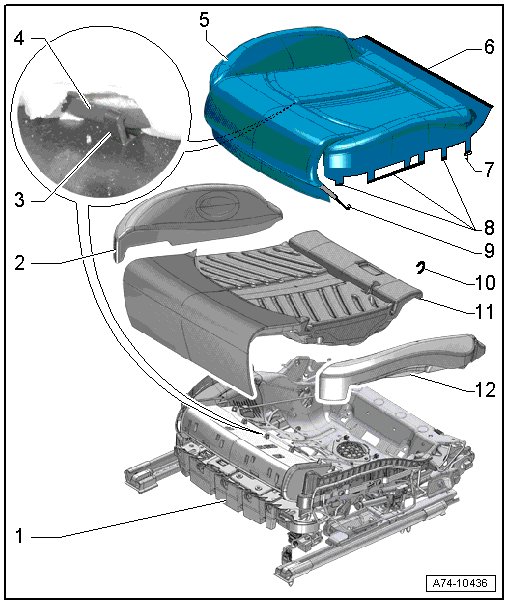

Seat Cover and Seat Cushion for Multi-contour Seat Assembly Overview






1 Seat pan

• With a seat depth adjuster

2 Seat bolster padding

• Removing and Installing, refer to => [ Seat Cover with Seat Cushion for Multi-contour Seat ] Seat Cover With Seat Cushion For Multi-Contour Seat

3 Catches

• On the seat depth adjuster cover

• Quantity: 4

4 Retaining strip

• Sewn into seat cover

• For attaching the seat cover and seat cushion to seat depth adjuster cover

5 Seat cover

• Seat Cover and Cushion, Removing and Installing, refer to => [ Seat Cover with Seat Cushion for Multi-contour Seat ] Seat Cover With Seat Cushion For Multi-Contour Seat

• Seat Cover and Cushion, Removing and Installing, refer to => [ Seat Cover and Seat Cushion for Multi-contour Seat, Separating and Connecting ] Seat Cover and Seat Cushion For Multi-Contour Seat, Separating and Connecting

• For the correct allocation, refer to Parts Catalog

• Make sure there are no folds after installing

6 Molding

• Sewn into seat cover

• For attaching the rear seat cover to the seat pan upper frame

• Make sure it fits correctly in the upper seat frame

7 Tab

• With hooks

• Sewn into seat cover

• For engaging seat cover on the lower seat frame

8 Molding

• Sewn into seat cover

• For attaching the seat cover on the side of the upper seat frame

• Make sure it fits correctly in the upper seat frame

9 Rubber strap

• Quantity: 2

• Inserted in the pocket of the seat cover

• for engaging on the seat pan upper frame

10 Cushion clip

• For attachment of seat cover to seat cushion

• Replacing

• Install at the same location with upholstery clip pliers (V.A.G 1634)

11 Seat cushion

• Seat Cover and Cushion, Removing and Installing, refer to => [ Seat Cover with Seat Cushion for Multi-contour Seat ] Seat Cover With Seat Cushion For Multi-Contour Seat

• Seat Cover and Cushion, Removing and Installing, refer to => [ Seat Cover and Seat Cushion for Multi-contour Seat, Separating and Connecting ] Seat Cover and Seat Cushion For Multi-Contour Seat, Separating and Connecting

• For the correct allocation, refer to => Parts Catalog

12 Seat bolster padding

• Removing and Installing, refer to => [ Seat Cover with Seat Cushion for Multi-contour Seat ] Seat Cover With Seat Cushion For Multi-Contour Seat
